RAK Wireless · LoRa · WisGate · Developer Gateway · RAK7246G LoRaWAN® Developer Gateway 868 MHz with GPS

RAK Wireless WisGate Developer RAK7246G

Developer Gateway 868 MHz with GPS

overview

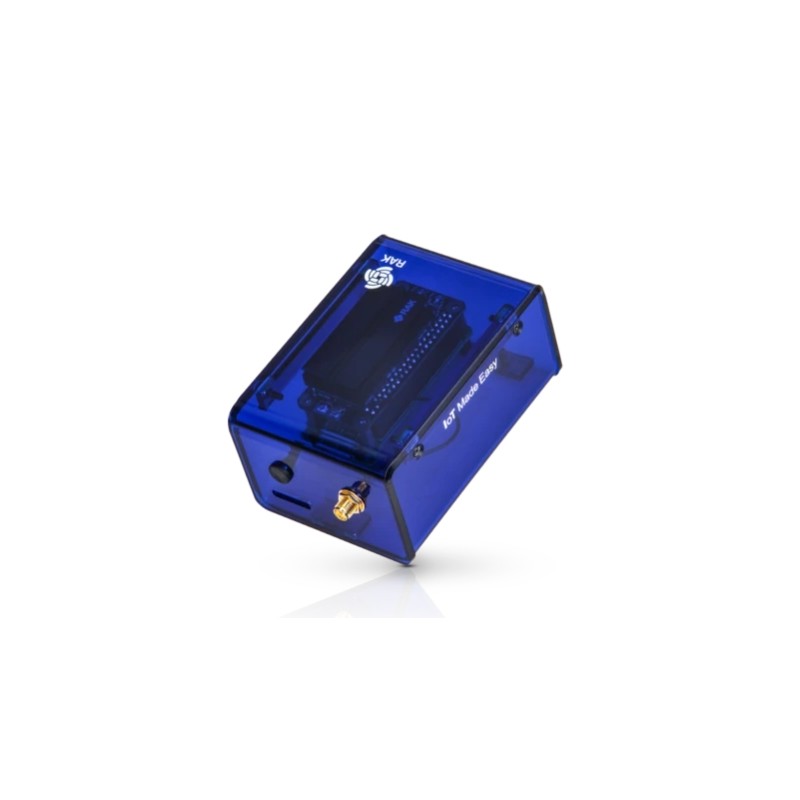

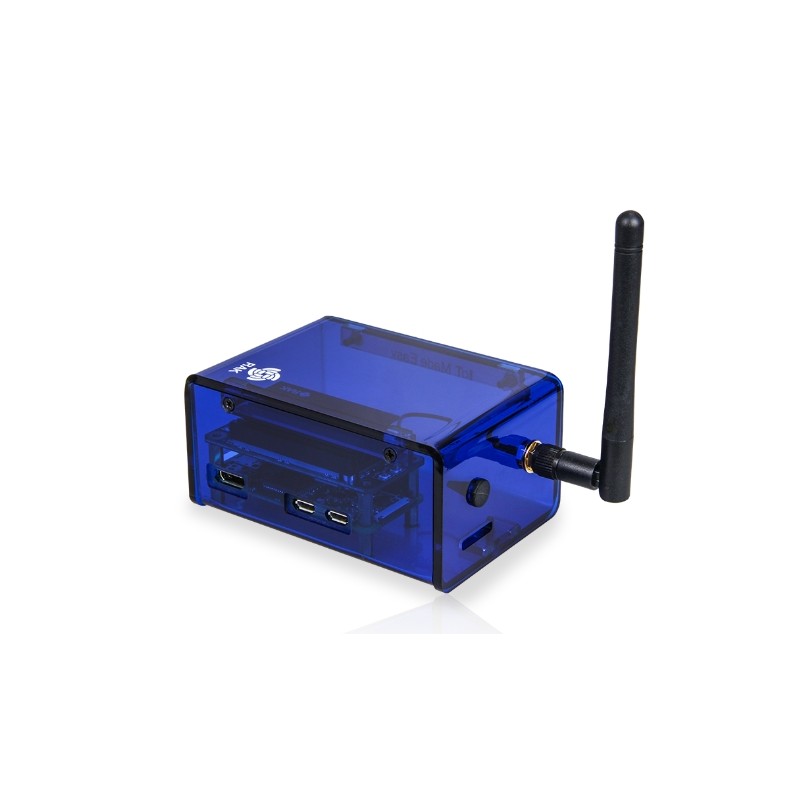

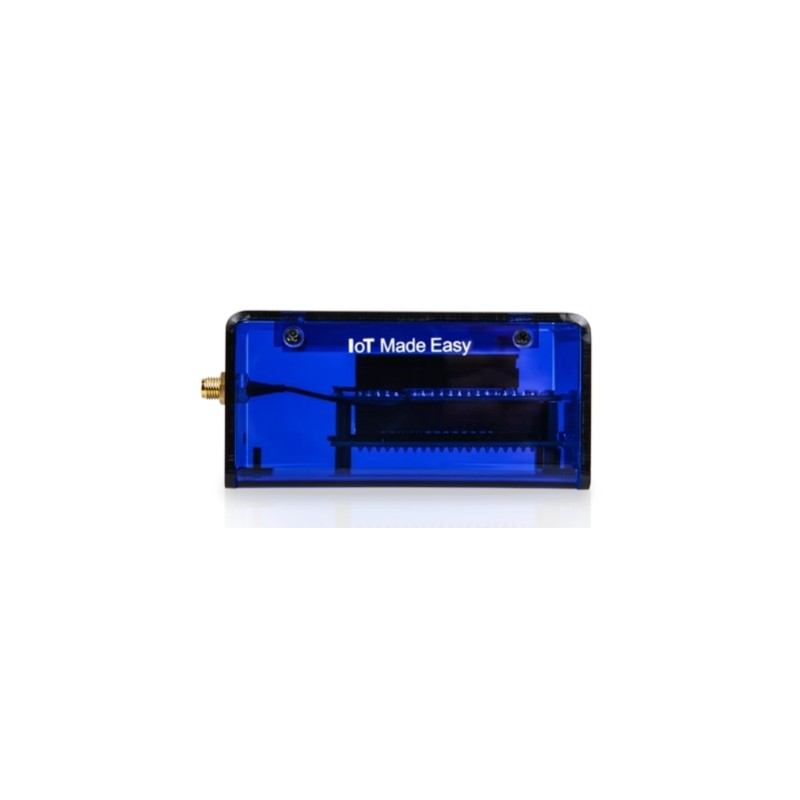

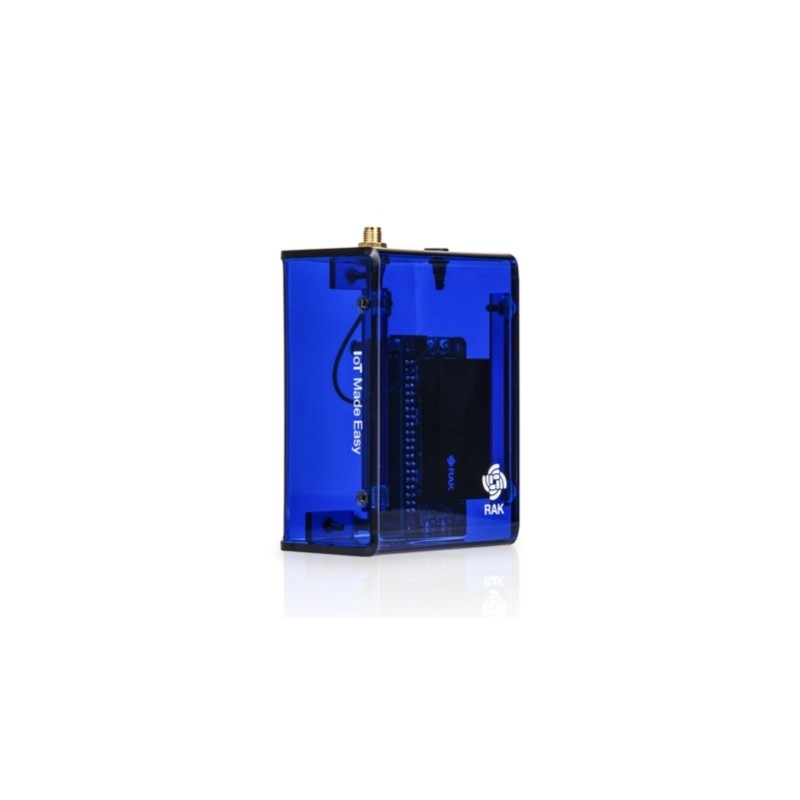

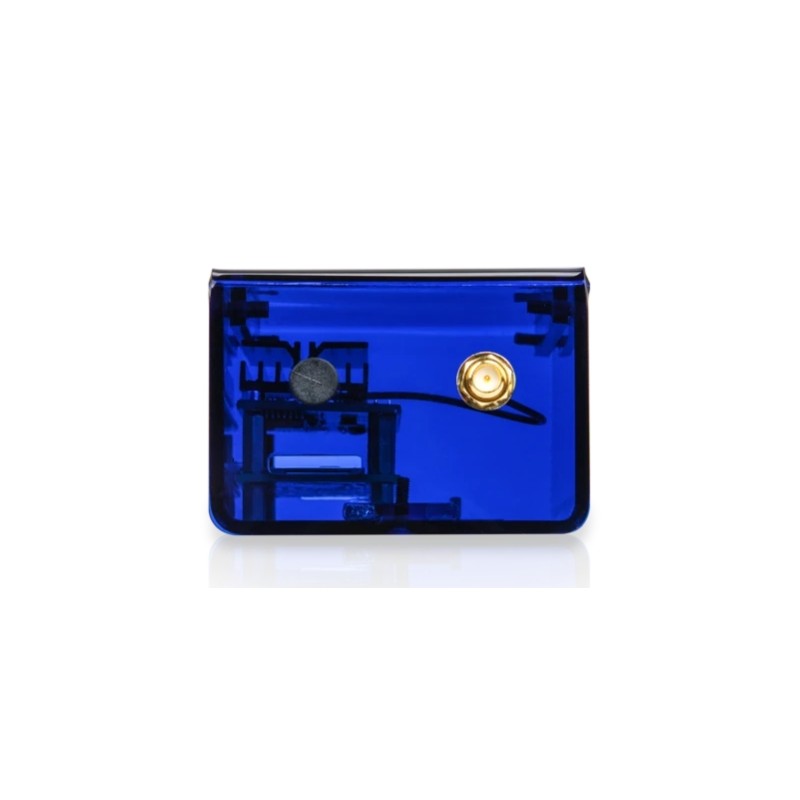

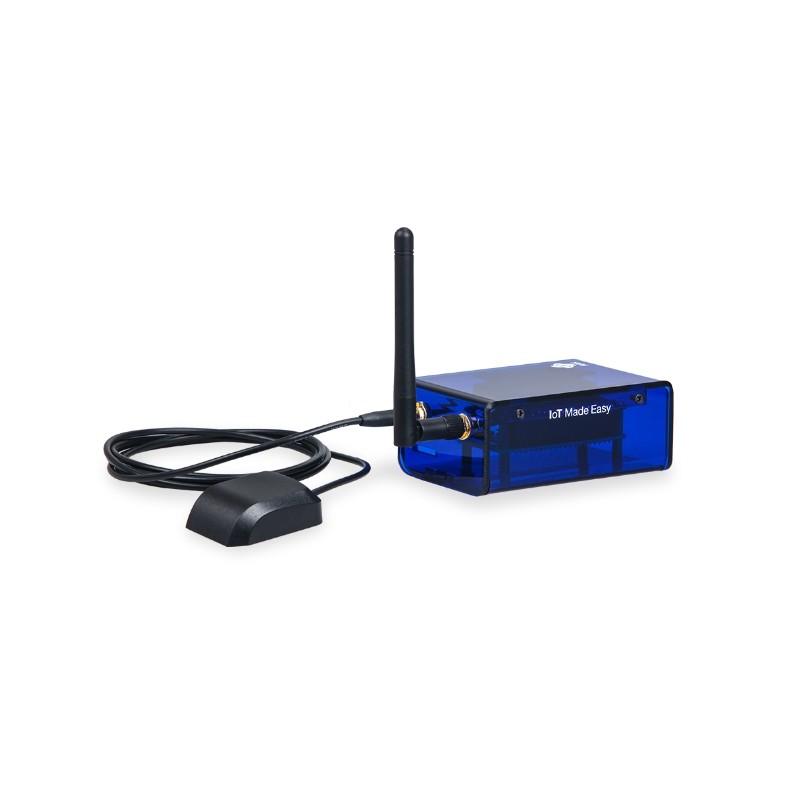

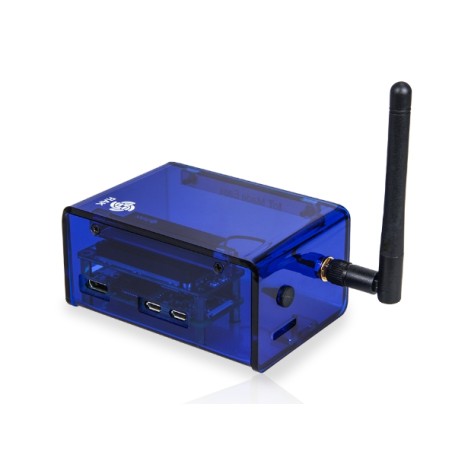

The RAK7246G is a LoRaWAN™ Developer Gateway with GPS function. It is a device consisting of a RAK2246 Pi HAT LoRaWAN™ Concentrator module and a Raspberry Pi Zero W.868 MHz version with GPSThe RAK2246 Pi HAT is based on a Semtech SX1308 chip, which enables simultaneous reception over 8 LoRa channels covering the entire international high frequency LoRaWAN™ space.The RAK7246G LoRaWAN™ Developer Gateway is an ideal choice for prototype design, concept verification and demonstrations, development evaluation and other scenarios. It is developer-friendly due to its minimalist design that reduces costs and allows easy access to the internals. It is easy to set up, making it a good choice for both experienced and novice LoRa specialists.

Characteristics

• With SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN® Gateway
• The pre-installed radiator guarantees stable thermal performance
• Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz
• Covers the entire LoRa high frequency band range: RU864, IN865, EU868, US915, AU915, KR920, AS923
• Power supply 5V / 2.5A (power adapter sold separately).

scope of delivery

• 1x WisGate Developer D0 (RAK2246 and Raspberry Pi Zero W inside)
• 1x LoRa antenna
• 1x 16GB TF card with pre-installed firmware
• 1x USB cable (You can use your own power adapter, if you don't have one, you can add this power adapter to the shopping cart)

Link to data sheet

RAK7246G WisGate Developer D0 Gateway Datasheet | RAKwireless Documentation Center
