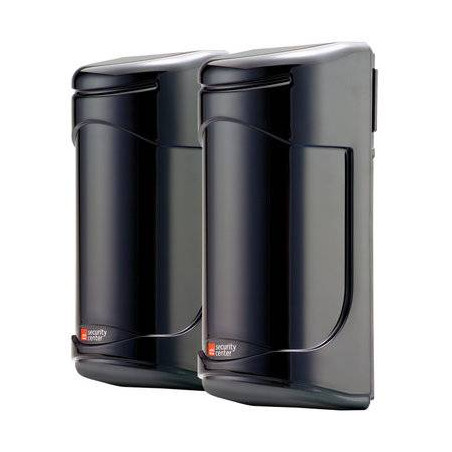

IR light barrier 60m Profiline
IR light barrier 60m Profiline
This innovative Profiline infrared light barrier detects at a distance of 120m indoors and 60m outdoors. Dual light beams and sabotage monitoring of the transmitter and receiver ensure safe functionality. A special plus: Thanks to the horizontal and vertical alignment of the transmitter and receiver, adjustment via laser beam and LED display, installation is quick and easy.
Product Highlights:
| High monitoring range |
| pulsed dual light beams |
| Tamper detection of transmitter and receiver via cover contact |
| Can be used outdoors: IP55 |
Technical data:
| Detection range (indoor/outdoor) | 60m/ 120m |
| Power supply | 10V - 30V DC (without polarity) |
| Power consumption | Tx + Rx: 65mA |
| Response/interruption time | 50 - 700ms |
| Alarm output | Relay (NO/NC) 120V AC/ 1 A |
| Sabotage contact | NC contact |
| Max. ambient light intensity | Light sources < 10000 lux, sunlight < 30000 lux |
| Laser | Wavelength 650 nm, laser class 3a |
| operating temperatur | -25 °C to 55 °C |
| Protection class | IP55 |
| Dimensions (WxHxD) | 173x74x72mm |
