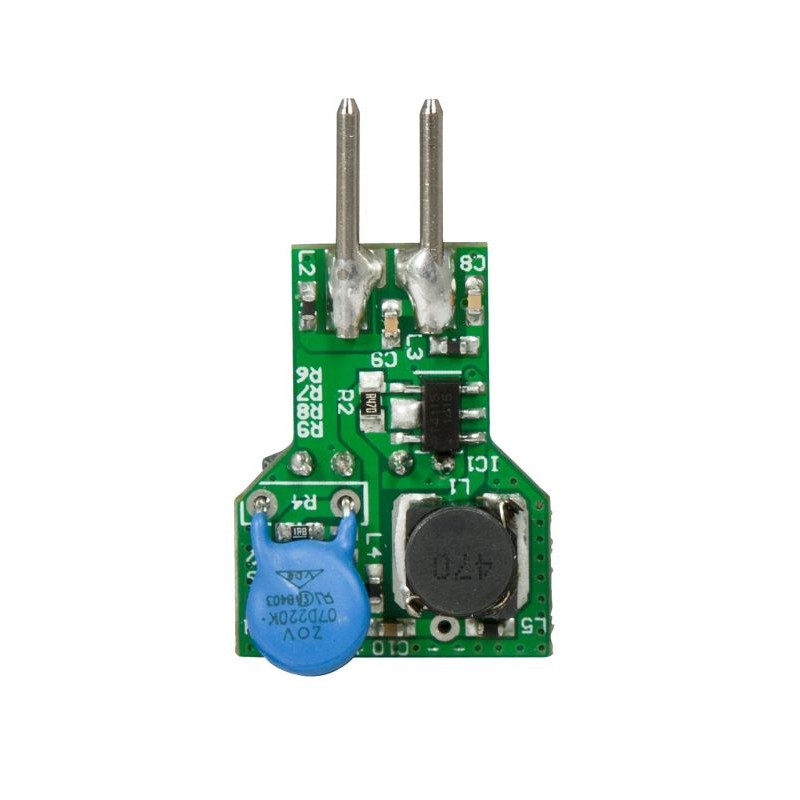

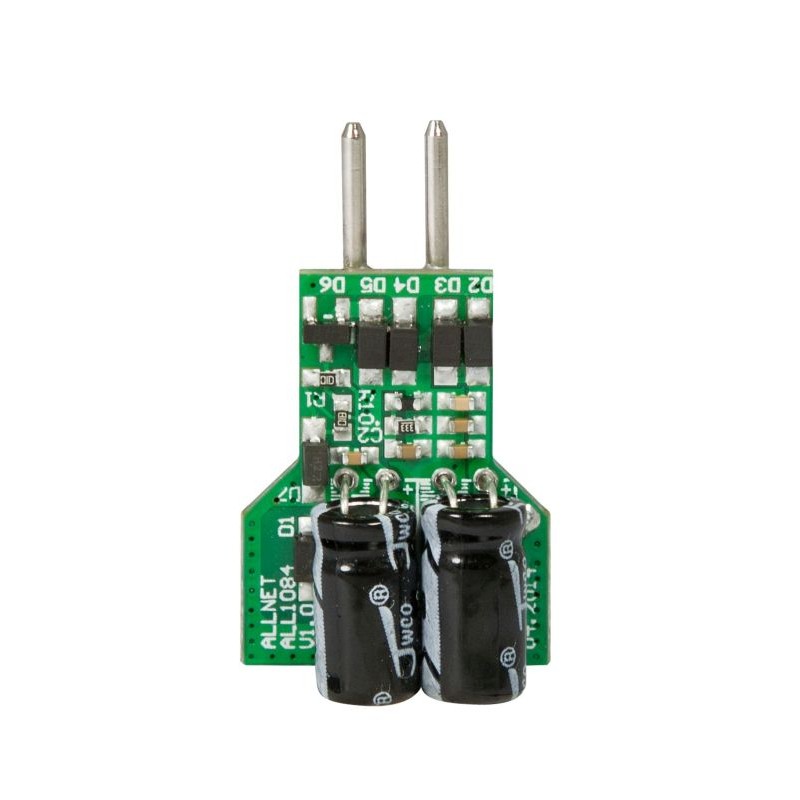

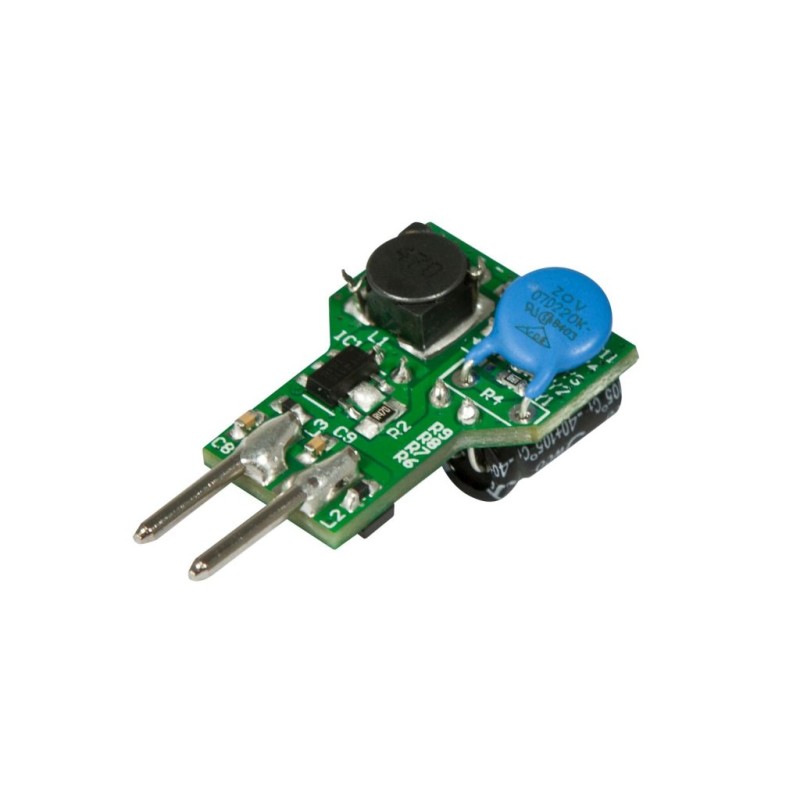

Synergy 21 Power Supply - CC Driver ALL1084
Synergy 21 Power Supply - CC Driver ALL1084
GX5.3 power supply 1-9Watt, adjustable in 16 steps
Input: 12Vac / 12Vdc
Input range: 8-14Vac / 8-18Vdc
Output current: 210-1100mA (adjustable in 16 steps)
Constant current source (CC)
Output voltage range: < input voltage
Temperature range: -25 to 75°C
Efficiency: 77-85%
Output power is reduced above 75°C
extremely low EMI interference
EMC: EN55012/55022 Class B
For unregulated and regulated switching power supplies as well as conventional wound transformers
Further technical details can be found in the data sheet.
