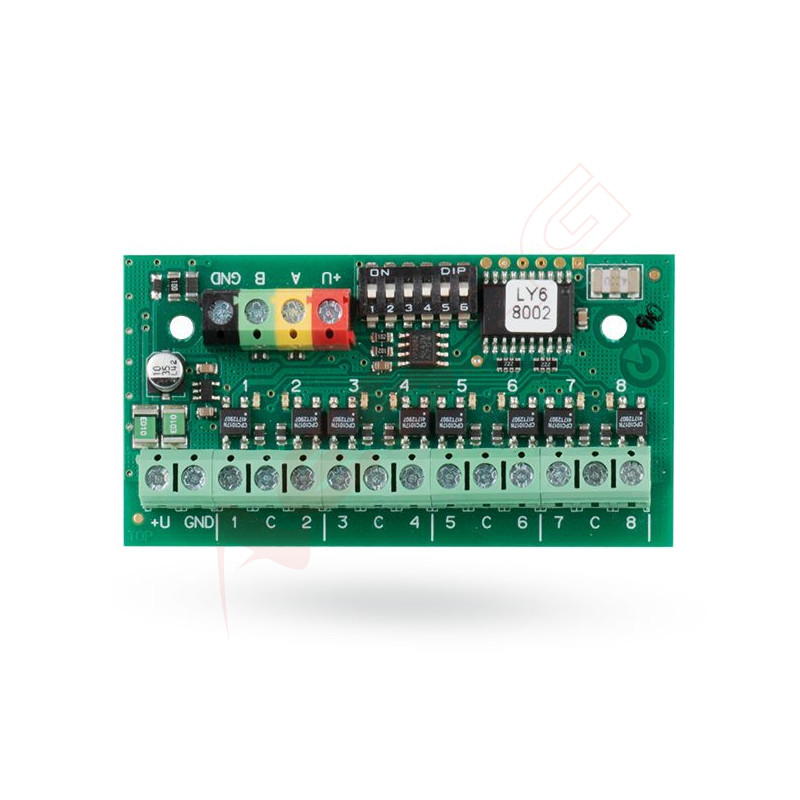

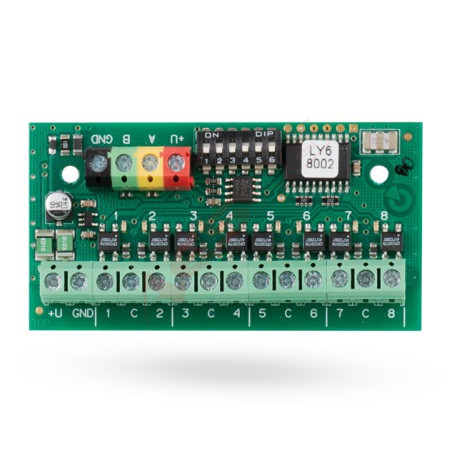

JABLOTRON 100 - Ausgangsmodul, 8-Kanal (BUS)
The Jablotron BUS output module JB-118N has 8 switchable control outputs which can be assigned to the PG outputs via DIP switches.
JABLOTRON 100 - Ausgangsmodul, 8-Kanal (BUS)
The BUS output module has 8 switchable control outputs that can be assigned to the PG outputs via DIP switches.
With these control outputs, the JABLOTRON 100/100+ alarm system can implement various functions and control commands, e.g. controlling roller shutters, garage door openers, etc.
It is designed for mounting in a multi-purpose box of type JA-19xPL or on a DIN rail. The outputs are separated from the bus. It is set using the DIP switch.
It is not addressable (does not occupy a position in the security system).
Product Highlights:
- For the Jablotron 100+ system
- Successor to the JA-118N
- 8 outputs - freely programmable
- Outputs double insulated / output load 100 mA
- Setting with the DIP switch
- Installation in the multi-purpose box JA-190PL
Technical data: - does not occupy a position in the JABLOTRON 100 alarm system
- Power supply: via the central unit BUS 12 V
Technical data:
- Power supply: from the central bus 12 V (9…15 V)
- Quiescent current consumption when doubling: 5 mA
- Quiescent current consumption when doubled: 10 mA
- Power consumption for cable selection: 10 mA
- Safety level: 2 according to EN 50131-1, EN 50131-3
- Operating environment: Class II. Indoor general (-10 to +40°C), according to EN 50131-1
- EMC: EN 50130-4, EN 55022
