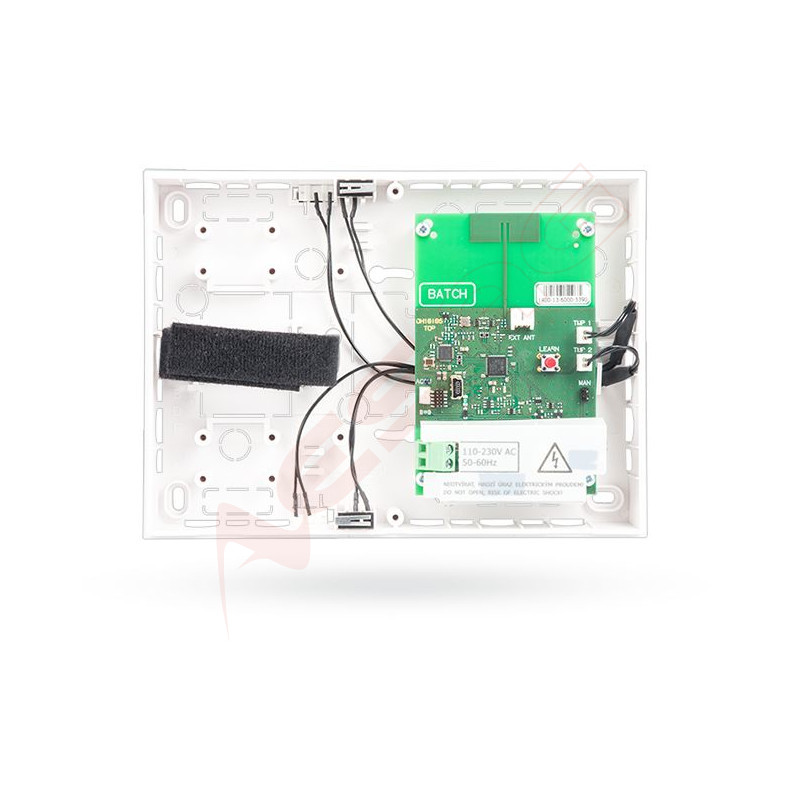

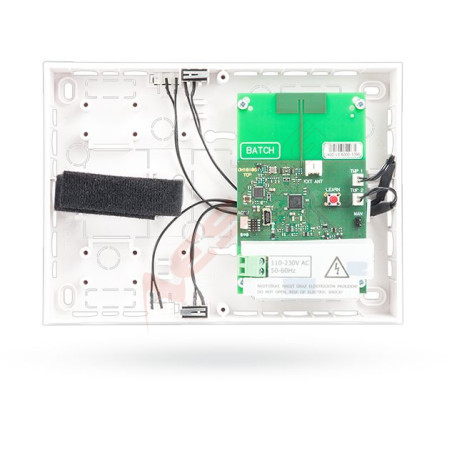

JABLOTRON 100 - Funk-Repeater
Intended for extending the communication distance and increasing the reliability of transmission in large installations. Amplifies the signal of all one-way components of the JABLOTRON 100+
JABLOTRON 100 - Funk-Repeater
Intended for extending the communication distance and increasing the reliability of transmission in large installations. Amplifies the signal of all one-way components of the JABLOTRON 100+
Product Highlights:
- Allows you to select the components whose signal you want to amplify
- Direct power supply via power pack, backup via battery
Supported reporters:
- JA-15x series detectors
- JA-18x series detectors
- Remote controls JA-154J MS, JA-152J MS, JA-164J, JA-162J
- PG modules JA-150N, JA-151N
Technical data
| Power supply | AC 110 – 230 V/50 – 60 Hz, protection class II. |
|---|---|
| Consumption typ./max. | about 0.5 W/1 W (at AC 230 V) |
| Galvanically isolated | (Test voltage 4 kV) |
| Communication frequency | 868.1MHz |
| Maximum radio frequency power | 25mW |
| antenna | internal |
| Compatible with | Radio module FW JA-11xR LR6x613+ Central FW LJ(MD)60420+ F-Link 1.4.0+ |
| Backup battery 4.8 V(BAT-4V8-N900) | 900mAh |
| Backup battery type | NiCd |
| Low battery detection | ≤ 4.2V |
| Protection against discharge | ≤ 4.0V |
| Voltage range for external power supply | DC 4.5-8.0V ±10%/200mA |
| Typical battery life | about 4 years |
| Motherboard dimensions | 112x66x12mm |
| Dimensions JA-194PL | 132x182x45mm |
| Weight of motherboard, backup battery, housing | 363g |
| Classification | Safety class 2, ACE type B |
| Corresponds | EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50130-6 |
| Vicinity | II. Indoor spaces in general (according to EN 50131-1) |
| operating temperatur | -10 °C to +40 °C |
| Also corresponds | EN 300 220, EN 50130-4, EN 55022, EN 60950-1 |
| Operation according to | ERC-REC70-03 |
| Certification Authority | Trezor Test sro |
