HikVision - Wireless Outdoor Curtain Detector, Dualtech

Product description – DS-PDC10DM-EG2-WE

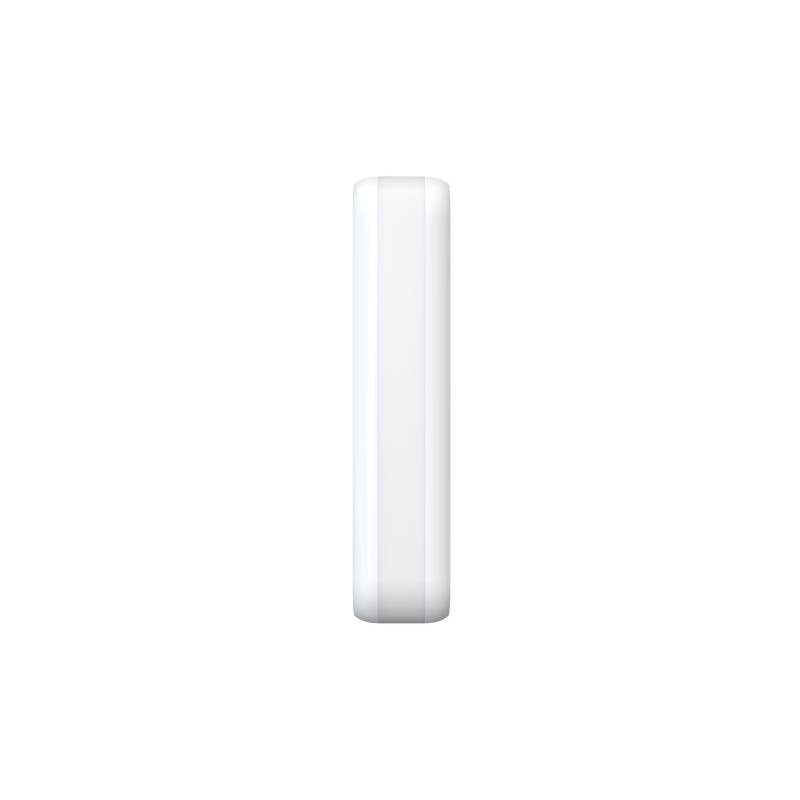

The DS-PDC10DM-EG2-WE is a wireless dual-tech AM curtain detector specifically designed for securing windows, doors, and other entryways. Its slim design makes it ideal for discreet installation on window frames and ensures reliable motion detection.

Main features:

• Dual-technology detection: Combination of passive infrared (PIR) and 24 GHz microwave technology to reduce false alarms and provide more accurate motion detection.

• Active IR anti-masking: Detects and reports attempts to block or obscure the detector.

• Directional detection: Supports discrimination of movement direction for more targeted alarm triggering.

• Weather resistance: Protection class IP65 , suitable for indoor and outdoor use.

• Easy installation: User-friendly design with flexible login methods.

• Interference-free transmission: Frequency hopping technology protects against signal interference and ensures stable communication.

Technical data:

• Detection method: Combination of passive infrared (PIR) and 24 GHz microwave sensor

• Detection range:

  • Wall mounting: Up to 10 meters

  • Ceiling mounting: Up to 5 meters

• Detection angle: 5°

• Detection zones: 32

• Sensitivity: Automatic adjustment, pet-immune up to 12 kg when wall-mounted

• White light filter: Up to 6500 lux

• Tamper protection: front and rear security

• Battery life: Up to 5 years with an average of 10 triggers per day

• Power supply: 2 × CR123A batteries

• Operating temperature: -25 °C to 60 °C

• Dimensions: 29.2 mm × 134.4 mm × 39.5 mm

• Weight: 120 g

Assembly and application:

The detector can be installed on walls or ceilings at a height of 2 to 3.5 meters . Its slim design allows for unobtrusive placement, especially near window frames. An L-shaped mounting adapter is included to meet various installation requirements.

With its advanced features and robust design, the DS-PDC10DM-EG2-WE offers a reliable solution for burglary protection and effectively contributes to the protection of buildings.
