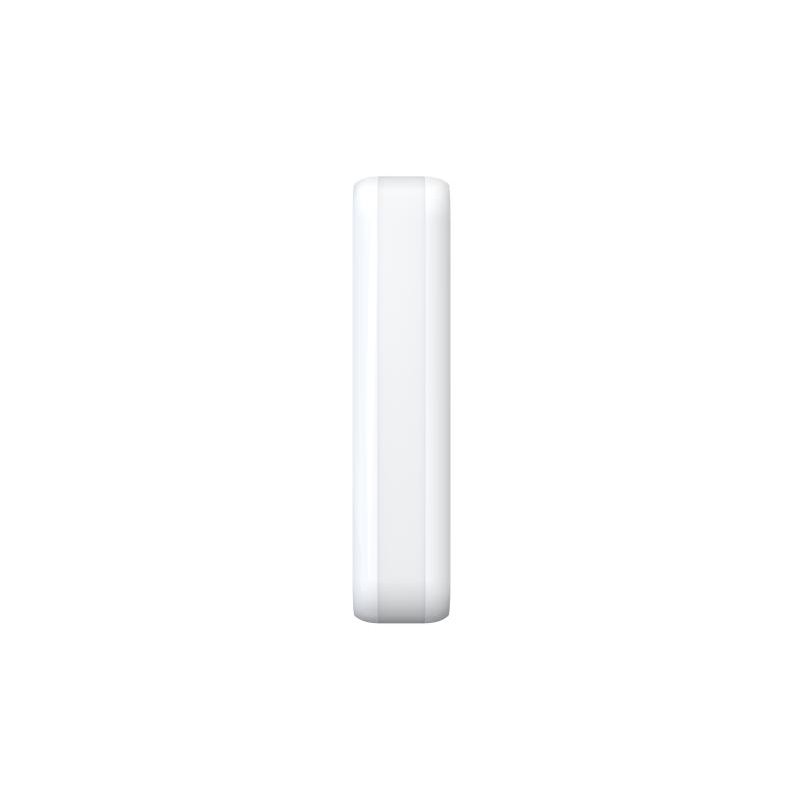

HikVision - Wireless Outdoor Curtain Detector

Product description – DS-PDC10AM-EG2-WE

The DS-PDC10AM-EG2-WE is a wireless PIR-AM curtain detector specifically designed for securing windows, doors, and other entryways. Its slim design makes it ideal for installation on window frames and provides reliable motion detection.

Main features:

• Slim design: Ideal for window frames and door areas.

• Weather resistance: With protection class IP65 , also suitable for outdoor use.

• Active IR anti-masking: Detects and reports attempts to cover or block the detector.

• Directional detection: Distinguishes the direction of movement for more precise alarm triggering.

• Easy installation: Various login methods and user-friendly installation.

• Interference-free communication: Frequency hopping technology protects against signal interference and ensures stable transmission.

Technical data:

• Detection method: Passive infrared sensor (PIR)

• Detection range:

  • Wall mounting: 10 meters

  • Ceiling mounting: 5 meters

• Detection angle: 5°

• Detection zones: 32

• Detection speed: 0.3 to 2 m/s

• Sensitivity: Automatic adjustment, pet-immune up to 12 kg (when wall mounted)

• White light filter: Up to 6500 lux

• Digital temperature compensation: Supported

• Tamper protection: front and rear security

• Battery life: Up to 5 years (at 20 triggers per day)

• Power supply: 2 × CR123A batteries

• Operating temperature: -25 °C to 60 °C

• Dimensions: 29.2 mm × 134.4 mm × 39.5 mm

• Weight: 118.5 g

Assembly and application:

The detector can be installed on walls or ceilings at a height of 2 to 3.5 meters and is suitable for both indoor and outdoor use. An L-shaped adapter allows for flexible mounting options.

With its advanced features and robust design, the DS-PDC10AM-EG2-WE offers a reliable solution for burglary protection and building security.
