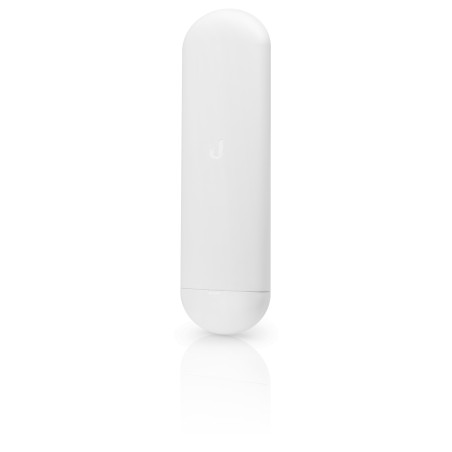

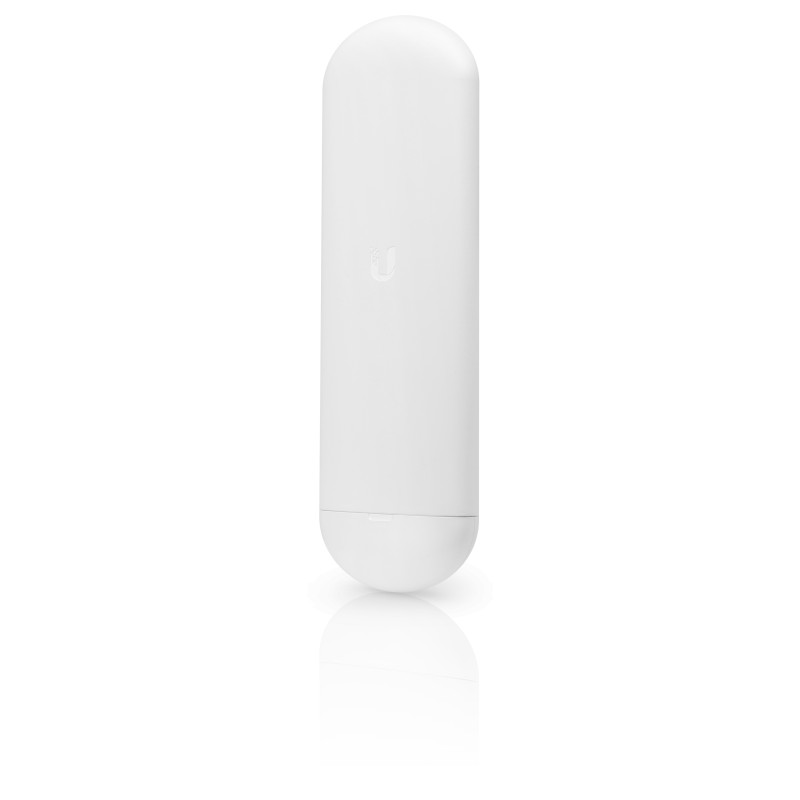

Ubiquiti NanoStation 5AC, NS-5AC
Ubiquiti NanoStation 5AC, NS-5AC
Ubiquiti NanoStation 5AC, NS-5AC
UISP-supported Wi-Fi radio for point-to-point and customer premises applications.
5 GHz, 15+ km connection range
450+ Mbps throughput

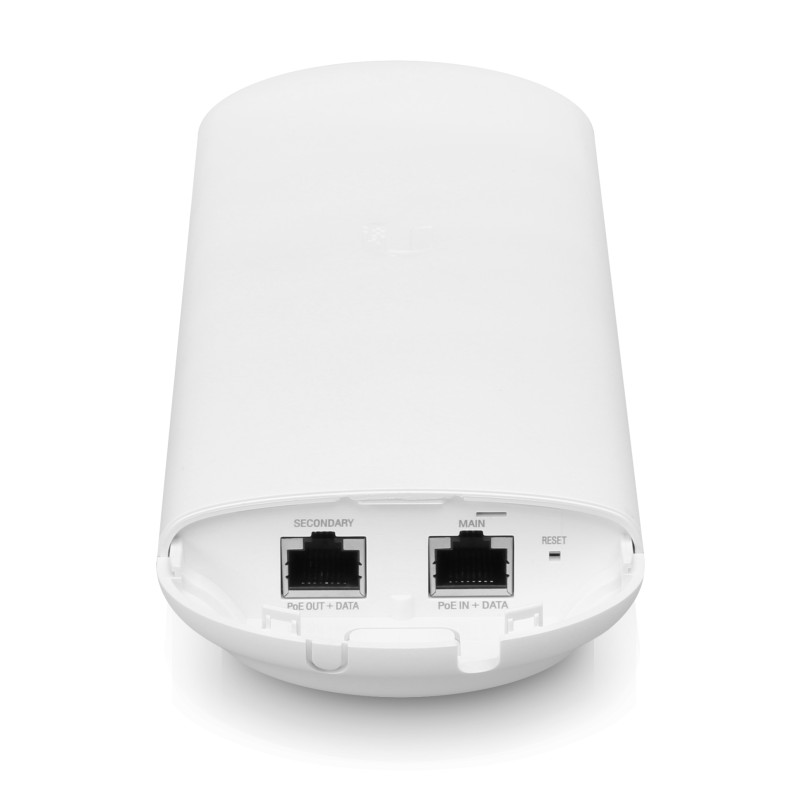

Secondary LAN with PoE-Out support
Special spectral analysis radio
Special WLAN management radio
Technical specifications
| Mechanically | |
|---|---|
| Mass | Without bracket: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") With bracket: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2") |
| Weight | 233 g (8.2 oz) |
| Housing material | UV-resistant plastic |

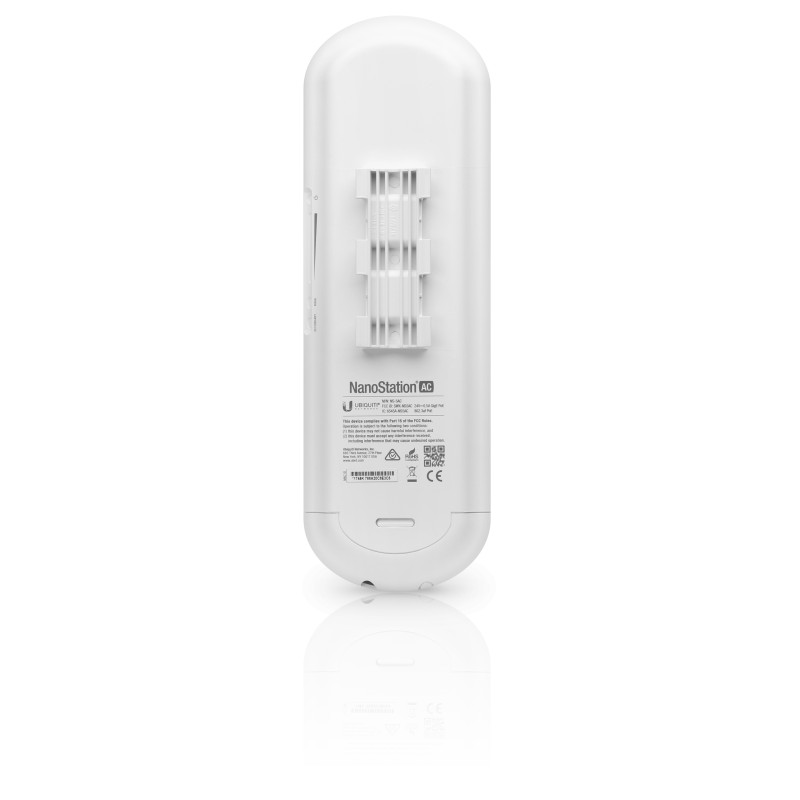

| Assembly | Pole and wall mounting kits (included) |
| Hardware | |
| Network interface | (2) 10/100/1000 MbE ports |
| Power method | PoE alternative A (pairs 1, 2+ 3, 6 return) 24V Passive PoE (Pairs 4, 5+ 7, 8 Return) |
| Power supply | 24 V, 0.5 A Gigabit PoE supply (included) |
| Supported voltage range | 24V ±10% |
| Max. energy consumption | 9W |
| ESD/EMP protection | Air/Contact: ±24 kV |
| LEDs | Power, Ethernet, (4) Signal strength |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| system | |
| Win | 16 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pole insulation | 20 dB min. |
| Max. VSWR | 1.6:1 |
| Beam width | 45° (H pole) / 45° (V pole) / 45° (elevation) |
| polarization | Dual linear |
| Operating frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| USA/California | 2412 - 2462 MHz |
Details about Ubiquiti NanoStation 5AC, NS-5AC
Manufacurer:
NS-5AC
Weight:
NS-5AC
Recommended accesories for Ubiquiti NanoStation 5AC, NS-5AC
Reviews for Ubiquiti NanoStation 5AC, NS-5AC
Comments (0)
No customer reviews for the moment.
