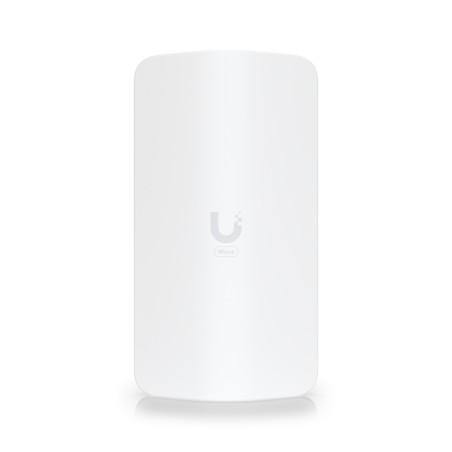

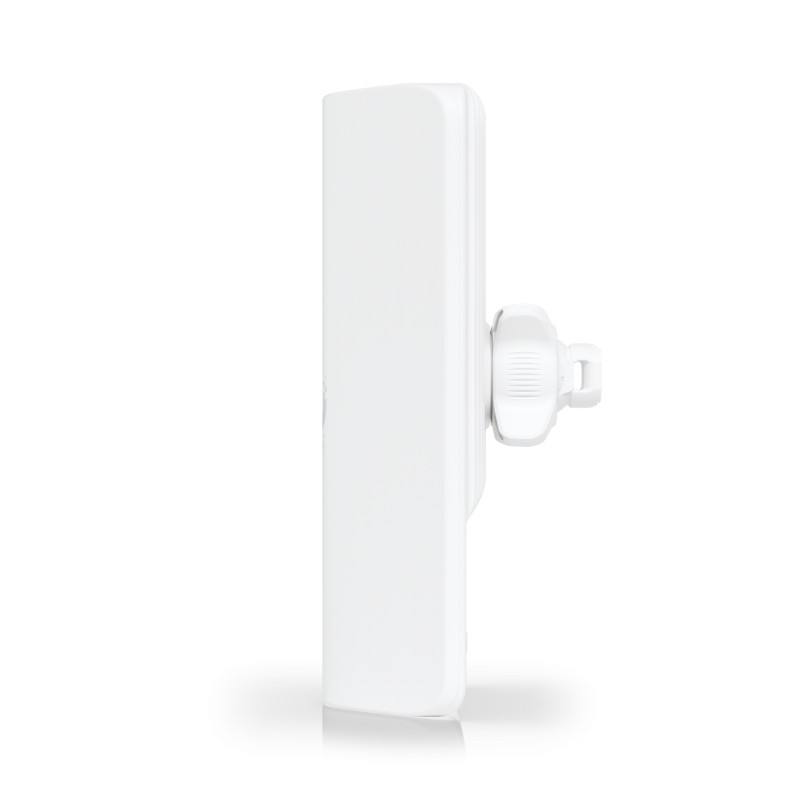

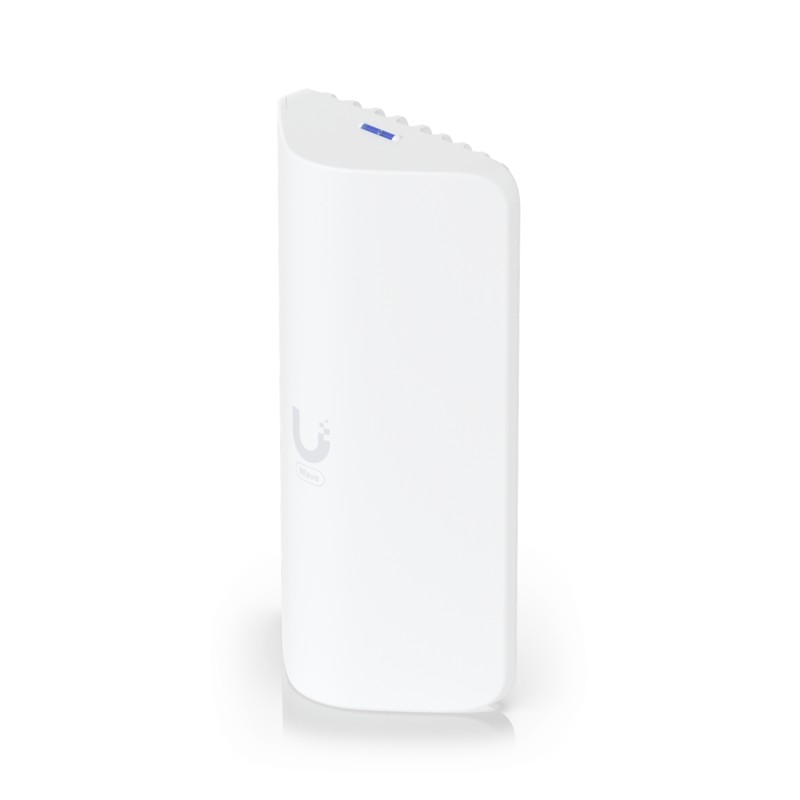

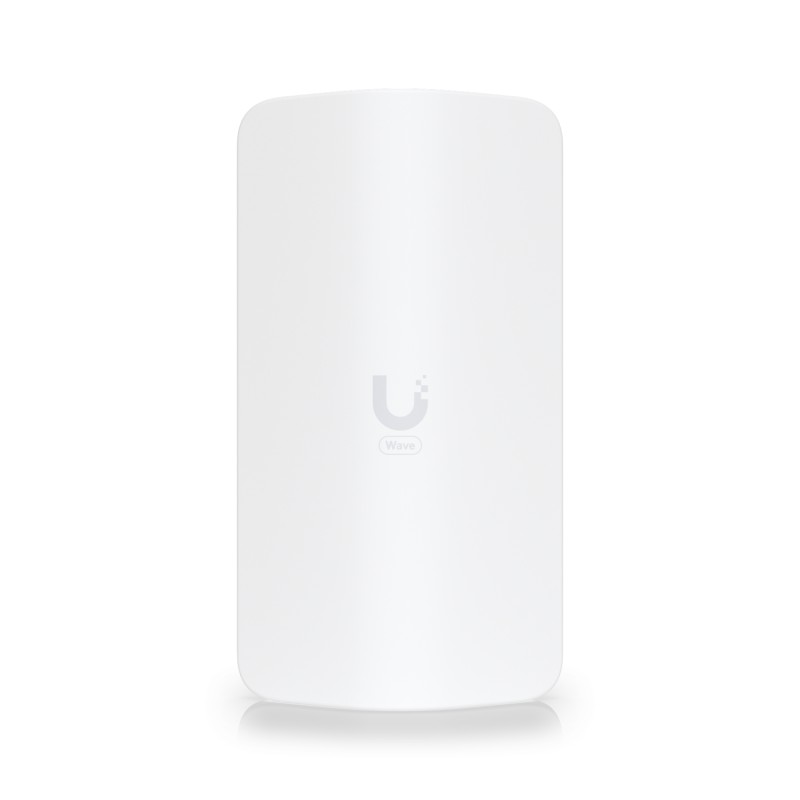

Wide-area 60 GHz PtMP access point with Wave technology.
Highlights:
- Max. total throughput: 5 Gbit/s
- 90° sector coverage
- Weatherproof 5 GHz backup radio (max. throughput: 800 Mbps)
- (1) 2.5 GbE WAN port
- 31* Client Capacity:
- — Wave Pro (6 km connection range)
- — Wave Long-Range (6 km connection range)
- — Wave Nano (4 km connection range)
- — Wave Pico (0.9 km connection range)
- Integrated GPS and Bluetooth
*FW version 3.4.0 and higher.
Technical data:
| Mechanically | |
|---|---|
| Mass | 284 x 156 x 76mm (11.2 x 6.1 x 3 inches) |
| Weight | 1.3 kg |
| Housing material | Aluminum alloy, UV stabilized polycarbonate |
| Mounting material | Stainless steel, UV-stabilized polycarbonate |
| Diameter of the mast mount | 35 to 60 mm (1.4 to 2.4") on the pipe outer diameter |
| Wind load | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weather resistance | IPX6 |
| Hardware | |
| processor | Quad-core ARM® Cortex®-A53 with 1.4 GHz |
| Memory | DDR3L 512 MB |
| Network interface | (1) 1/2.5 GbE RJ45 connector |
| Max. power consumption | 24W |
| Performance method | Passive PoE 4 pairs (1, 2+ 3, 6-) (4, 5+ 7, 8-) Passive PoE 2-pairs (4, 5+ 7, 8-), only for 44-54 V DC |
| Power supply | 48 V DC, 0.65 A, 2.5 GbE PoE adapter (included) |
| Supported voltage range | 44–54 V DC 22–27 V DC |
| GPS | Yes |
| button | Factory reset |
| LEDs | Power supply, Ethernet, GPS, connection |
| Ambient temperature during operation | -40 to 60 °C (-40 to 140 °F) |
| Humidity during operation | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| software | |
| Operating mode | PtMP access point |
| Ubiquiti-specific features | Wave AI, detection protocol |
| Services | UISP, Ping Watchdog, NTP Client, SNMP |
| Tools | Antenna alignment, detection program, ping, traceroute, speed test, cable test*, site survey* *FW version 3.3.0 and higher. |
| network | Bridge mode |
| Application requirements | UISP Web: Version 2.2.11 and higher UISP Mobile iOS™: Version 2.25.1 and higher UISP Mobile Android™: Version 2.27.5 and higher |
| system | |
| Total throughput | 5 Gbit/s |
| Number of supported clients | 31* *FW version 3.4.0 and higher. |
| Max. range | Connection to a Wave Pro: up to 6 km Connection to a Wave Long-Range: up to 6 km Connection to a Wave Nano: up to 4 km Connection to a Wave Pico: up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57–71 GHz *Depending on the regulatory region. |
| Channel bandwidth | 2160, 1080, 540* MHz *FW version 3.3.0 and higher. |
| Control channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200MHz *Depending on the regulatory region. |
| modulation | 16QAM, QPSK |
| Antenna gain | 20 dBi |
| polarization | Vertical linear |
| Beam width | Azimuth: 3 dB 90° Elevation: 3 dB 7° |
| Electrical lowering | 0° |
| Backup RF | |
| WiFi standard | 802.11ax (Wi-Fi 6) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150–5250 MHz U-NII-2A 5250–5350 MHz U-NII-2C 5470–5725 MHz U-NII-3 5725–5850 MHz 5150–5875 MHz *Depending on the regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| modulation | BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6) |
| Antenna gain | 13.5 dBi |
| polarization | Dual-linear |
| Beam width | Azimuth: 6 dB 90° Elevation: 6 dB 25° |
| Cross-pole insulation | 10 dB |
| Electrical lowering | 0° |
| LEDs | |
| Performance | Flashing white: Booting in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: Localization in progress Blue/white: Firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: Reception of at least (4) GPS satellite signals |
| link | Blue: 60 GHz connection White: 5 GHz connection |
