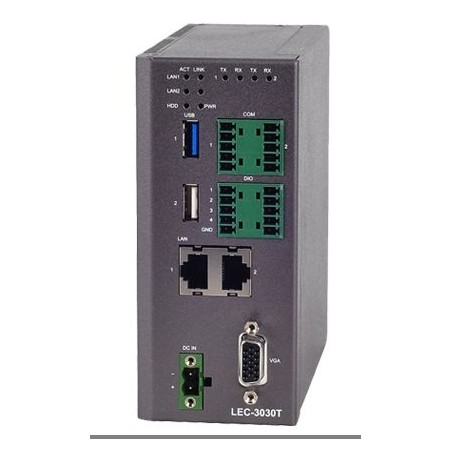

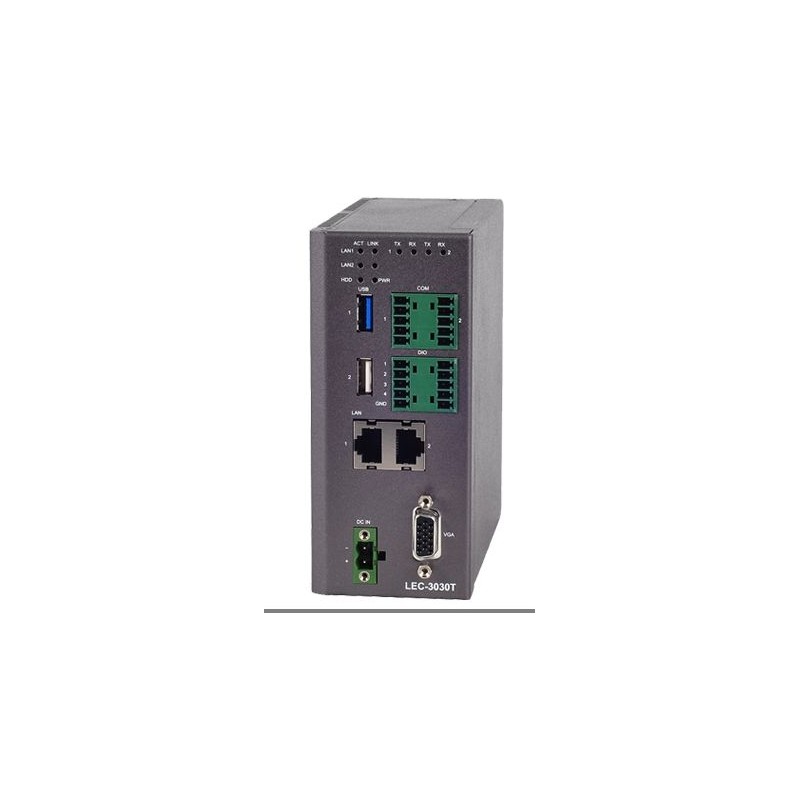

ALLNET DIN-RAIL / top hat rail PC LEC-3030T - Atom E3815
ALLNET DIN-RAIL / top hat rail PC LEC-3030T - Atom E3815
Key features
- Compact-sized industrial grade box PC
- Single-core Atom E3815
- ESD/surge protection on serial COM ports for harsh environments
- Wide operating temperature (LEC-3030T:-40~70°C)
- Fanless design with corrugated aluminum
- Support VGA display output

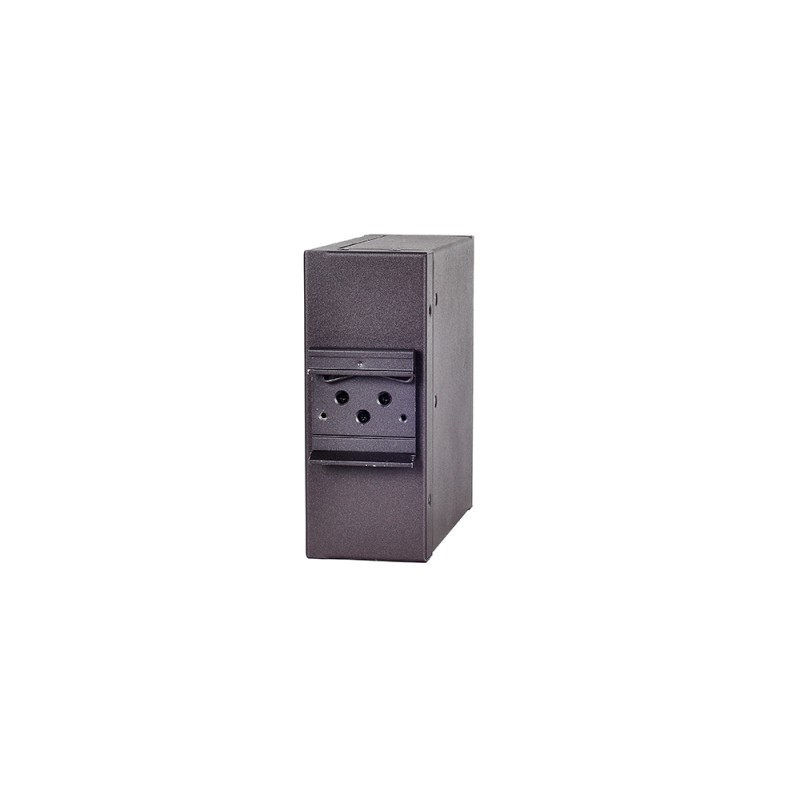

- DIN-Rail or wall mounting options
- Support 4x DI/O
- Dual GbE LAN ports, 1 x USB 2.0, 1 x USB 3.0 port
- 1 x SATA port
Overview
Lanner LEC-3030 Series is a compact industrial-grade fanless box PC featuring dual-core Atom E3815(codenamed BayTrail), DDR3L 1333MHz SO-DIMM memory up to 4GB, VGA display, wide operating temperature(LEC-3030T), DIN Rail/Wallmount options and a variety of Serial COM and LAN configurations for various industrial application needs. It is ideal for solar PV monitoring, wind turbine, smart meter, renewable energy or other modern IoT (Internet of Things) applications.
Specifications
| Platform | |
| CPU | Atom E3815 1.46GHz CPU |
| Chipset | SoC |
| Memory Technology | DDR3L SO-DIMM x1 |
| Memory Capacity | Up to 4 GB |
| Storage | |
| SATA storage | 1 x SATA port and HDD kit |
| I/O | |
| Ethernet controller | Intel i210-IT |
| Default LAN | 2 x RJ45 |
| Magnetic Isolation Protection | 1.5KV magnetic isolation protection |
| Serial ports | 2 x Isolated RS-232/422/485 + 1 x RS-232 pin header |
| Digital I/O | 1 x 2x5 pin terminal block for 4 x DI/DO |
| USB 2.0 | 1 x Type A |
| USB 3.0 | 1 x Type A |
| Power and Mechanical | |
| Power input | Phoenix contact 2-pin connector with lock, 12 ~ 36 Vdc power voltage |
| OS and Certifications | |
| Operating System | Microsoft Windows 7, Windows 7 Embedded Linux: Linux (Ubuntu), Linux: kernel 2.6 |
| Certifications | CE/FCC Class A, RoHS |
| Physical and Environmental | |
| Storage temperature | -40°C to 85°C |
| Operating temperature | -20°C to 55°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 52 mm x 130 mm x 127 mm (2.05" x 5.12" x 5.00") |
| Weight | 1 kg (2.2 lbs) |
| Watchdog | Watchdog timer 256 level time interval system reset, software programmable |
