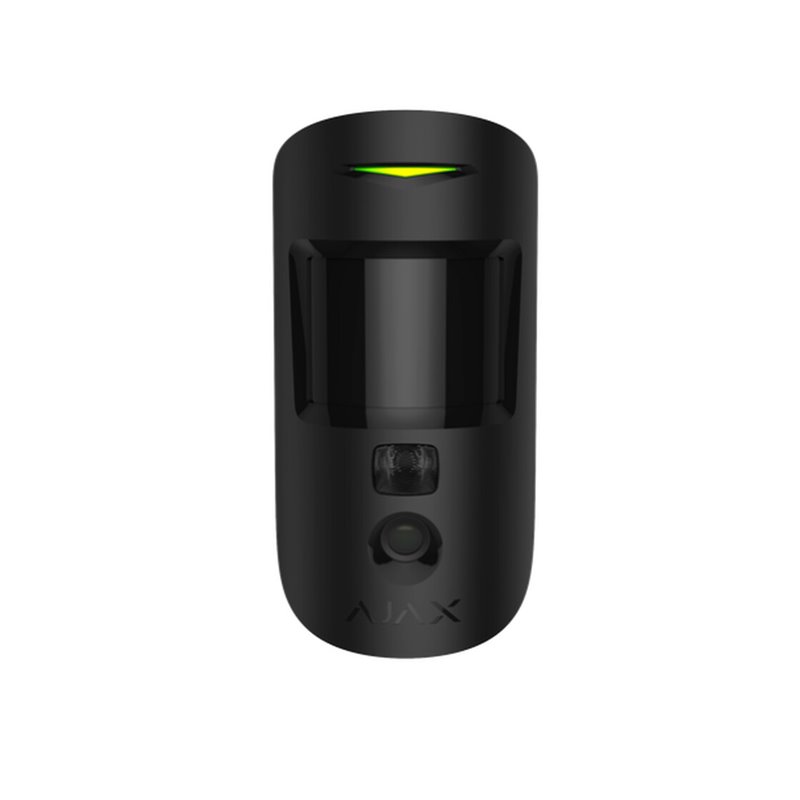

AJAX | Wireless motion detector "MotionCam HDR PhOD" with camera (black)
- Motion detector MotionCam HDR PhoD
- Color: Black
- according to guidelines: EN 50131 Grade 2
- Area of application: basement, living room, staircase, hallway
- Detection range: 12 m
- Viewing angle (H/V): 88.5°/80°
- Detection method: heat detection
- Pet immune: Up to 20kg
- Image resolution: 640 × 480 pixels
AJAX | Wireless motion detector "MotionCam HDR PhOD" with camera (black)
The AJAX MotionCam PhoD HDR PhoD is a wireless PIR motion detector with image capture in the event of an alarm. It is designed exclusively for indoor use. The device operates for up to four years on the included batteries and detects motion at distances up to 12 meters.
MotionCam HDR PhoD works in Ajax security systems and is connected to a Hub 2 control panel via two secure wireless protocols. The detector uses the Jeweller and Wings protocols to transmit alarms, events, and photos.
The AJAX MotionCam HDR PhoD is configured via the Ajax apps for iOS, Android, macOS, and Windows. Users are notified of all alarms and events via push notifications, SMS, and calls (if enabled).
The integrated camera of the AJAX MotionCam HDR PhoD can capture one to five images at a resolution of 320 × 240 pixels and up to three images at a resolution of 640 × 480 pixels. The individual images are displayed in the app as an animated photo gallery, allowing the user to track the event over time. The photos are available via both the Ajax apps and the security company's monitoring center software.
Product features:
- ONLY Compatible with the AJAX "HUB 2, HUB 2 LTE & HUB 2 PLUS"
- Sends a photo to smartphone / tablet after alarm is triggered
- Intelligent signal processing ignores small animals up to 20 kg
- The detector housing is protected against sabotage
- Presence monitoring of the detector adjustable (12-300 s)
- Easy login to the system by scanning the QR code
- MotionCam detectors do not require WLAN (Wi-Fi) to transmit image data
Technical data:
| Sensor element | PIR sensor |
| Motion detection range | Up to 12 m |
| Viewing angle of the motion detector (H/V) | 88.5°/80° |
| Image resolution | Up to 640 × 480 pixels |
| Number of photos taken during an alarm | Up to 5 photos per alarm event |
| Infrared lighting for shooting in the dark | Yes |
| Pet immunity |
Weight up to 20 kg, height up to 50 cm |
| tamper contact | Yes |
| Frequency range | 868.0 MHz to 868.6 MHz or 868.7 MHz to 869.2 MHz, depending on the sales region |
| CMS compatibility | Motion detector alarms are sent to CMS systems that support the SIA and Contact ID protocols. Photo confirmations of alarms are sent to the CMS system Manitou and Ajax PRO Desktop |
| Maximum RF output power | Up to 20 mW |
| Radio signal modulation | GFSK |
| Radio range (line of sight) | Up to 1700 m |
| power supply | 2 CR123A batteries, 3 V |
| Battery life | Up to 4 years |
| Operating temperature range | From 0°C to 40°C |
| Operating humidity | Up to 75% |
| Overall dimensions | 135x70x60mm |
| Weight | 167 g |
Scope of delivery:
- 1x AJAX | Wireless motion detector " AJAX MotionCam HDR PhoD " with camera (black)
- 2x batteries CR123A
- 1x mounting kit
- 1x quick guide
