AJAX | 12VDC power supply for Hub 2, ReX 2

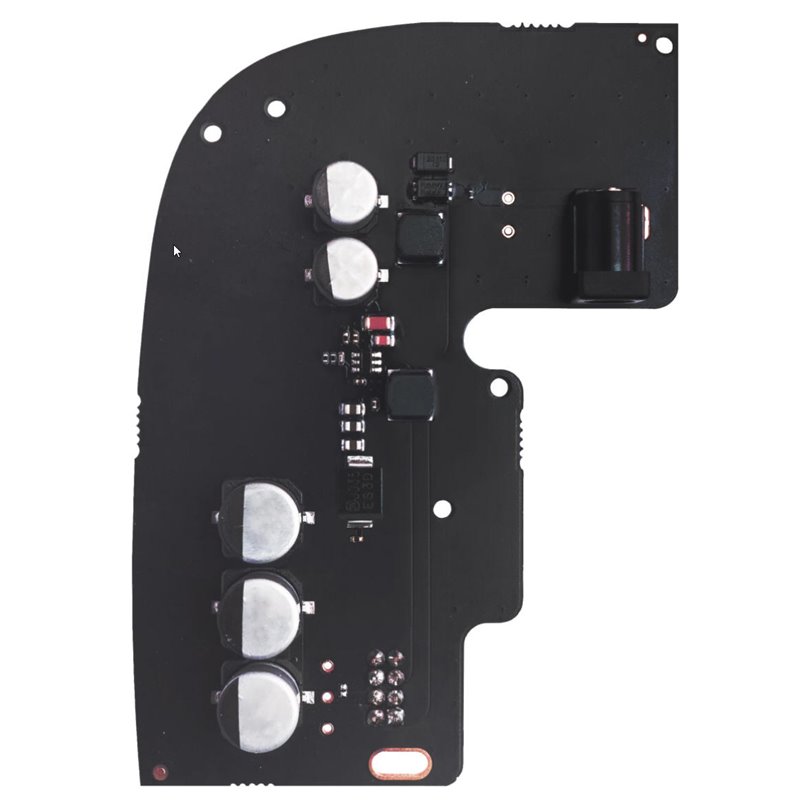

AJAX power supply for converting the HUB 2 control panel to 12VDC (input voltage 8~20VDC). This module must be installed in the HUB 2 or ReX 2 and is only compatible with these devices.
AJAX | 12VDC power supply for Hub 2, ReX 2
AJAX power supply for converting the system to 12VDC (input voltage 8~20VDC). This module must be installed in the HUB 2 or REX 2 and is only compatible with these two devices.
Main features:
- Allows the AJAX HUB 2 or REX 2 to operate via 12VDC
- Input voltage variable from 8~20VDC
- Easy installation
- Average consumption per hour only 95 mA
Technical data:
| brand | Ajax |
| compatibility | Ajax HUB 2 or REX 2 |
| Input voltage | 8~20 VDC |
| Input current | 1 Maximum |
| Output current | 1.5 A |
| Average consumption per hour | 95 mA |
| Dimensions | 98 (H) x 70 (W) x 17 (L) mm |
The power consumption of the central unit depends mainly on the active communication modules — the average values are given in the table:
| Central unit | Active communication modules | Average input current |
| Hub | GSM | 42 mA |
| Ethernet | 80 mA | |
| GSM+Ethernet | 90 mA | |
| Hub Plus | GSM | 35 mA |
| Ethernet | 72 mA | |
| GSM+Ethernet | 93 mA | |
| Wi-Fi | 20 mA | |
| Wi-Fi+GSM | 42 mA | |
| Wi-Fi+Ethernet | 80 mA | |
| Wi-Fi+GSM+Ethernet | 96 mA | |
| Hub 2 | GSM | 33 mA |
| Ethernet | 80 mA | |
| GSM+Ethernet | 86 mA | |
| Hub 2 Plus | GSM | 146 mA |
| Ethernet | 200 mA | |
| GSM+Ethernet | 248 mA | |
| Wi-Fi | 98 mA | |
| Wi-Fi+GSM | 147 mA | |
| Wi-Fi+Ethernet | 213 mA | |
| Wi-Fi+GSM+Ethernet | 285 mA | |
| ReX | — | 20 mA |
For example, if Hub 2 is connected to a 40 A h battery, the operating time of the device (assuming it has an active GSM module) is approximately 1200 hours (40 A h/0.033 A).
Scope of delivery:
- 1x AJAX power supply 12VDC for HUB, HUB PLUS or REX
