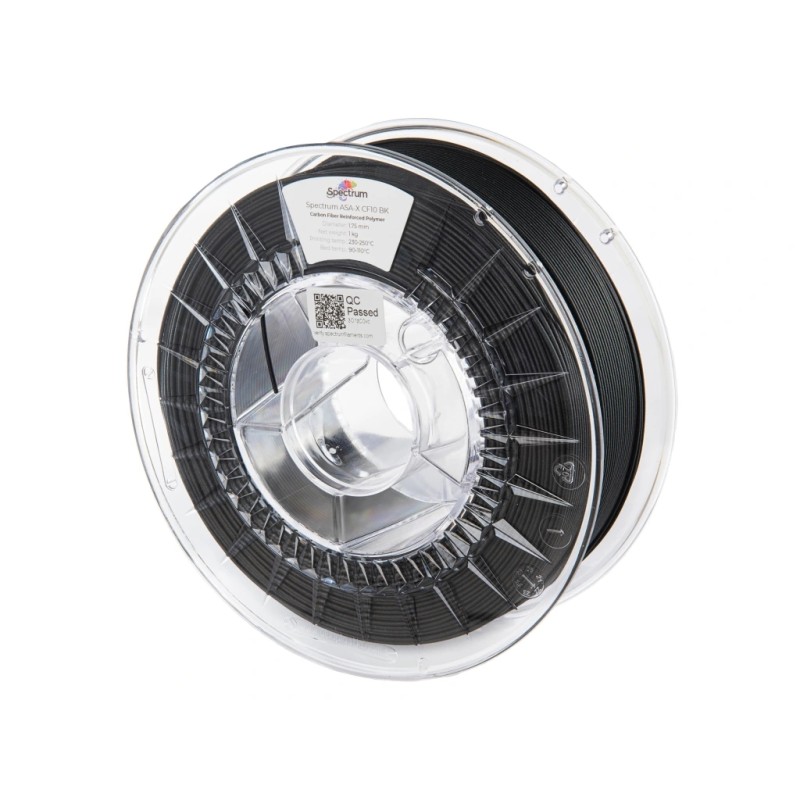

Spectrum 3D Filament ASA-X CF10 1.75mm Black 1kg
Spectrum 3D Filament ASA-X CF10 1.75mm Black 1kg
Spectrum ASA-X CF10 filament - your partner for demanding 3D printing projects
Spectrum ASA-X CF10 is a high-quality 3D printing filament that has been specially developed for applications that require maximum mechanical strength and weather resistance. By combining ASA polymer with 10% carbon fibers, this filament offers outstanding stiffness and hardness, ideal for outdoor use and demanding conditions.
Key features:
- High heat resistance: with a heat deflection temperature (HDT) of 95°C and a Vicat softening temperature of 101°C, the material remains dimensionally stable even at elevated temperatures.
- Weather and UV resistance: The ASA base material ensures excellent resistance to UV radiation and other environmental influences, making it perfect for outdoor applications.
- Easy processing: Despite its technical properties, the filament is just as easy to print as PLA and does not require a heated printing chamber.
- Aesthetic finish: The matt carbon surface gives the printed objects a professional look and effectively conceals the layer lines.
Technical data:
| Property | Value |
|---|---|
| Material | ASA with 10% carbon fibers |
| Filament diameter | 1.75 mm |
| Diameter tolerance | ± 0.03 mm |
| Density | 1.10 g/cm³ |
| Net weight | 0.5 kg or 1 kg |
| color | Black color |
Recommended print settings:
| Parameters | Recommended range |
|---|---|
| Nozzle temperature | 235-260°C |
| Heating bed temperature | 90-110°C |
| Print speed | 30-70 mm/s |
| Layer height | = 0.15 mm |
| Fan speed | 0-20% |
| Closed pressure chamber | Not required |
| Recommended nozzle | Hardened or ruby |
Material properties:
| Property | Value |
|---|---|
| Heat deflection temperature (HDT) | 95°C |
| Vicat softening temperature | 101°C |
| UV resistance | Excellent |
| Surface finish | Matt carbon look |
| Coating adhesion | Excellent |
Areas of application:
- Functional prototypes
- Production tools
- Housings and covers
- Parts with high abrasion resistance
- Components for outdoor use
With Spectrum ASA-X CF10 filament, you are choosing a high-performance material that will take your 3D printing projects to the next level. Benefit from its combination of mechanical strength, weather resistance and easy handling.
