ALLNET 5-inch PoE touchscreen tablet with 2GB/16GB, RK3566, Android 11 *Special offer*
ALLNET 5-inch PoE touchscreen tablet with 2GB/16GB, RK3566, Android 11 *Special offer*

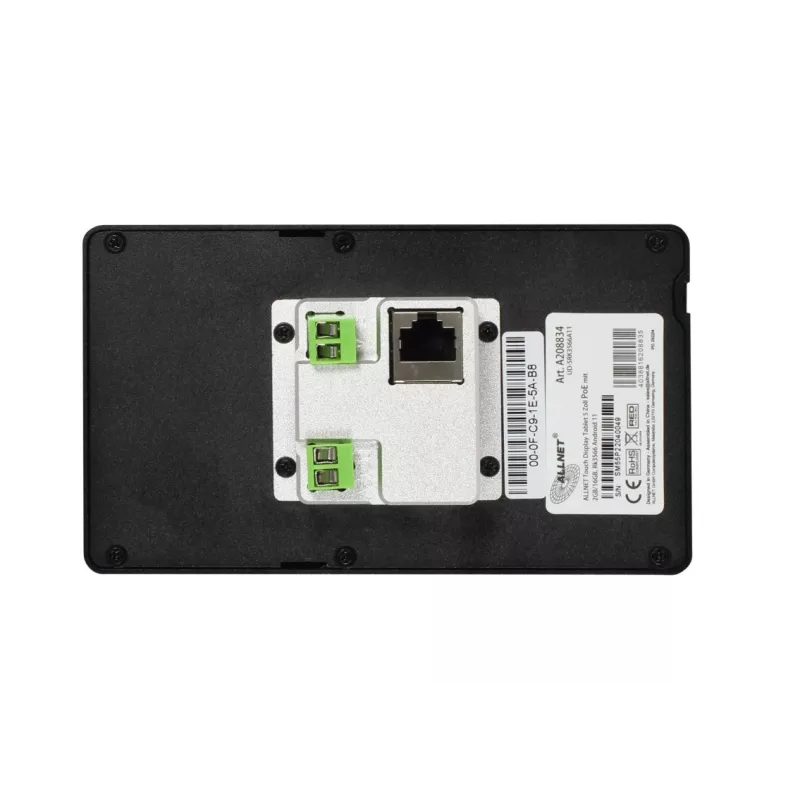

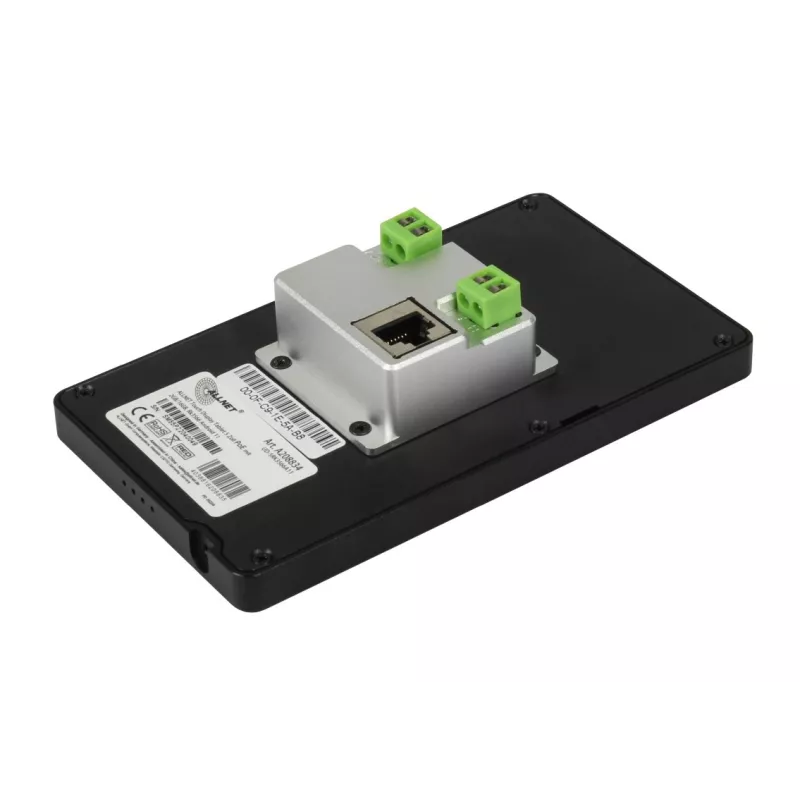

***Note: The light green connectors do not fit securely enough; dark green Phoenix terminals have therefore been included as a supplement. Either press these in very firmly or snap off the locking tab.***

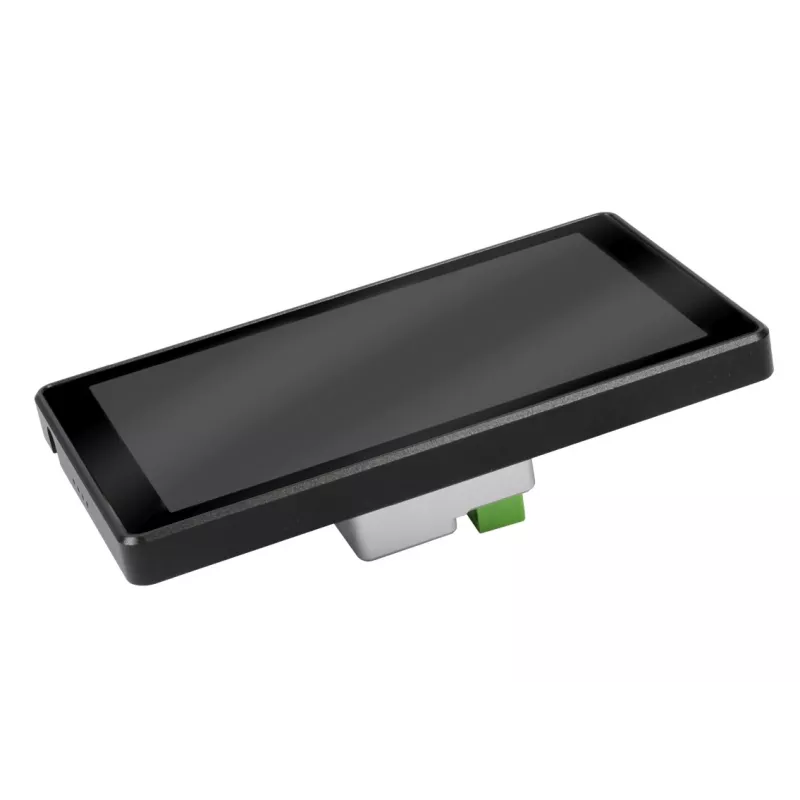

Built-in touchscreen display with Rockchip RK3566 CPU and Android. 2GB RAM / 16GB storage. Expandable via USB and SD cards. Resolution 720x1280, PoE (Power over Ethernet). 12–24V power supply supported.
It can be mounted on round and square flush-mounted boxes.
The display is specifically designed for applications in home automation, visualisation and building control, as well as for installation in control cabinets or for desktop use.
If the display appears very small, you can adjust it using the Easy DPI Changer app. Here, change the DPI value from 160 to 180, 200, 220 or 240, as required.
It is always advisable to test the devices for specific applications over the long term to ensure that all required functions are working correctly.
| Model No. UD-5RK3566A11 | ||
| Product Type | 5.0" POE | |
| Description | ||
| System | CPU/GPU | Rockchip RK3566 quad-core processor, CPU – Quad-core Arm Cortex-A55, GPU – Mali-G52EE GPU |
| RAM | 2GB | |
| ROM | 16GB | |
| System | Android 11 | |
| Display | screen | 5.0-inch IPS panel |
| Resolution | 1280x720 Wide viewing | |
| Contrast | 1000 | |
| Brightness | 350 nits | |
| Network | Wi-Fi | 802.11 b/g/n 2.4 GHz |
| Ethernet | PoE 15.4 watts IEEE 802.3af | |
| Bluetooth | YES | |
| 3G | Supports external 3G USB dongle | |
| Jack | SD | Supports SD cards (up to 32G) |
| Mini USB | Mini USB | |
| USB Host | USB-C host 1x | |
| RJ-45 | built-in | |
| DC | DC input 12V–24V | |
| Headset | 3.5mm stereo headphone/microphone output | |
| Multimedia | Video | Video decoding – H.264/H.265/VP9 |
| Audio | MP3/WMA/AAC etc. | |
| Image | JPEG, JPG | |
| Other functions | Wireless mouse | Support |
| Wireless keyboard | Support | |
| Speak | 1x1W | |
| Camera | No | |
| OSD Language | Multi-language OSD operation | |
| Attachment | Adapter | no |

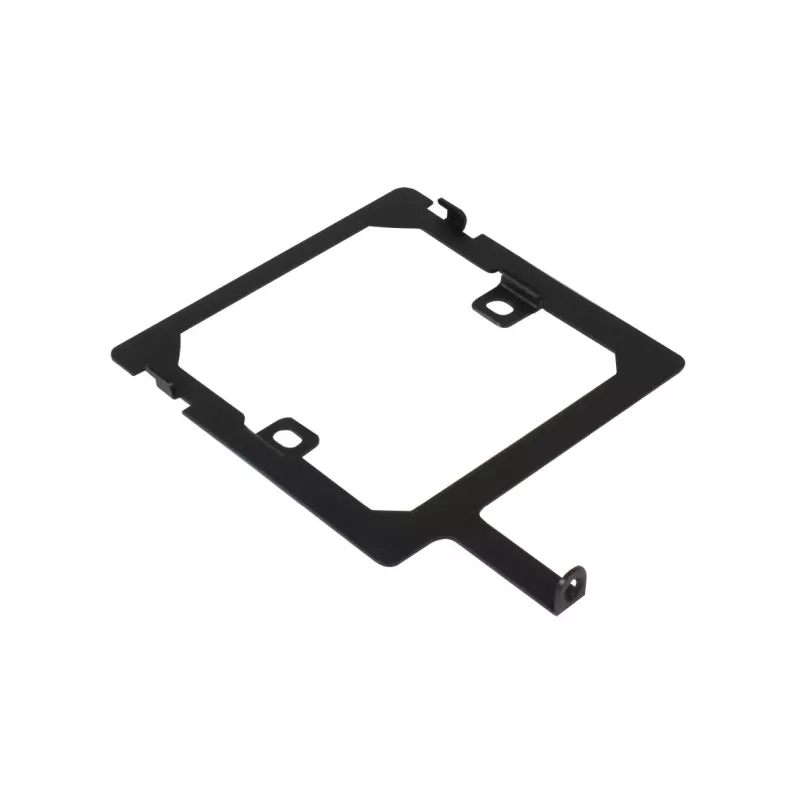

| Wall bracket | yes | |
| VESA | no | |
| Dimensions | LxWxH | LxWxH: 146x83x33mm, distance from wall 10mm |
