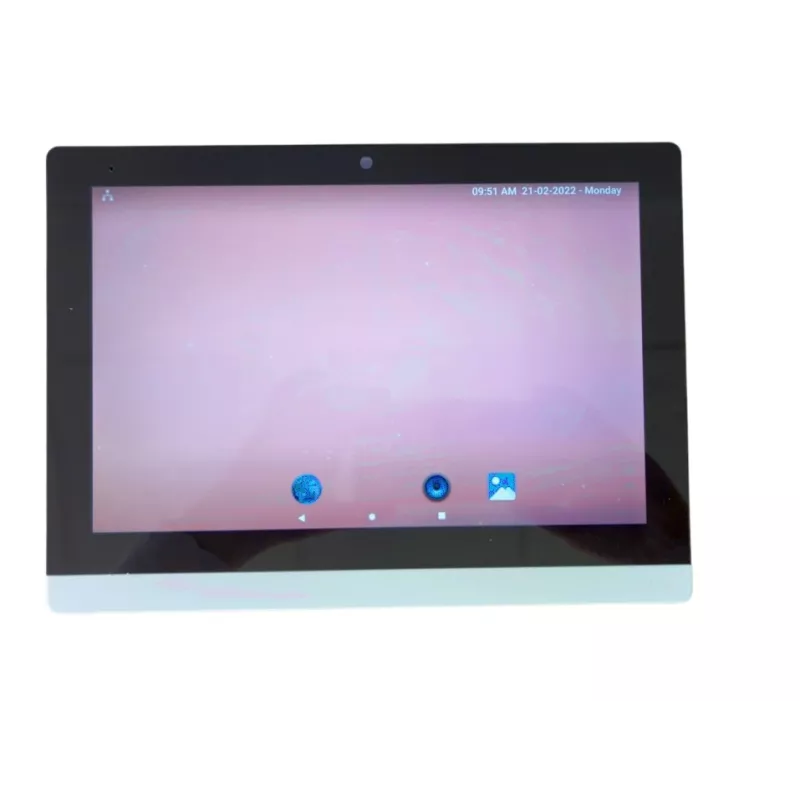

ALLNET (Akuvox C319) DS10 10-inch PoE touchscreen tablet with 4GB/16GB, Android, SIP, Wi-Fi

The ALLNET DS10 is a specialised display designed for integration into telephone systems and door entry systems. SIP integration allows the display to be integrated into a PBX as a telephone, e.g. FritzBox, 3CX, etc. It is also possible to configure the display as a PBX itself.

This means you can use it yourself as a telephone system for making calls. Another special feature is the ability to assign Action URLs to buttons. This makes it possible to call the lift or operate a door opener. Two built-in relays can also be controlled to carry out further switching operations. The built-in SOS function is particularly suitable for older people. It is possible to store several telephone numbers which can be dialled simultaneously.

*Play Store installation via an external app enables integration into home automation solutions and flexible use; features include automatic display shutdown and a ‘Touch to Wake’ function

Firmware update: Download thehttps://fileshare.allnet.de/s/5f8UzSYiv07M7DZfirmware and install it via the update function in the backend.

Technical Details

• Front panel: Plastic
• RAM / ROM: 4GB / 16GB
• Display: 10-inch IPS LCD
• Screen: 10-inch capacitive touch screen
• Wi-Fi: IEEE 802.11 b/g/n, @2.4GHz
• BLE: Supports BLE 4.2
• Camera: no camera
• Memory slot:1 microSD slot
• RS485 port: Supported
• Relay outputs: 2
• Bell input: 1
• Microphone: -26 dB
• Speaker: Dual speakers, 4Ω / 3W
• Ethernet ports: 1xRJ45, 10/100 Mbps adaptive
• 802.3af Power over Ethernet
• 12V DC connector (if not using PoE)
• Tamper-resistant: Supported

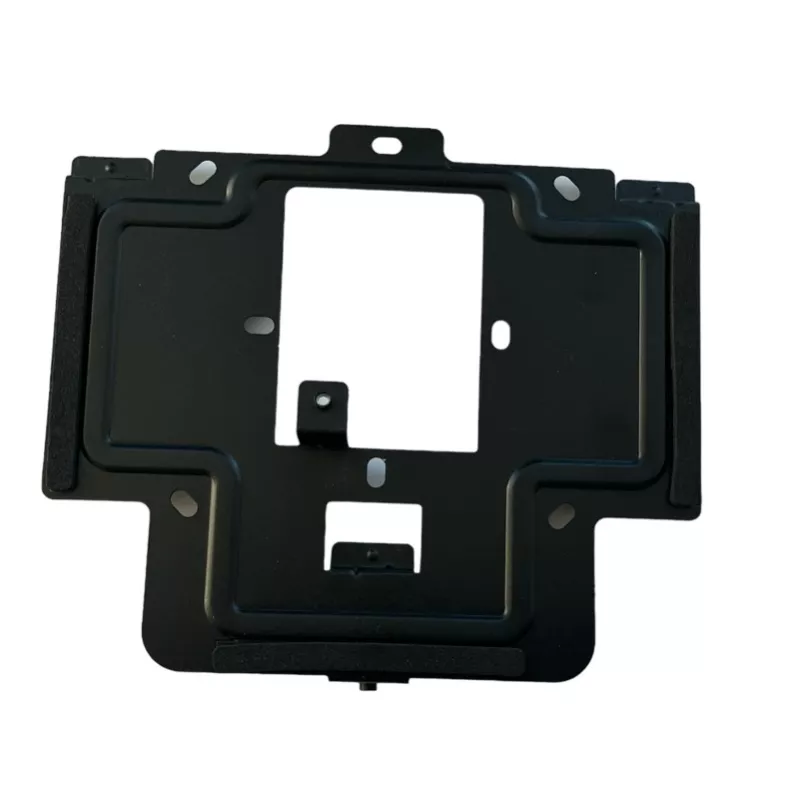

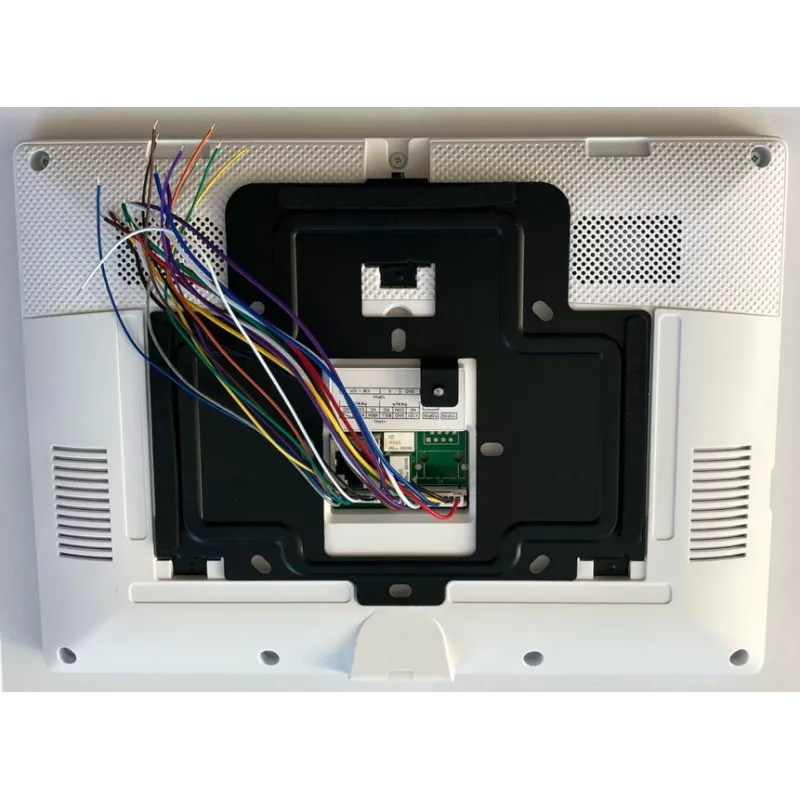

• Installation: Wall-mounted & desktop
• Dimensions: 251 × 182.5 × 29.75 mm
• Operating humidity: 10–90
• Operating temperature: -10°C to +45°C
• Storage temperature: -20°C to +70°C

Touchscreen display

• Display mode: Normally black, transmissive
• LCD size: 10 inches (diagonal)
• Aspect ratio: 16:10
• Resolution: 1280×800
• Contrast ratio: 900:1
• Luminance: 350 cd/m²
• Viewing angle: 80° left, 80° right,
• 80° upwards, 80° downwards
• Touchscreen: Projected capacitive

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711µ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo cancellation
• Comfort noise generator
• Automatic gain control

Video

• Streaming formats: H.263 & H.264

Networking

• Supported protocols: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Deployment &amp Maintenance

• Auto-provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Firmware upgrade
• System logs (including door access logs)

*Play Storeinstallation: The Google Framework is installed via an installation app. The installation takes a very long time. The Google files update automatically after installation. This can take up to several hours.
