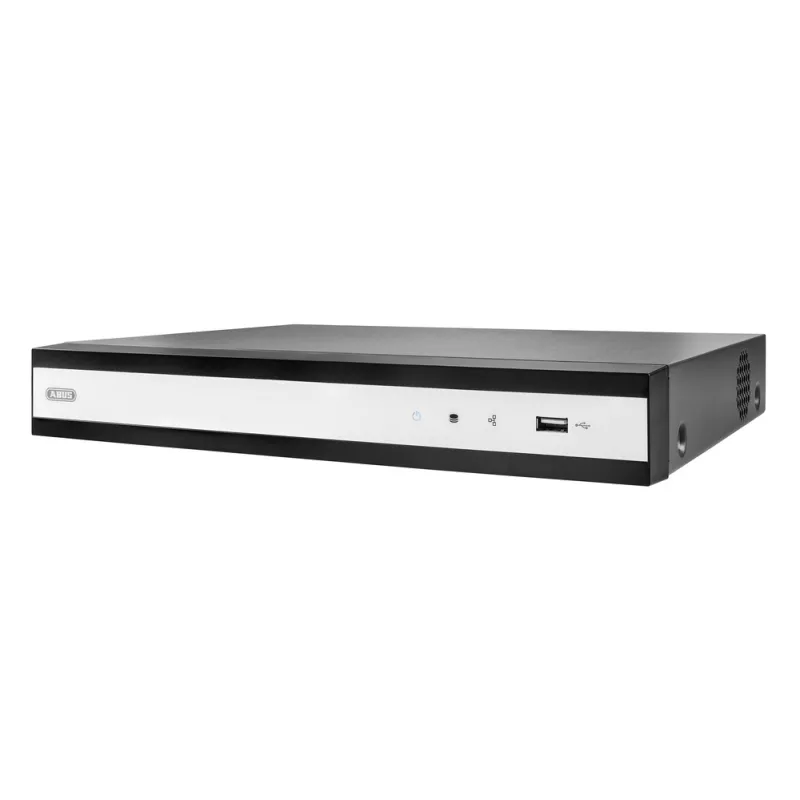

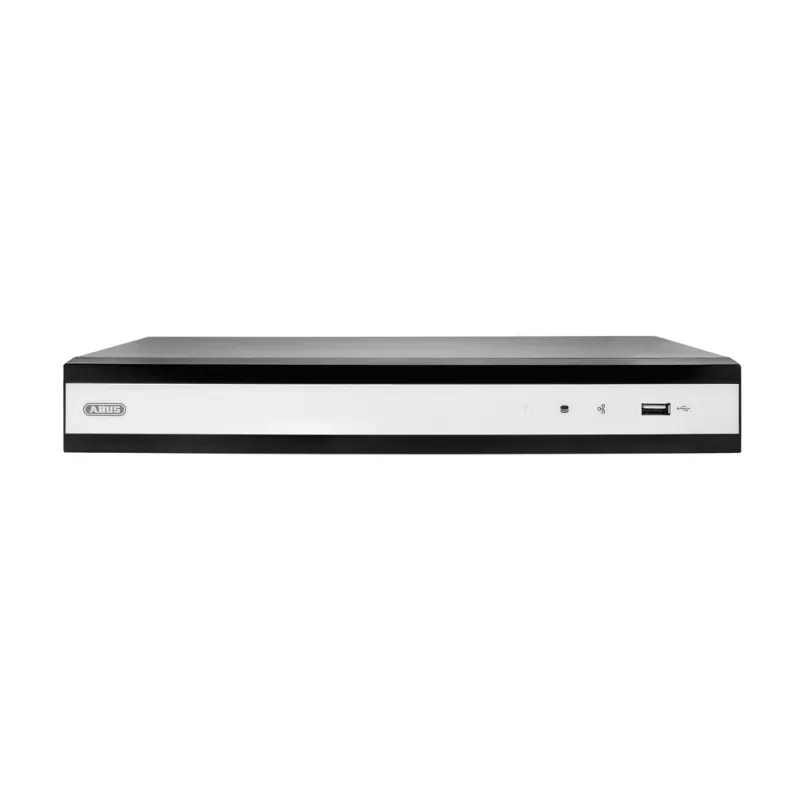

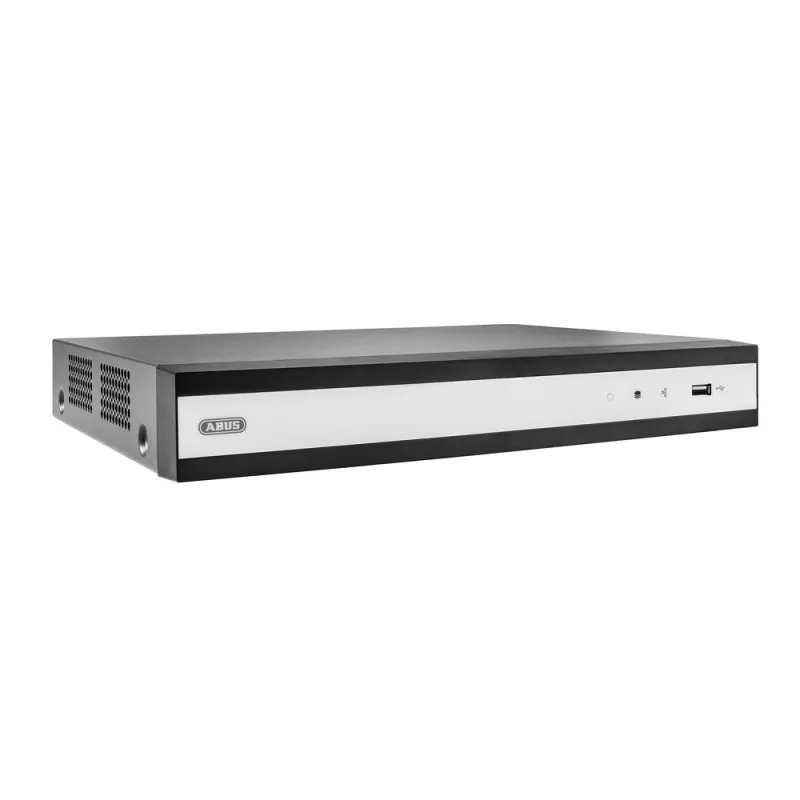

ABUS | 4-channel network video recorder (4K)

NVR with clever design & wide range of functions
In the workplace, in a shop or at home: The recorder is easy to use, can be positioned flexibly and saves data as required.

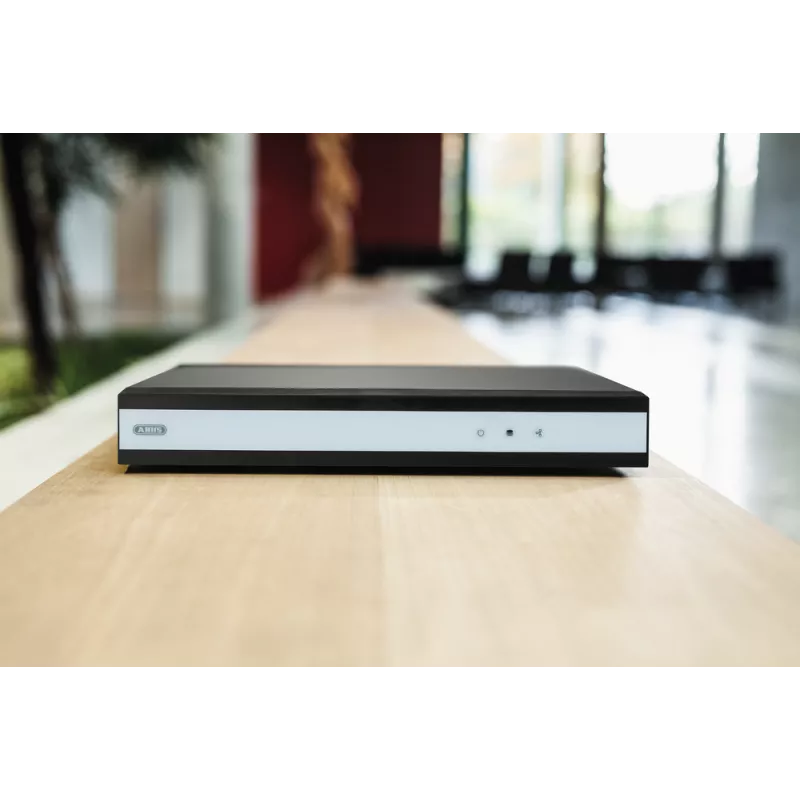

The network video recorder (NVR) records the video data from up to 4 connected IP cameras: Simply integrate a 3.5-inch hard drive (accessory) - and the video images can be saved and displayed in Ultra HD resolution. Another practical feature: The NVR can be placed as required, in a server cabinet or simply next to the monitor from which it is operated. A very good basis for setting up a compact and professional surveillance system.

Efficient commissioning & video surveillance
All functions can be accessed locally and remotely via the established user interface. Smart modes help with the quick, efficient search for scenes. The strong data compression (H.265 Plus is up to 4 times more efficient than H.264) ensures efficient use of memory. This means that, depending on requirements and configuration, you can record for weeks or months - for example, by manually triggering or motion detection. Even the commissioning process is kept simple: connect the NVR to the network and call up the user interface via a PC and browser or simply connect it to a separate monitor - after a short time, the first live image from the cameras can be seen. Individual settings can also be made quickly.

Mobile app access
Using the ABUS Link Station app, users receive a push notification when there is a motion alarm, for example. The Pro version of the app offers unlimited mobile access. The Lite version includes free access to up to 60 minutes of data stream (live view/playback) per month.

Product features:

• Reliably stores video data from up to 4 IP cameras with 4K resolution (8 MP, Ultra HD); supports the simultaneous display of all live images with Full HD resolution (2 MP, 1080p) on one monitor (multi-view)
• Integrate cameras from different manufacturers as required
• Quickly find the scene you are looking for thanks to the clear playback view; stores up to 10 TB on a 3.5-inch HDD/hard drive (accessory); strong H.265 Plus video compression for longer recording (depending on the camera)
• Streamlined commissioning in just a few minutes via PC/browser or directly via monitor as well as using the free ABUS IP installer software (searches for IP addresses of connected devices in the network)
• Established user interface for configuration (motion detection, schedules, etc.); alarm as required via warning tone on the NVR, screen display (on-screen display/OSD signal), email and/or push message on the app
• Effortless integration into a server cabinet (standard height 1U) using a shelf (accessory); place on a flat surface as required, e.g. near the monitor from which users operate the recorder (quiet operation, without fan)
• Convenient management of multiple recorders on a central PC using free Central Monitoring Station software (ABUS CMS); up to 256 recorders and 1,024 cameras, if required in a technology mix (IP, analogue HD)
• Easy mobile access to live stream and recordings with smartphone/tablet via ABUS Link Station app

Technical data:
