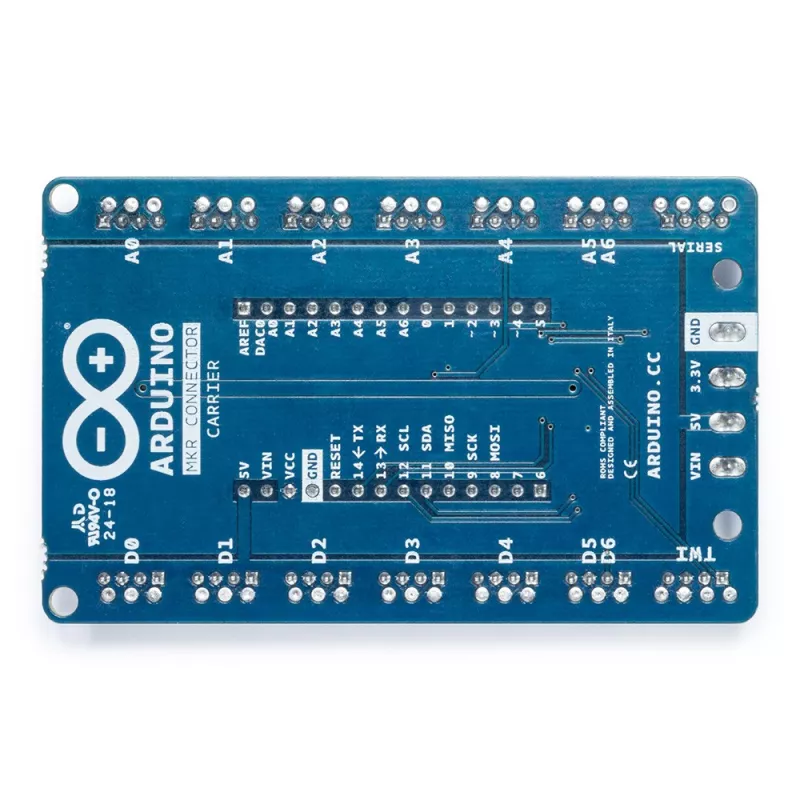

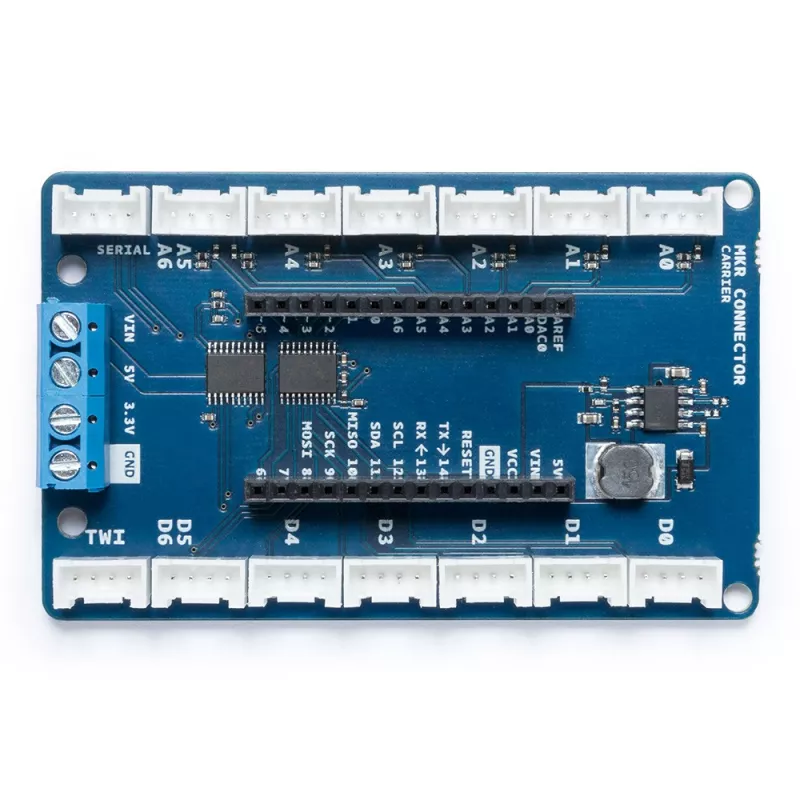

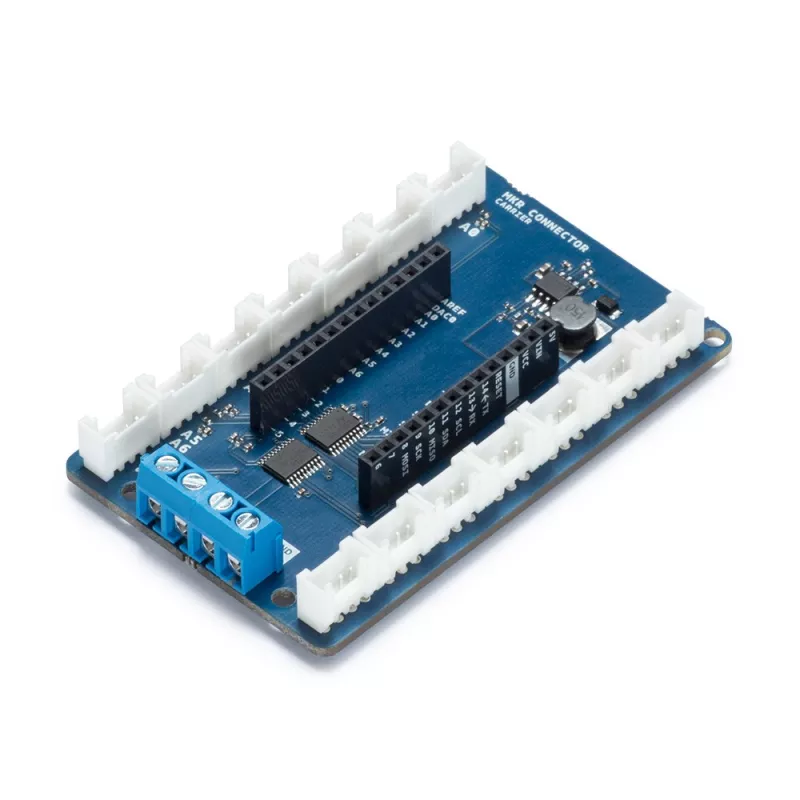

Arduino® Shield MKR Connector Carrier (Seeed Grove)
Arduino® Shield MKR Connector Carrier (Seeed Grove)
Your Arduino MKR board will be compatible with Seeed Grove!
Do you want to connect multiple Seeed Studio Grove modules to your Arduino board? The Arduino MKR Connector Carrier is the perfect companion for Arduino MKR boards and a Grove ecosystem.
Arduino® MKR Connector Carrier
Do you have multiple components that need to be connected to your project and prefer using connectors instead of soldering? The Arduino MKR Connector Carrier provides the Seeed Studio Grove connectors for your MKR board. The MKR Connector Carrier Shield is an essential tool for rapid prototyping activities. It allows you to easily and quickly connect sensors with Grove connectors. This shield can enable you to create applications with different IoT connectivity by simply changing the MKR board and requiring almost no code changes.
Technical specifications
| interface | 14 Grove Connectors | |
| Analog Inputs | 5 V | |
| A0,A1,A2,A3,A4 single grove analog input ( detailed info ) | ||
| A5, A6 double grove analog input ( detailed info ) | ||
| Digital Input/Output | 5 V | |
| D0,D1,D2,D3,D4 single grove I/O ( detailed info ) | ||
| D5,D6 double grove I/O ( detailed info ) | ||
| Other Connectors | One 5V I2C, One 5V UART |
| input Voltage (screw terminal block) | 7V - 16V ( Buck Datasheet ) |
| Circuit Operating Voltage | 3.3V |
| Compatibility | MKR |
