Arduino® Shield MKR Relay Proto (Relay)

Relay!

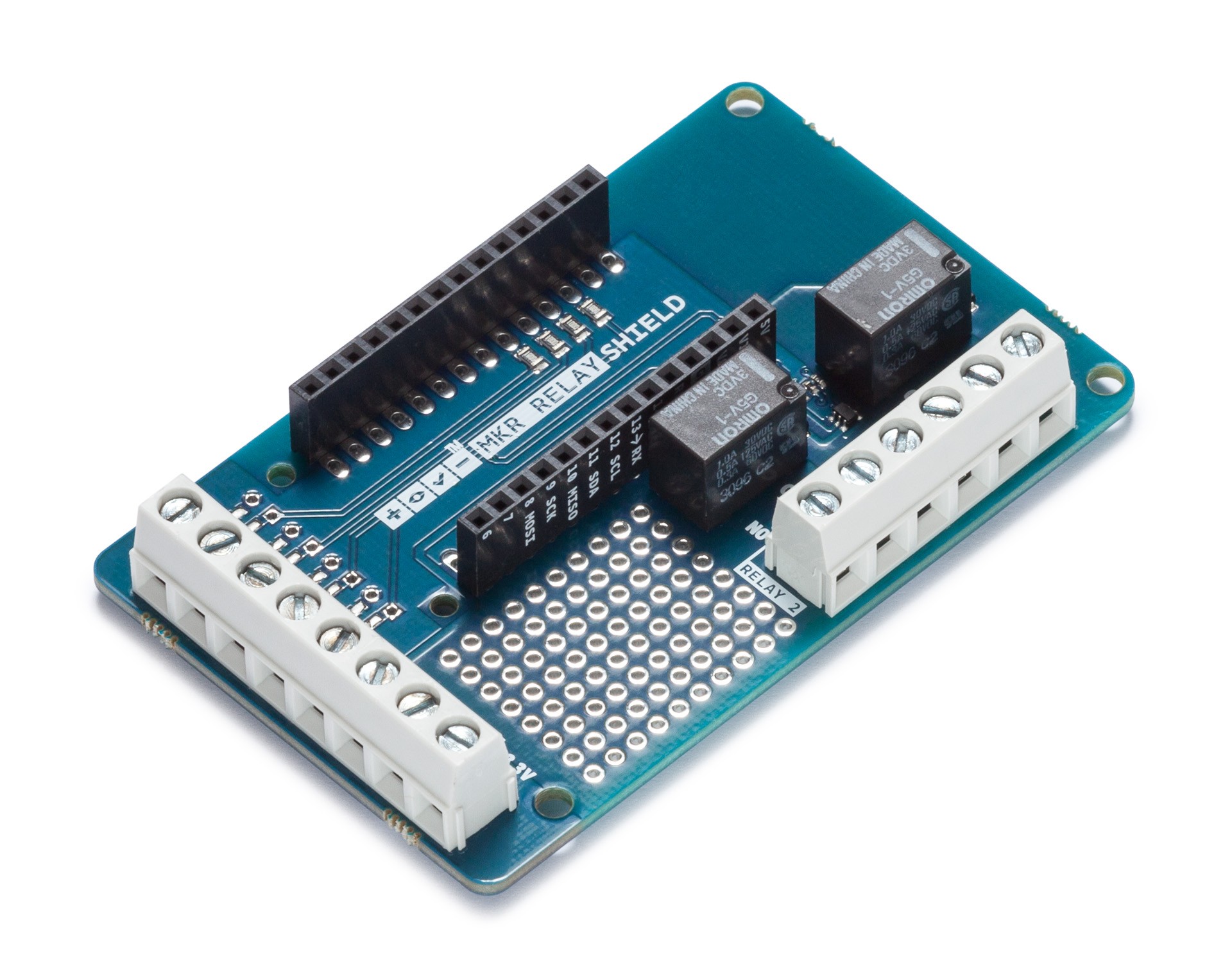

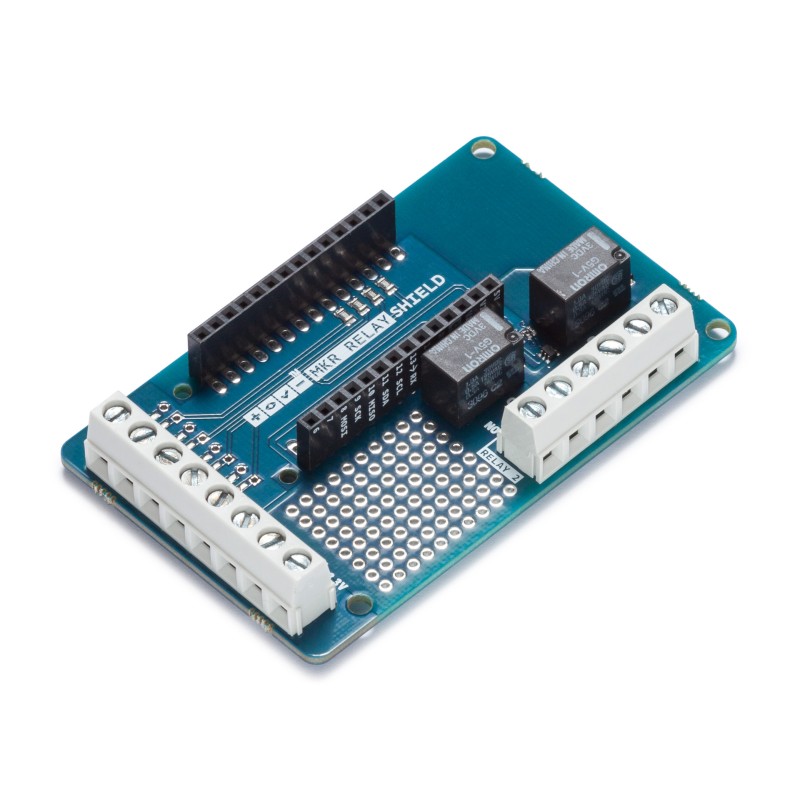

The MKR Relay Proto Shield allows you to easily control relays with your MKR board. The shield features two onboard relays and a small prototyping area if you want to add another component to your project.

Arduino® MKR Relay Proto

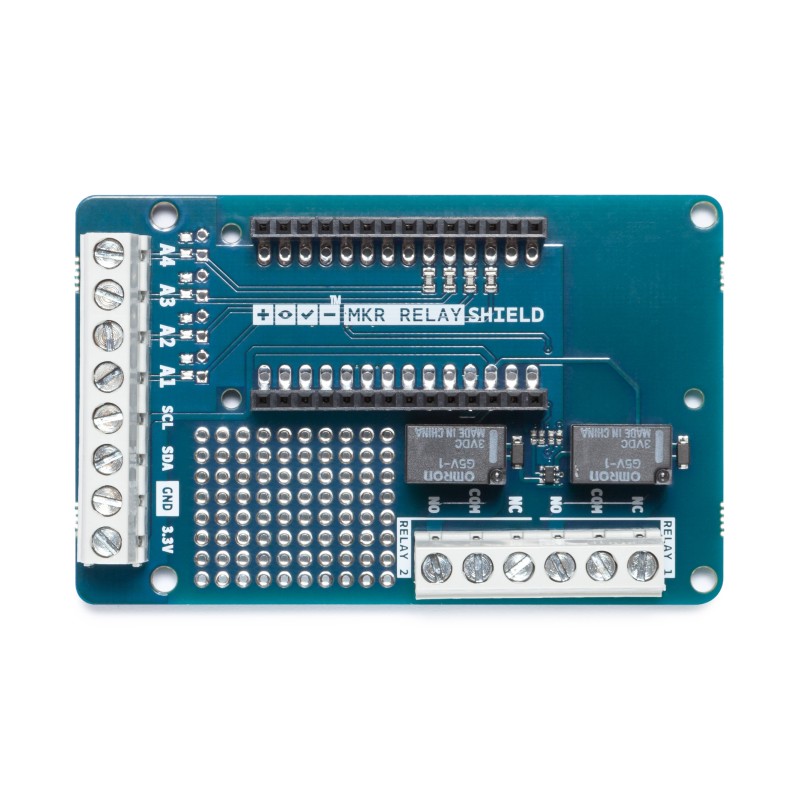

The MKR Relay Proto Shield allows you to easily add relays to your MKR board-based project. The shield provides two relays, called RELAY1 and RELAY2, controlled by pins 1 and 2, respectively. The shield also allows for easy connection via screw terminals at A1 through A4.

Technical specifications

• Operating voltage 3.3V (supplied from the host board)
• Two relays with NO , COM and NC connections
• Works with battery powered board
• 8 positions screw terminal blocks for easy connections with A1 to A4 Analog input, SCL SDA for I2C, GND and 3.3V output
• 6 positions screw terminal blocks (NO, COM, NC for each relay)
• Carrying current: 2 A
• Max. operating voltage: 24 VAC, 50 VDC
• Max. operating current: 1 A
• Max. switching capacity: 62.50 VA, 30W
• Proto area
