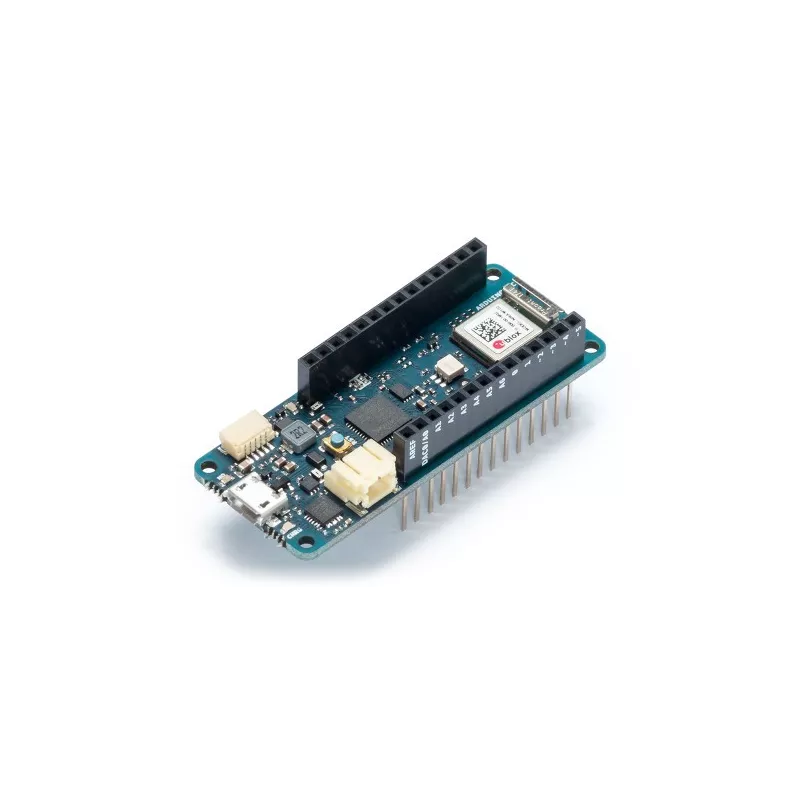

Arduino® Board MKR WiFi 1010 (WLAN)
Arduino® Board MKR WiFi 1010 (WLAN)
WiFi!
Want to add a WiFi interface to your devices? Get the MKR WIFI 1010! It connects easily to other Arduino products and is configurable using Arduino software—and you don't need to be a networking expert. This is the latest version of the MKR 1000 WIFI, but with an ESP32 module from U-BLOX on board.
Arduino® MKR WiFi 1010
The MKR WIFI 1010 is a significant improvement over the MKR 1000 WIFI. It features an ESP32 module from U-BLOX. This board aims to accelerate and simplify the prototyping of WiFi-based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption.
Technical specifications
| Microcontroller | SAMD21 Cortex-M0+ 32bit Low Power ARM MCU |
| Board Power Supply (USB/VIN) | 5V |
| Supported Battery(*) | Li-Po Single Cell, 3.7V, 700mAh minimum |
| Circuit Operating Voltage | 3.3V |
| Digital I/O pins | 8 |
| PWM pins | 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19) |
| UART | 1 |
| SPI | 1 |
| I2C | 1 |
| I2S | 1 |
| Connectivity | WiFi |
| Analog input pins | 7 (ADC 8/10/12 bit) |
| Analog output pins | 1 (DAC 10 bit) |
| External interrupts | 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17) |
| DC Current per I/O Pin | 7 mA |
| Flash Memory | 256 KB |
| SRAM | 32 KB |
| EEPROM | No |
| Clock Speed | 32.768 kHz (RTC), 48 MHz |
| LED_BUILTIN | 6 |
| Full-speed USB device and embedded host | Included |
| LED_BUILTIN | 6 |
| Length | 61.5 mm |
| Width | 25 mm |
| Weight | 32 g |
