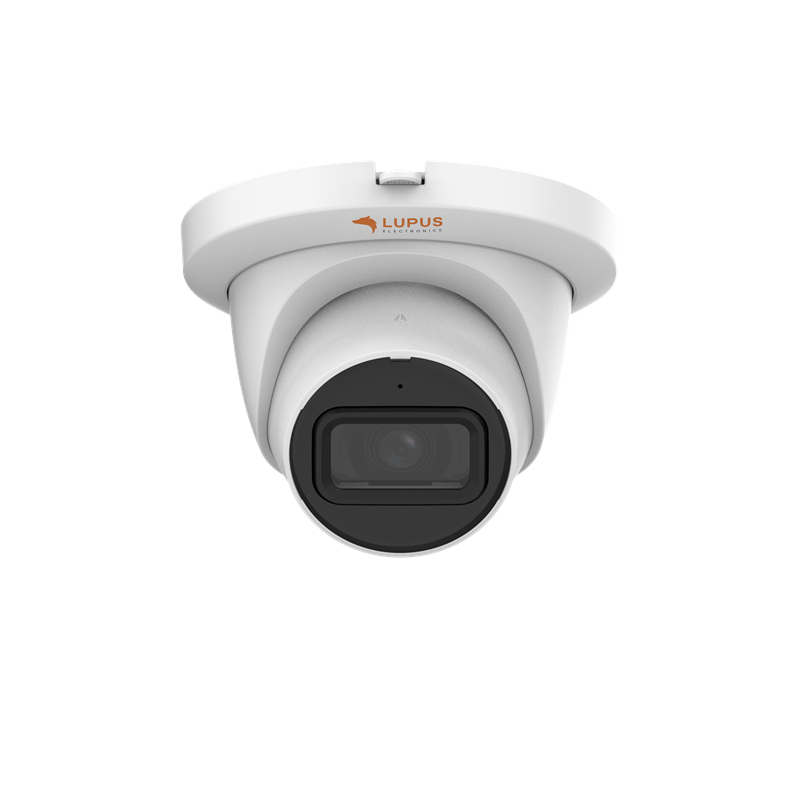

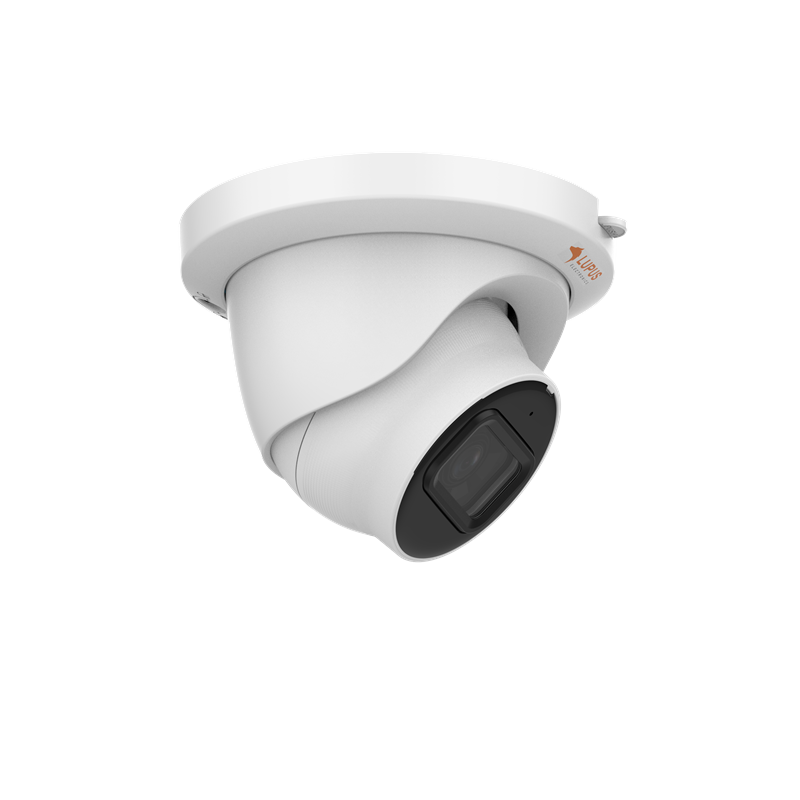

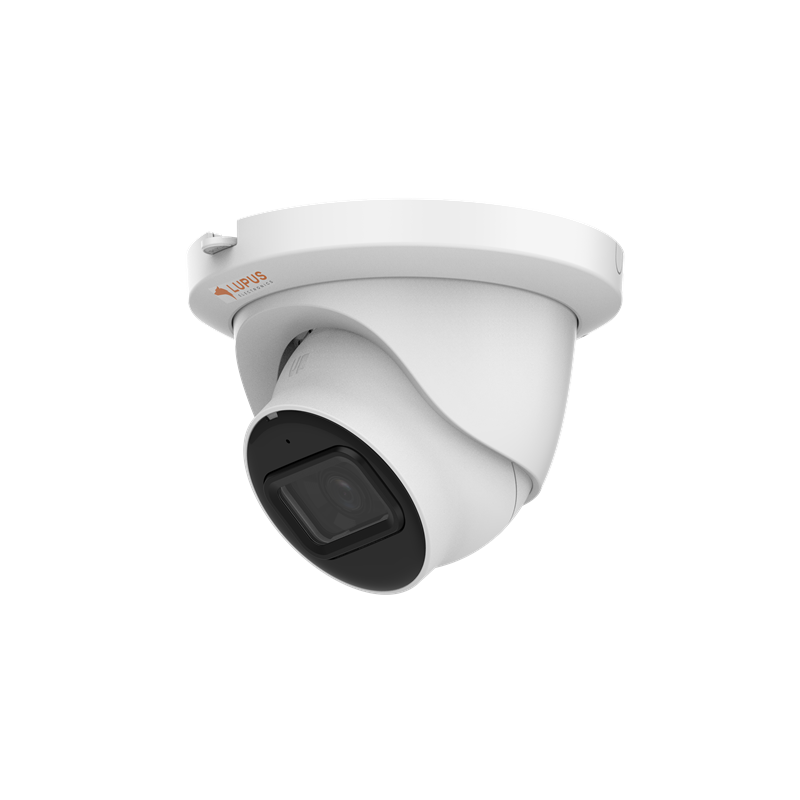

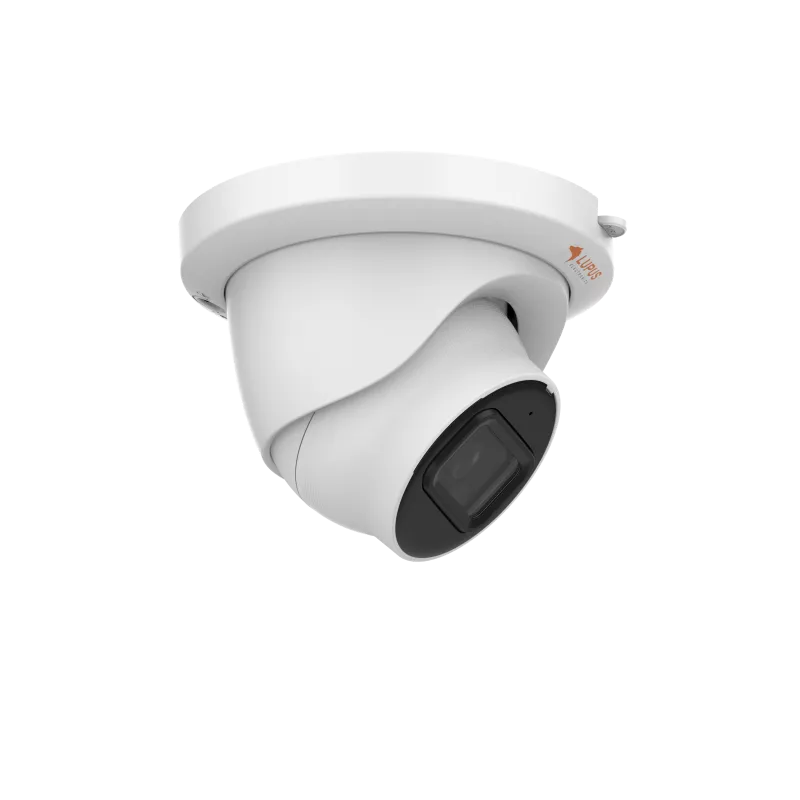

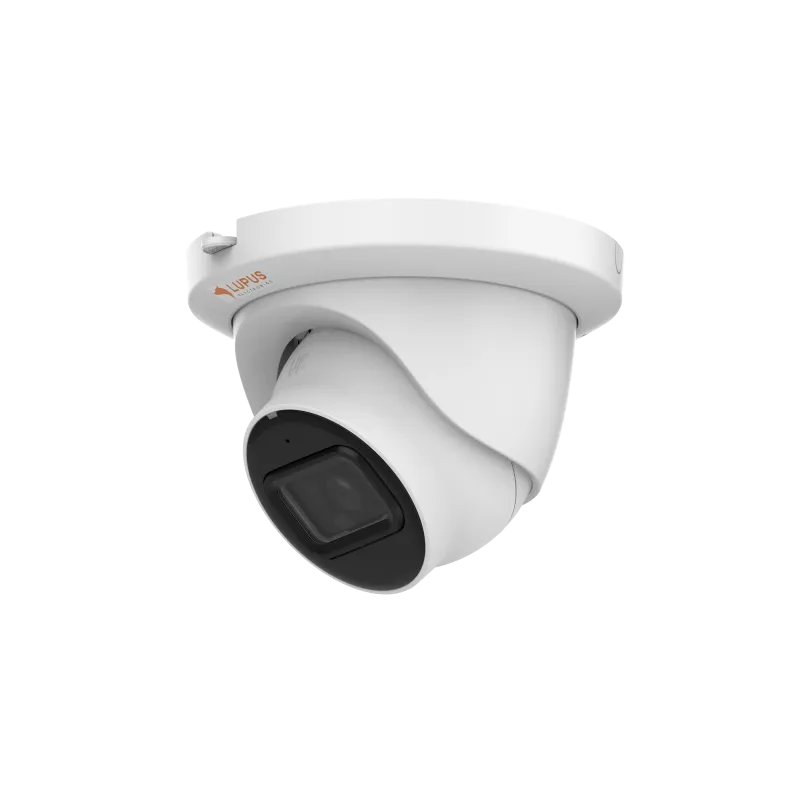

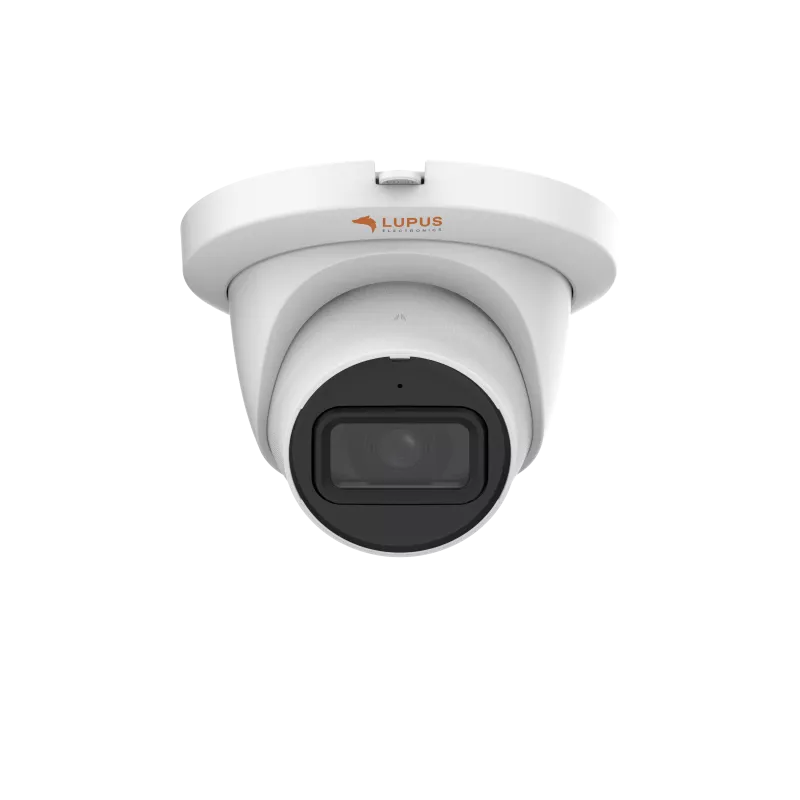

LUPUS - LE337HD GEODOME dome camera 720p outdoor

Weatherproof outdoor camera with night vision and 720P HD resolution

Minimal dimensions - maximum video surveillance: With a tiny Ø113.6mm x (H)85.4mm, the LE 337HD Geodome creates security wherever particularly discreet observation is required. Despite its small size, this mini dome has an extremely stable, vandal-proof and weatherproof housing (IP66). The 1.4 megapixel CMOS chip ensures particularly color-fast images and strong image quality. The camera requires only 0.01 lux and has a fixed viewing angle of 70°.

Plug and Play - HD over existing CCTV cabling

The new HD video technology transmits up to 2 megapixels over the conventional CCTV infrastructure with coaxial cables. A cumbersome conversion to IP video surveillance with network cables is therefore unnecessary and saves enormous costs. In contrast to network camera technology, the video images are transmitted uncompressed and in real time.

Product Highlights:

• 720p HDTV surveillance camera (1280x720 pixels)
• Night vision range: 20 meters with Smart IR
• Weatherproof and impact resistant (IP66)
• Cabling via coaxial cable (RG59)

Technical data:

• Image sensor: 1/3“ (8.5mm) 1.4 megapixel CMOS sensor
• Effective image resolution: 1305(H) x 1049 (V)
• Output resolution: 1280 x 720 pixels (HD)
• Electronic shutter: 1/3s~1/100,000s
• Minimum lighting conditions: 0.01 Lux @ F1.2 (AGC ON), 0 Lux IR on
• Digital image enhancement methods: ICR, AWB, AGC, BLC, 3D-DNR, Smart IR
• Synchronization: Internal
• Video output: 1 channel BNC HD, high-resolution video output / CVBS standard video output (changeable)
• Video frame rate: 25/30 FPS @ 720p
• Alarm connections: 1 x alarm input and output
• Audio connections: 1 x audio input
• Power supply: DC12V (+-10%)
• Power consumption: Max. 3.3W
• Operating environment: -30°C to +60°C
• Transmission range: approx. 500 meters via RG59 coaxial cable
• Protection class: IP66
• Dimensions: Ø113.6mm x 85.4mm
• Weight: 0.35kg
• Digital image enhancement methods: ICR, AWB, AGC, BLC, 3D-DNR, Smart IR
• Synchronization: Internal
• Video output: 1 channel BNC HD, high-resolution video output / CVBS standard video output (changeable)

• Max. night vision range: 20 meters with SmartIR (automatic intensity control)
• Day/night function: Automatic IR cut filter
• Noise reduction: 2D and 3D
• OSD Menu: Yes

• Focal length: 3.6mm
• Viewing angle: 70° (horizontal)
• Lens type: fixed

Scope of delivery:

• 1x LUPUSNIGHT® - LE 337HD dome camera 720p IR IP66 outdoor
• 1x 12V power supply included
• 1x User Manual
• 1x screw set with dowels
• 1x drilling template
