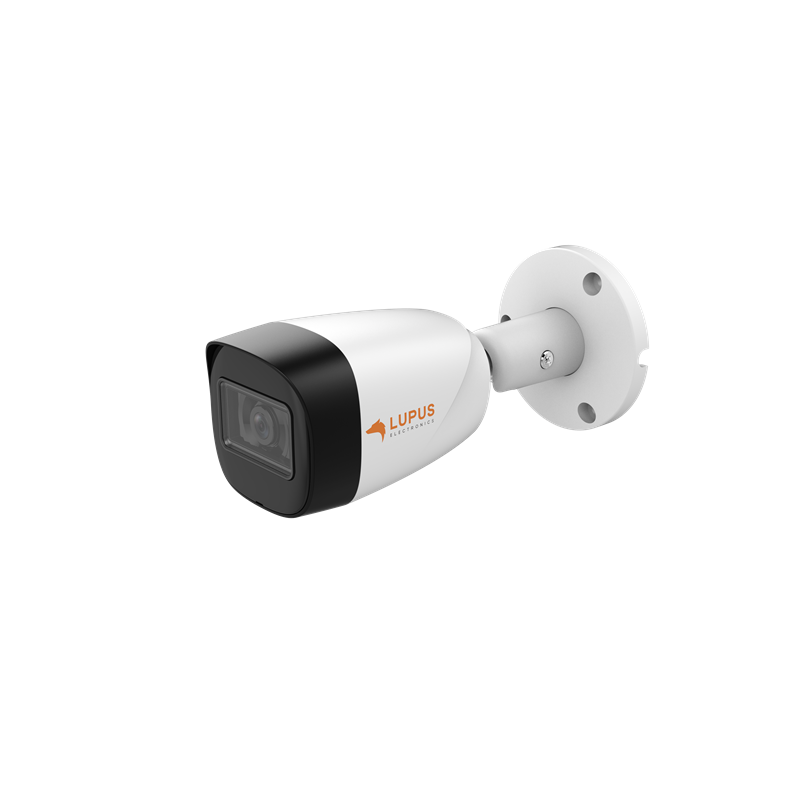

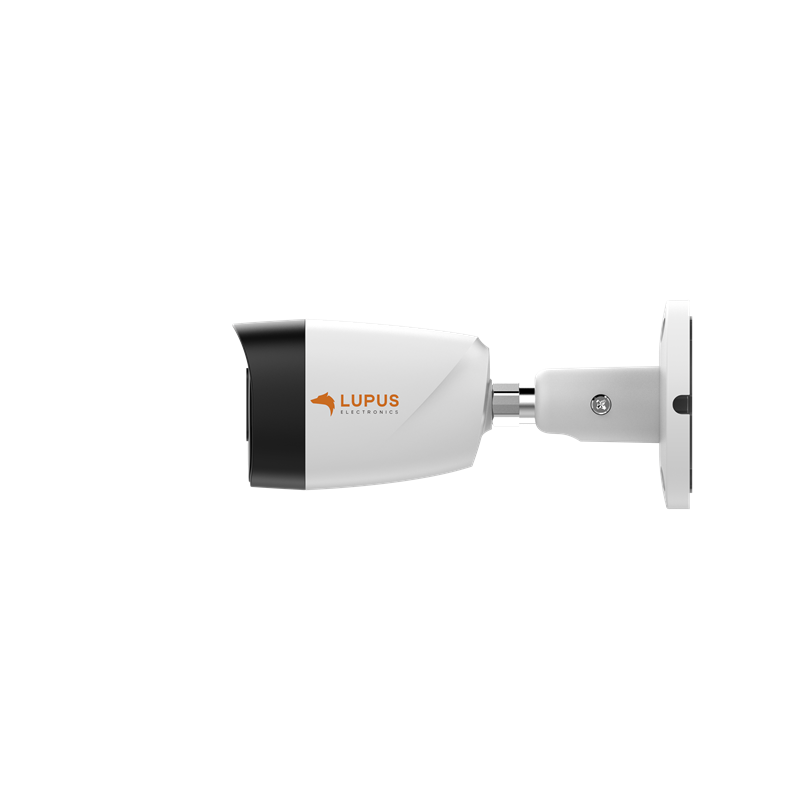

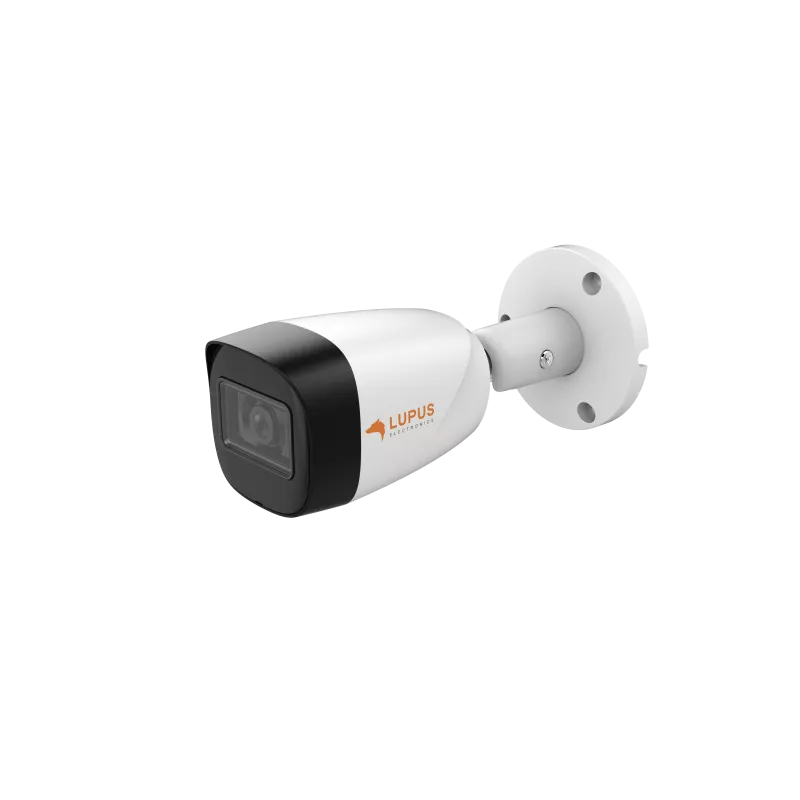

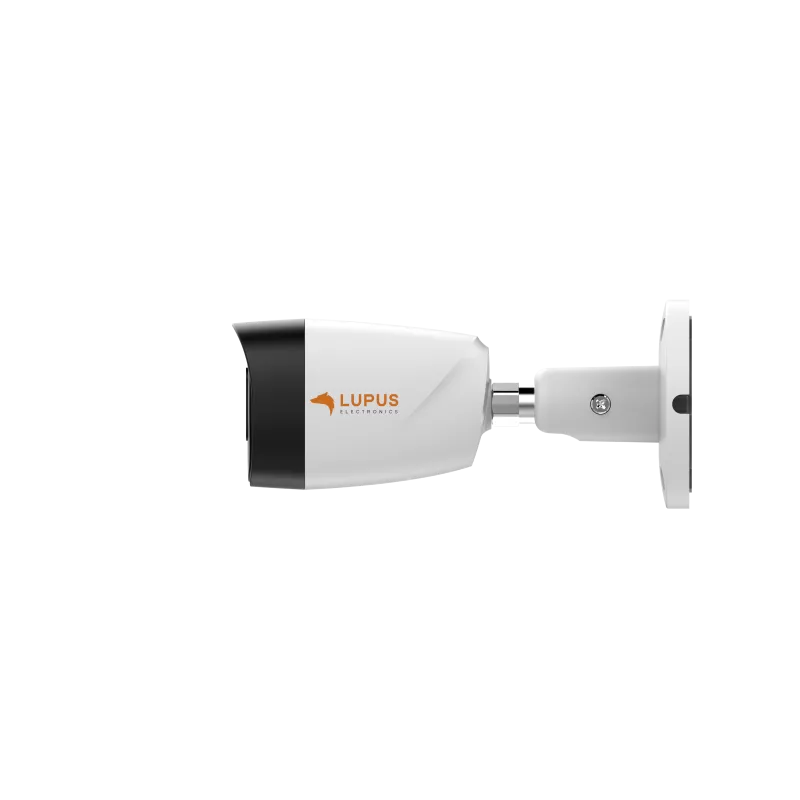

LUPUS - LE139HD LUPUSNIGHT surveillance camera 1080p

Weatherproof HD outdoor camera with night vision

The LUPUSNIGHT - LE 139HD enables top image quality in FullHD (1920x1080 pixels) with particularly small housing dimensions thanks to the new HD video technology. In addition, in contrast to conventional HD-SDI technology, cable lengths of up to 300 meters (RG59) can be laid. We have placed particular emphasis on the outdoor suitability of this small all-rounder: the integrated IR LEDs illuminate the surroundings at night up to a maximum of 30 meters and the IP66 protection class means it is safely protected against even the most adverse environmental influences.

Plug and Play - HD over existing CCTV cabling

The new HD video technology transmits up to 2 megapixels over the conventional CCTV infrastructure with coaxial cables. A cumbersome conversion to IP video surveillance with network cables is therefore unnecessary and saves enormous costs. In contrast to network camera technology, the video images are transmitted uncompressed and in real time.

Product Highlights:

• 1080p FullHD analog camera (1920x1080 pixels)
• 4.3mm lens with IR-cut filter (70°)
• Night vision range: 30 meters with Smart IR
• Weatherproof (IP66)
• Cabling via coaxial cable (RG59) up to max. 300m

Technical data:

• Image sensor: 1/2.8“ (8mm) 2.4 megapixel CMOS sensor
• Effective image resolution: 1984(H) x 1225(V)
• Output resolution: 1920 x 1080 pixels (FullHD)
• Electronic shutter: 1/3s~1/100,000s
• Minimum lighting conditions: 0.05Lux @ F1.2 (AGC ON), 0Lux IR on
• Digital image enhancement methods: ICR, AWB, AGC, BLC, 3D-DNR, Smart IR
• Synchronization: Internal
• Video output: 1 channel BNC HD, high-resolution video output / CVBS standard video output (changeable)
• Video frame rate: 25/30/50/60 FPS @ 720p, 25/30 FPS @ 1080p
• Alarm connections: 1 x alarm input and output
• Audio connections: 1 x audio input
• Power supply: DC12V, AC24V (+-10%)
• Power consumption: Max. 4.8W
• Operating environment: -30°C to +60°C
• Transmission range: approx. 300 meters via RG59 coaxial cable
• Protection class: IP66
• Dimensions: Ø65mm x 154.7mm
• Weight: 0.38kg

Camera functions

• Max. night vision range: 30 meters with SmartIR (automatic intensity control)
• Day/night function: Automatic IR cut filter
• Noise reduction: 2D and 3D
• OSD Menu: Yes

lens

• Focal length: 3.6mm
• Viewing angle: 70° (horizontal)
• Lens type: DC Auto Iris lens

Scope of delivery:

• 1x LUPUSNIGHT® - LE139HD surveillance camera IP66 outdoor
• 1x 12V power supply included
• 1x User Manual
• 1x screw set with dowels
• 1x drilling template
