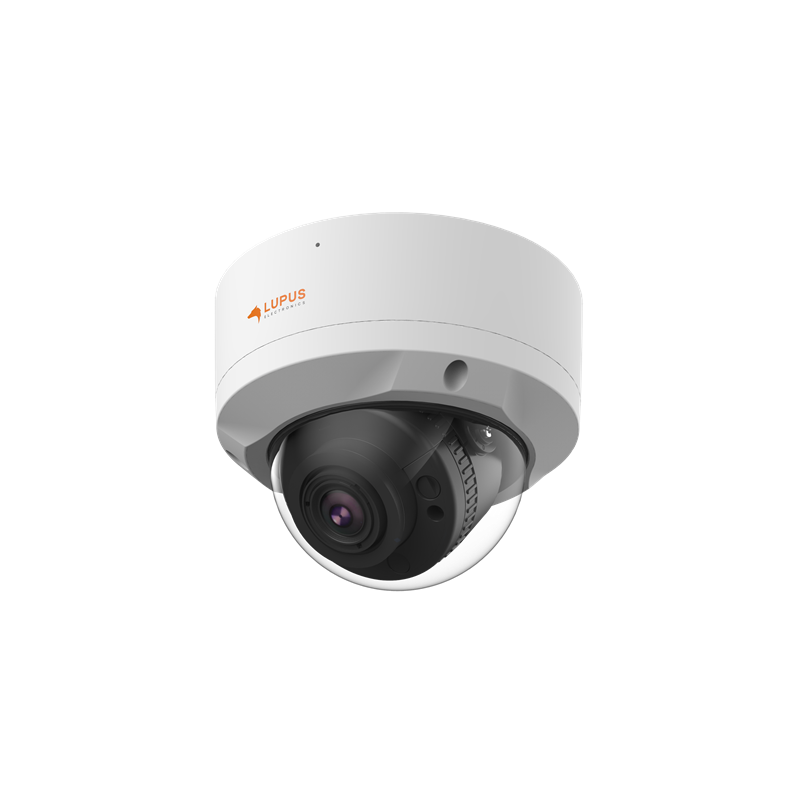

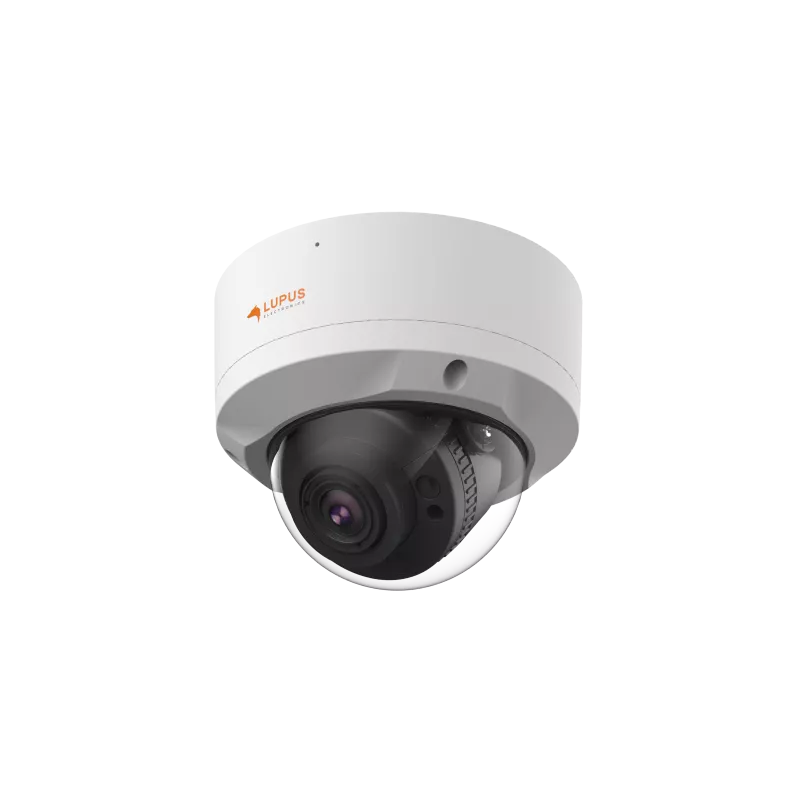

LUPUS - LE338HD GEODOME Dome camera 1080p

Weatherproof HD outdoor camera with night vision

The brand new GEODOME – LE338HD is the innovative HDTV indoor and outdoor dome from LUPUS-Electronics. With this model, LUPUS-Electronics has developed a dome camera that is particularly characterized by its universal usability and flexibility.

The integrated 2.4 megapixel sensor ensures excellent image properties, especially in poor and diffuse lighting conditions. A mechanical IR cut filter has been integrated, which can be individually adjusted to the local conditions.

The same applies to the built-in varifocal lens, which offers high flexibility during installation with focal lengths of 2.7-12.0 mm.

The GEODOME – LE 338HD is therefore particularly suitable for commercial projects such as supermarkets, department stores, shops and office buildings.

Plug and Play - HD over existing CCTV cabling

The new HD video technology transmits up to 2 megapixels over the conventional CCTV infrastructure with coaxial cables. A cumbersome conversion to IP video surveillance with network cables is therefore unnecessary and saves enormous costs. In contrast to network camera technology, the video images are transmitted uncompressed and in real time.

Product Highlights:

• FullHD HDTV surveillance camera (1920x1080 pixels)
• Adjustable zoom (2.7 - 12.0mm varifocal lens / F2.0 with IR-cut filter)
• Night vision range: 30 meters with Smart IR
• Weatherproof and impact resistant (IP66)
• Cabling via coaxial cable (RG59)

Technical data:

• Image sensor: 1/2.8" CMOS
• Effective image resolution: 1937(H) x 1097(V)
• Output resolution: 1920 x 1080 pixels (FullHD)
• Electronic shutter: 1/4s~1/100,000s
• Minimum lighting conditions: 0.005Lux @ F1.3 (AGC on), 0Lux (IR on)
• Digital image enhancement methods: ICR, AGC, BLC, HLC, WDR, 3DNR, Smart IR
• Video output: 1 channel BNC HD, high resolution video output
• Video frame rate: 25/30 FPS @ 720p, 25/30 FPS @ 1080p
• Alarm connections: None
• Audio connections: None
• Power supply: DC12V (+-10%)
• Power consumption: Max 5.4W (IR On)
• Operating environment: -30°C to +60°C
• Transmission range: approx. 300 meters via RG59 coaxial cable
• Protection class: IP67 & IK10
• Dimensions: Ø120mm x 90mm
• Weight: 0.5kg

Camera features:

• Max. night vision range: 30 meters with SmartIR (automatic intensity control)
• Day/night function: Automatic IR cut filter
• Noise reduction: 2D and 3D
• OSD menu (via recorder): Yes

Lens:

• Focal length: 2.7 to 13.5mm
• Viewing angle: 102° to 29° (horizontal)
• Lens type: Motor lens, fixed iris

Scope of delivery:

• 1x LUPUSNIGHT® - LE 338HD dome camera FULL HD IR 1080p IP66 IK10 Vandal outdoor
• 1x 12V power supply included
• 1x User Manual
• 1x screw set with dowels
• 1x drilling template
