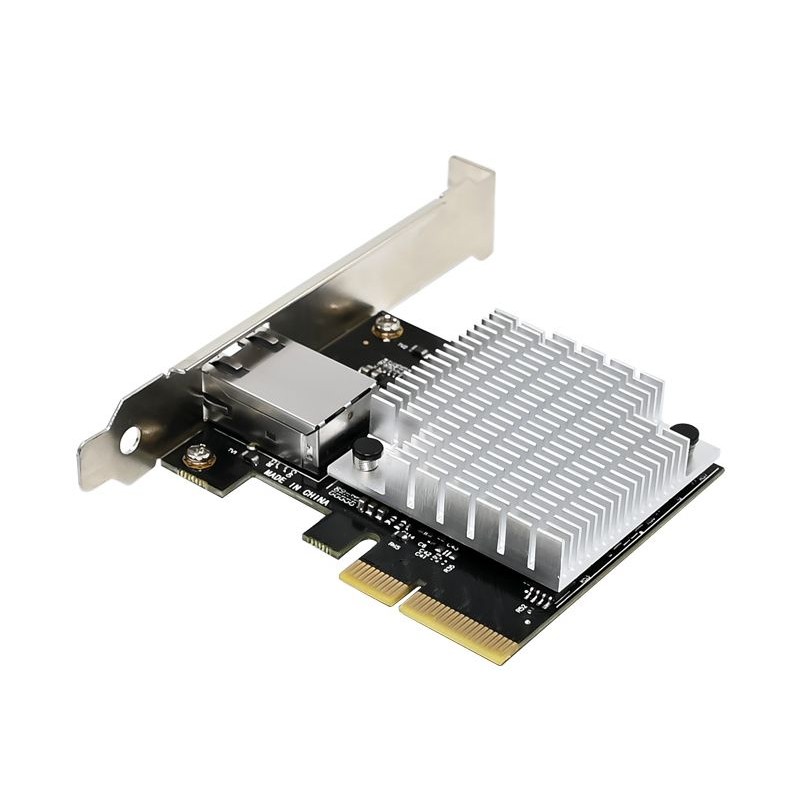

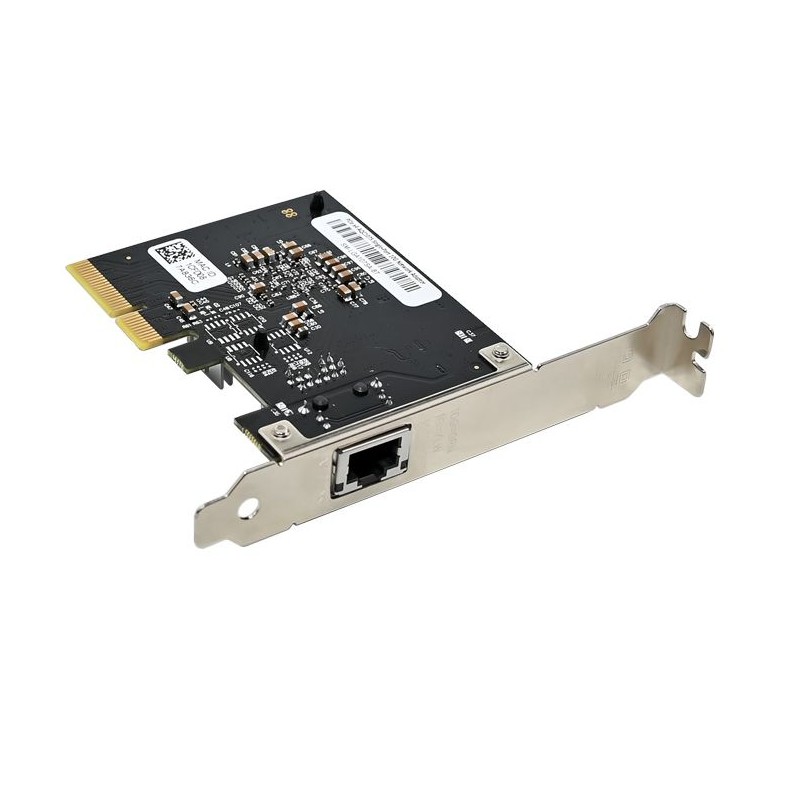

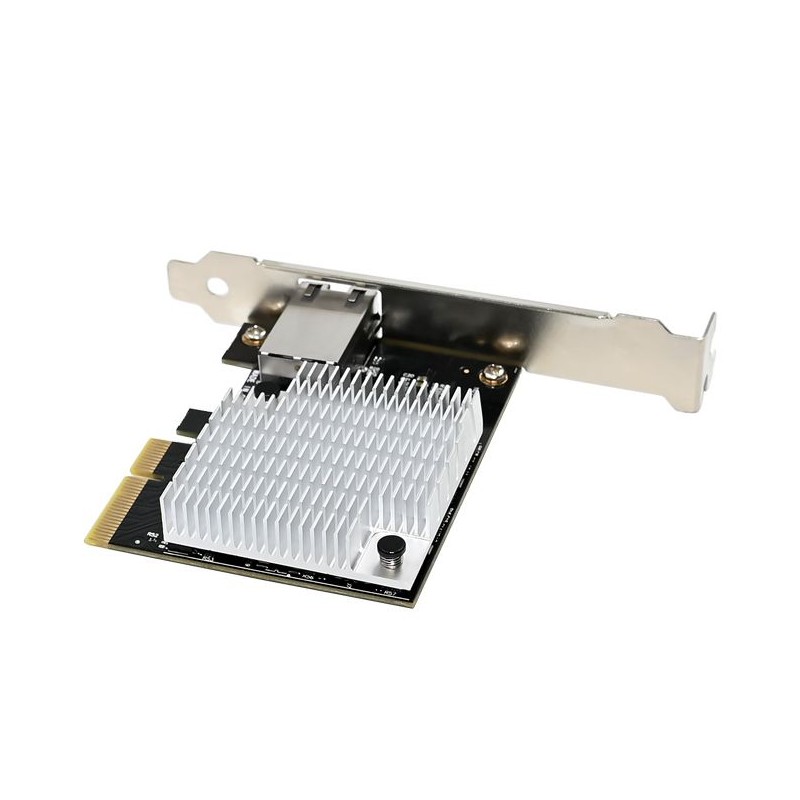

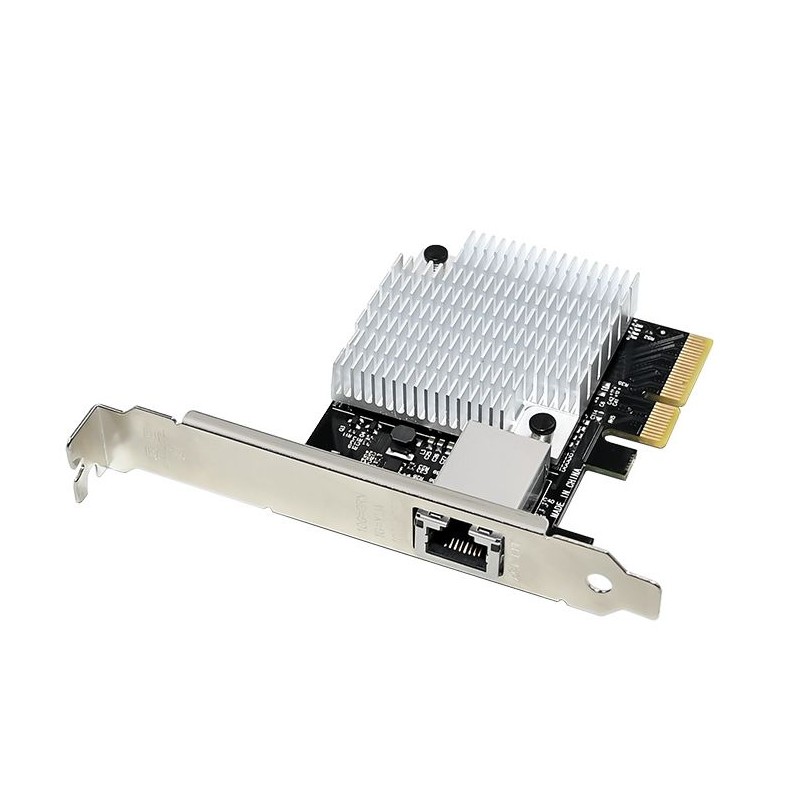

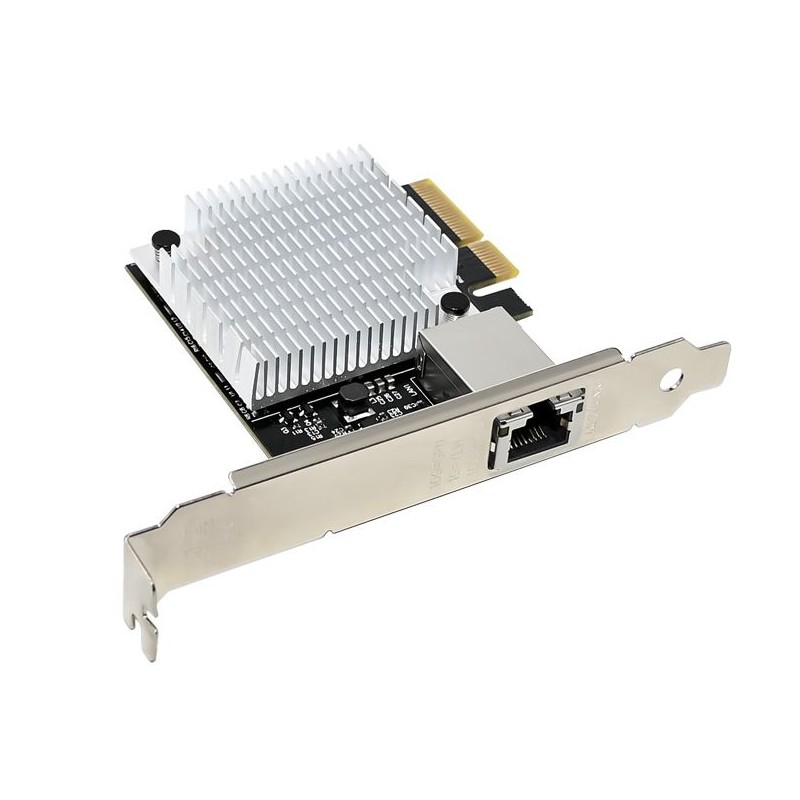

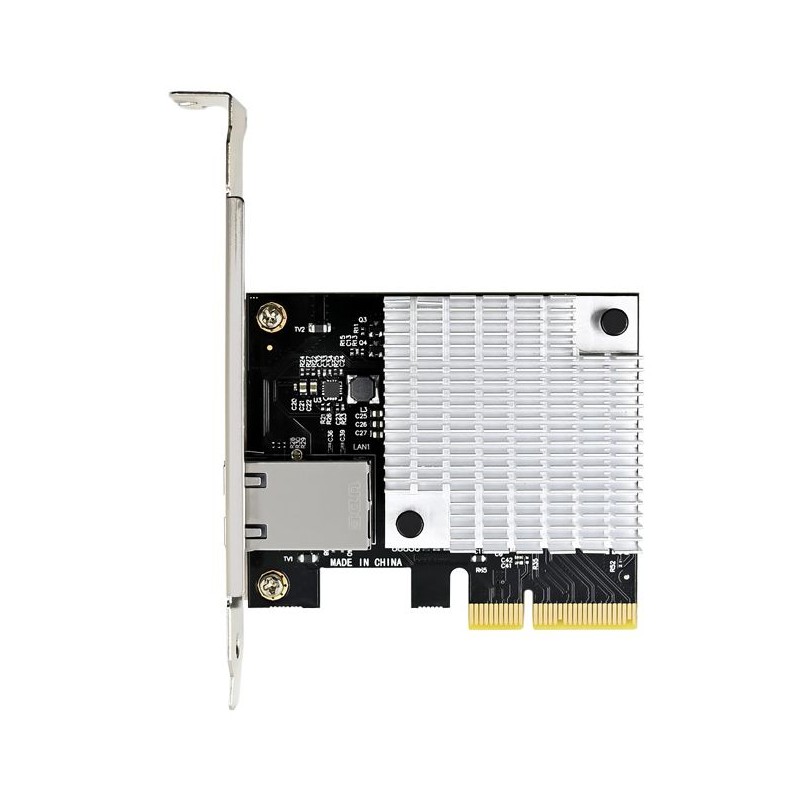

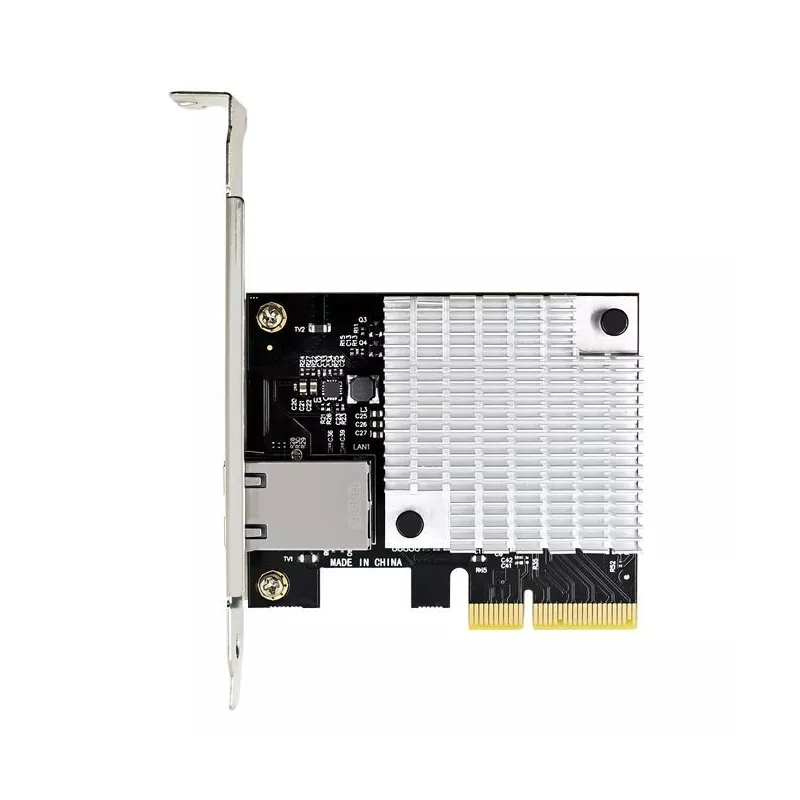

ALLNET PCIe 10G X4 10G/5G/2,5G/1GBit Single Port PCIe LAN Card - Copper RJ45 "NbaseT" ALL0138v4-1-10G-TX

Highlights:

The PCIe x4 AQC107S 10GbE Ethernet card is a high-performance, multi-gigabit Ethernet card that supports the 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T, the AQtion Ethernet controller easily handles the 10GbE Line-rate performance.

The AQC107 incorporates Aquantia’s AQrate PHY technology which delivers 10GbE network connectivity speed through Cat 6a, and delivers 5 GbE and 2.5 GbE network connectivity speed through 100 meters of Cat 5e or better cabling enabling higher data rates with zero change to legacy cabling.

FEATURES

- Compliant with PCIE Express Revision 3.0 and downstream with PCI Express Reivison 2.0

- Supports line rate of 8.0GT/s and 5.0GT/s per lane

- Supports communication and management function

- Integrated Aquantia AQrate PHY featuring NBASE-T technology

- Supports PHY specifications with 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T /100BASE-T.

- On-chip high resolution cable analyzer for advanced cable diagnostics

- Energy Efficient Ethernet (EEE) Support

- Supports IEEE1588v2 Precision Time Protocol

- Support large send offload, Receive Side Scaling (RSS), Direct Cache Access (DCA) and Header checksum for increased network performance and lower host CPU utilization

- Supports IPv4, IPv6 and IPv6/UDP checksum offload

- Supports Jumbo frame (up to 16kbytes)

- Quality of Service (QoS)

- Supports up to eight traffic classes and Data Center Bridging (DCB)

Target Applications

- Marvell AQtion power leading -edge solutions for motherboards, PCs, Workstations, docking station, NAS, Router, Gateways and other embedded applications

System Requirements

- Drivers: Windows 10/8.1/8/7, Linux 3.10 and higher

- Utilities: ROM programming and Windows Installer

- Boot Options: UEFI and PXE
