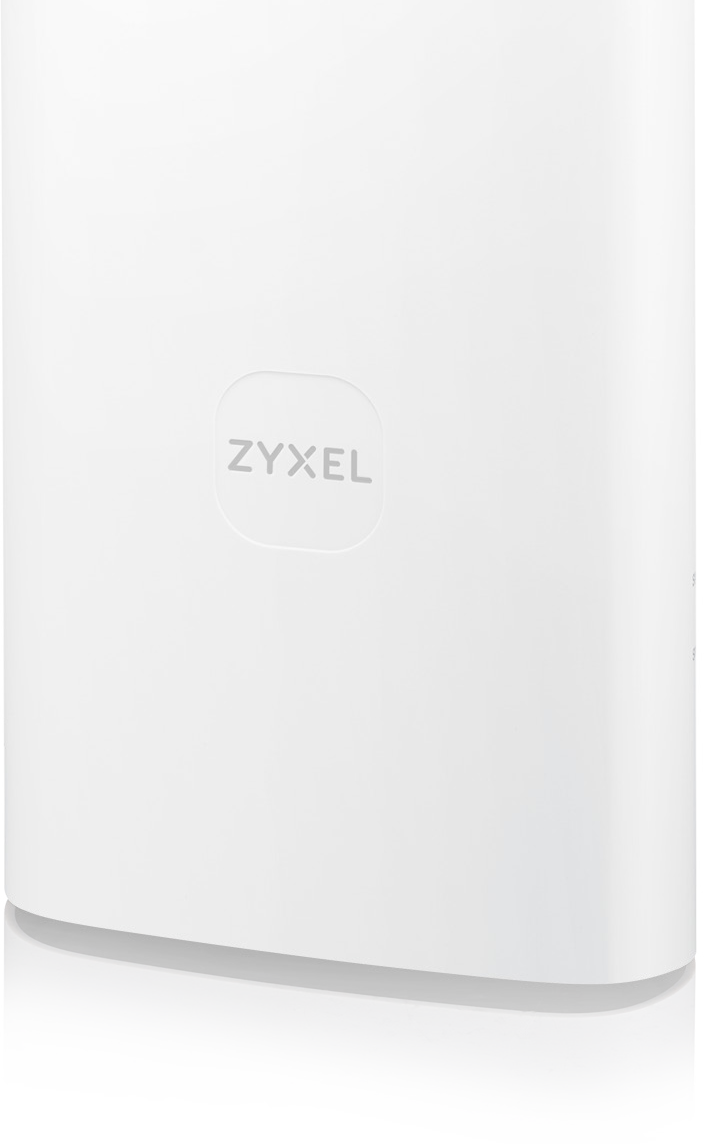

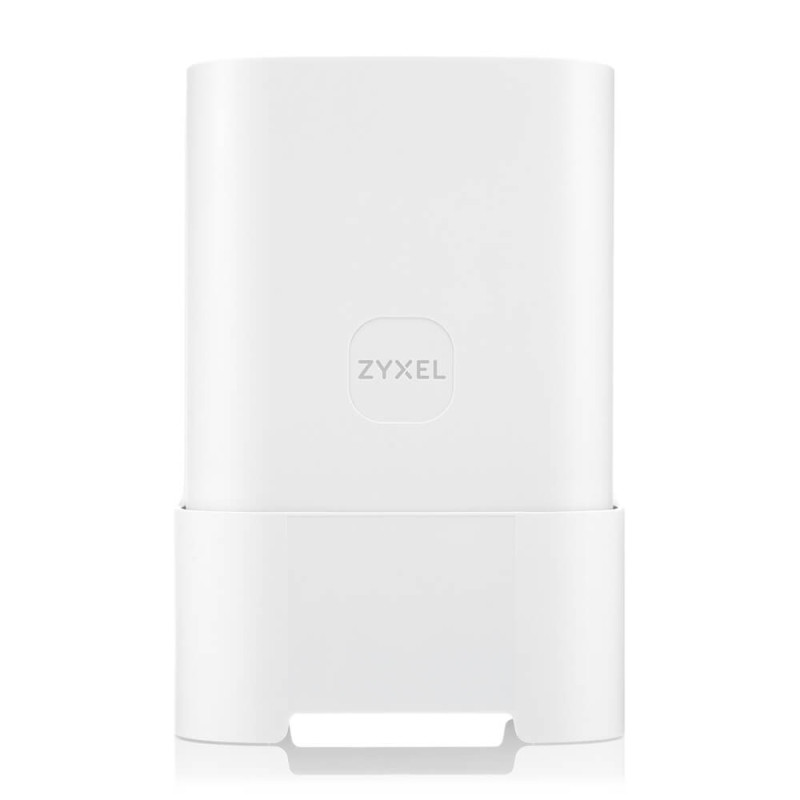

Nebula FWA70

Nebula 5G FWA Outdoor/Indoor Router

5G connectivity built for real-world conditions The FWA70 features IP55-rated dust and water protection, –30°C to 55°C operating temperature, K.21 6KV surge

protection, and level 12 wind resistance. You can rely on

stable performance even when the weather turns extreme.

Stay connected. Stay ahead.

Skip the wait and high costs of wired internet with the FWA70. Powered by 5G NR Sub-6 GHz, it delivers instant high-speed access with download rates of up to 7 Gbps*, supported

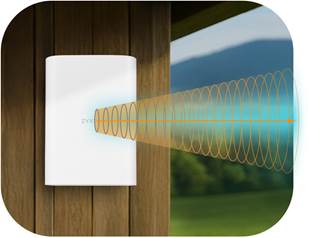

by 4x4 MIMO high-gain directional antennas (up to 9 dBi per element) for stronger coverage and consistently stable performance.

Fast setup. Smarter connectivity.

The FWA70 supports Nano SIM insertion for immediate

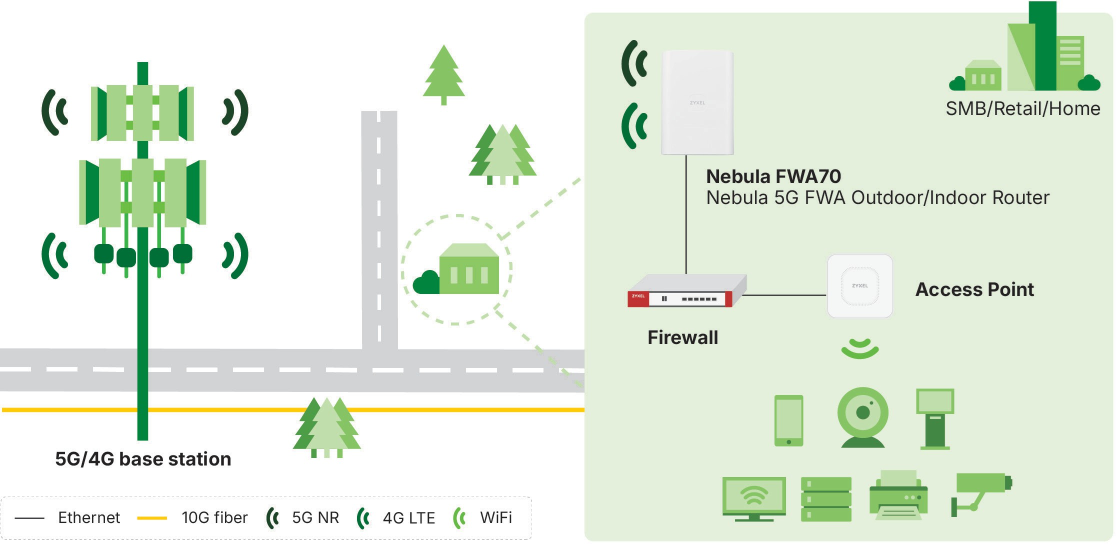

5G connectivity. Designed for homes, small offices, and prosumers, it features easy installation and high-performance operation. The 2.5mGig (multi-gig) PoE LAN port delivers both power and data over a single cable, while the Zyxel

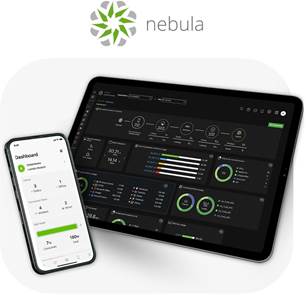

One app assists in identifying optimal signal placement. Nebula further simplifies setup, monitoring, and network management.

Sustainable by design

The FWA70 uses recycled paper packaging. Beyond packaging, we care about performance — and the planet. An advanced power-saving mode helps minimize energy waste, while consumption tracking via the Zyxel One app or web GUI empowers you to monitor and manage energy usage responsibly.

Specifications

System specifications

IP networking

• Supports IPv4/IPv6 dual stack (NDP IPv6)
• DHCP server
• ICMP supported
• Virtual Private Network (VPN)

pass-through

NAT

• Supports NAT/NAPT
• Supports NAT enable/disable
• Supports port forwarding
• Supports port triggering
• Supports DMZ/ALG

Routing

• Supports router mode or bridge (IP

pass-through) mode

• Supports dynamic DNS for first APN
• Supports remote management under bridge mode

IP firewall

• Firewall can be enabled or disabled via GUI DoS attack detection
• Supports SPI
• Application-level firewall
• Filters LAN MAC address
• Filters LAN IP address
• Filters URLs

Management

• Supports local/remote device management (HTTP, HTTPS)/Web GUI and firmware upgrade
• Supports TR-069 remote firmware upgrade management with TR-181 data model
• APN management
• PIN/PUK management
• Network selection
• Network preference
• Operating frequency band selection
• CLI/SSH (local and remote SSH

access)

• Supports UPnP IGD
• Supports SSH with key access
• Supports remote throughput testing by

TR-143

• Supports Zyxel One app (iOS and Android) for easy installation and local management
• Supports device azimuth information reporting
• Supports device power consumption reporting

Hardware specifications

5G NR interface

• 3GPP Release 16 standard-compliant
• Supports both NSA and SA modes
  • FDD: n1/n3/n5/n7/n8/n20/n28
  • TDD: n38/n40/n41/n75/n77/n78
• Supports DL 4x4 MIMO: n1/n3/n5/n7/ n8/n20/n28/n38/n40/n41/n77/n78
• Data rates:
  • 5G SA: DL 7.01 Gbps UL 2.5 Gbps*
  • 5G NSA: DL 5.67 Gbps UL 1.46

Gbps*

• Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Output power:
  • Class 1.5: 29 dBm +2/-3 dBm for n41/n77/n78
  • Class 2: 26 dBm +2/-3 dBm for n41/n77/n78
  • Class 3: 23 dBm ±2 dBm for rest

FDD/TDD 5G NR bands

4G LTE interface

• 3GPP Release 16 standard-compliant
• Supports frequencies:
  • FDD: B1/B3/B5/B7/B8/B20/B28/B32
  • TDD: B38/B40/B41/B42/B43
• Supports DL 4x4 MIMO: B1/B3/B5/B7/ B8/B20/B28/B38/B40/B41/B42/B43
• Peak data rates:
  • Max. DL 1.6 Gbps/UL 211 Mbps*
• Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Output power:
  • Class 3: 23 dBm ±2 dBm for rest

FDD/TDD LTE bands

• • Class 2: 26 dBm +2/-3 dBm for B41

5G/4G antennas

• Four embedded directional antennas

  • Ultra-high band: up to 9 dBi peak gain
  • High band: up to 7 dBi peak gain
  • Middle band: up to 7 dBi peak gain
  • Low band: up to 1 dBi peak gain

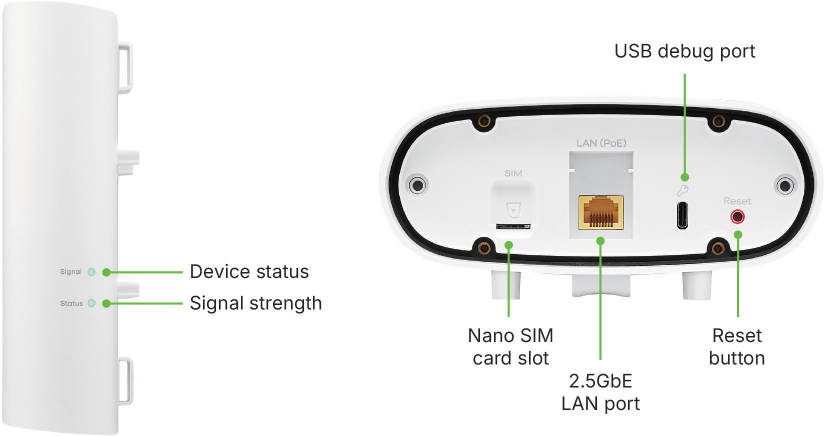

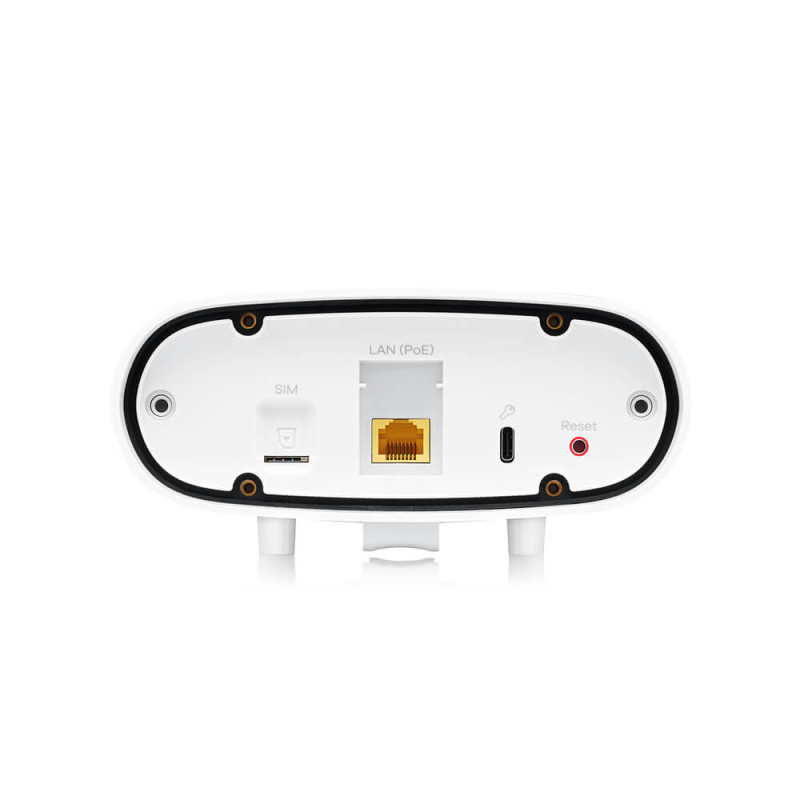

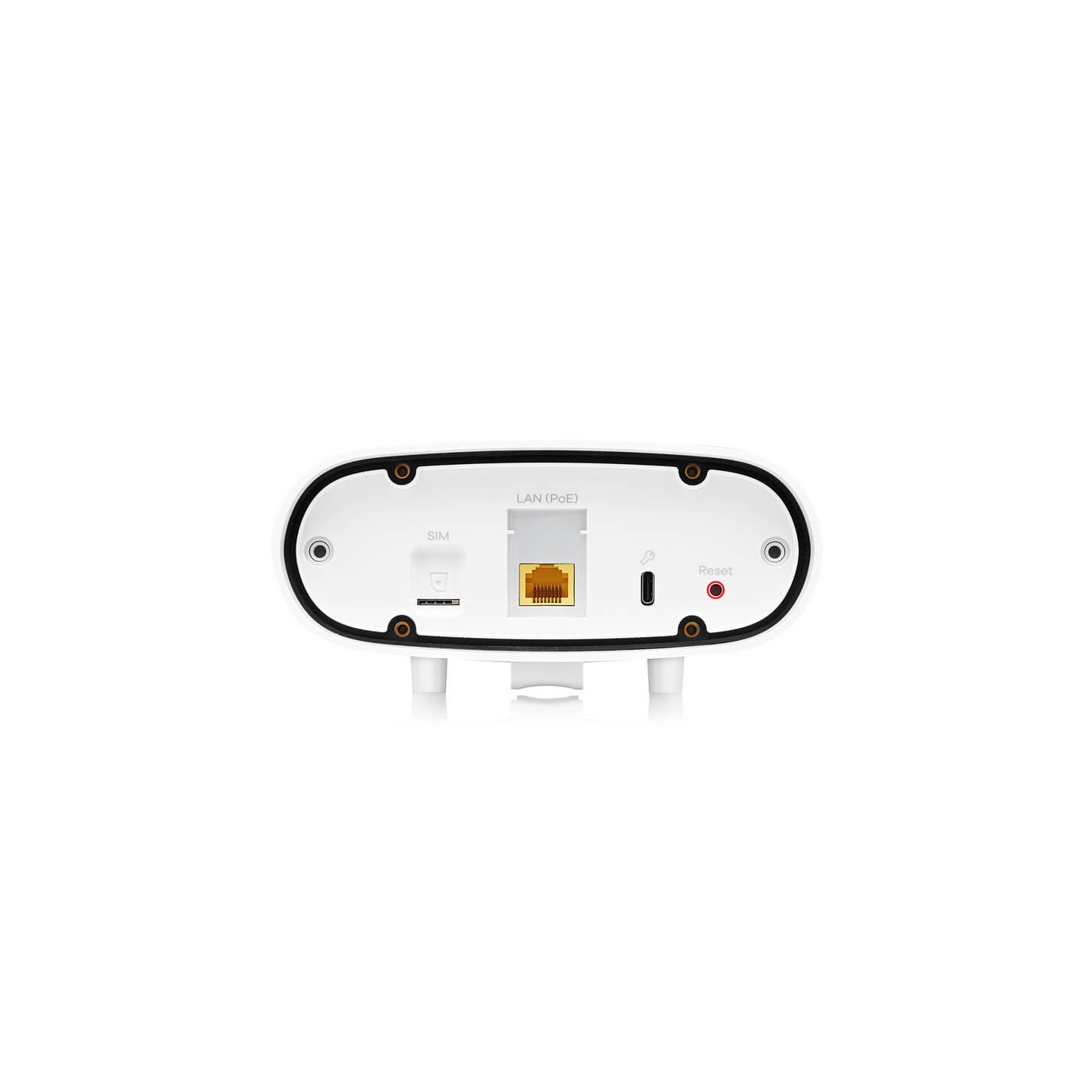

Hardware interface

• One 2.5GbE RJ-45 PoE LAN port
• One troubleshooting USB port

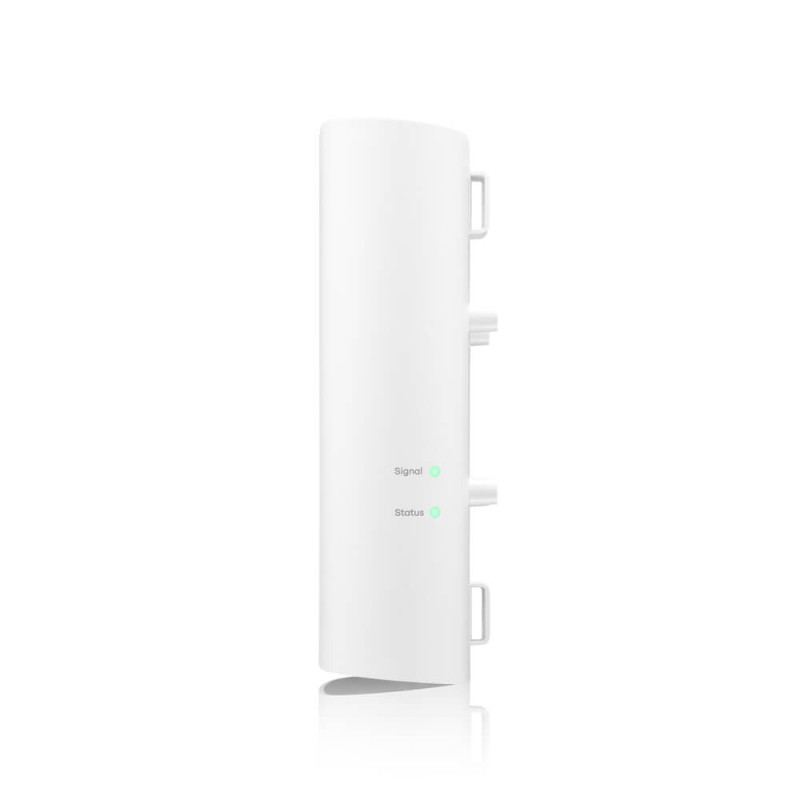

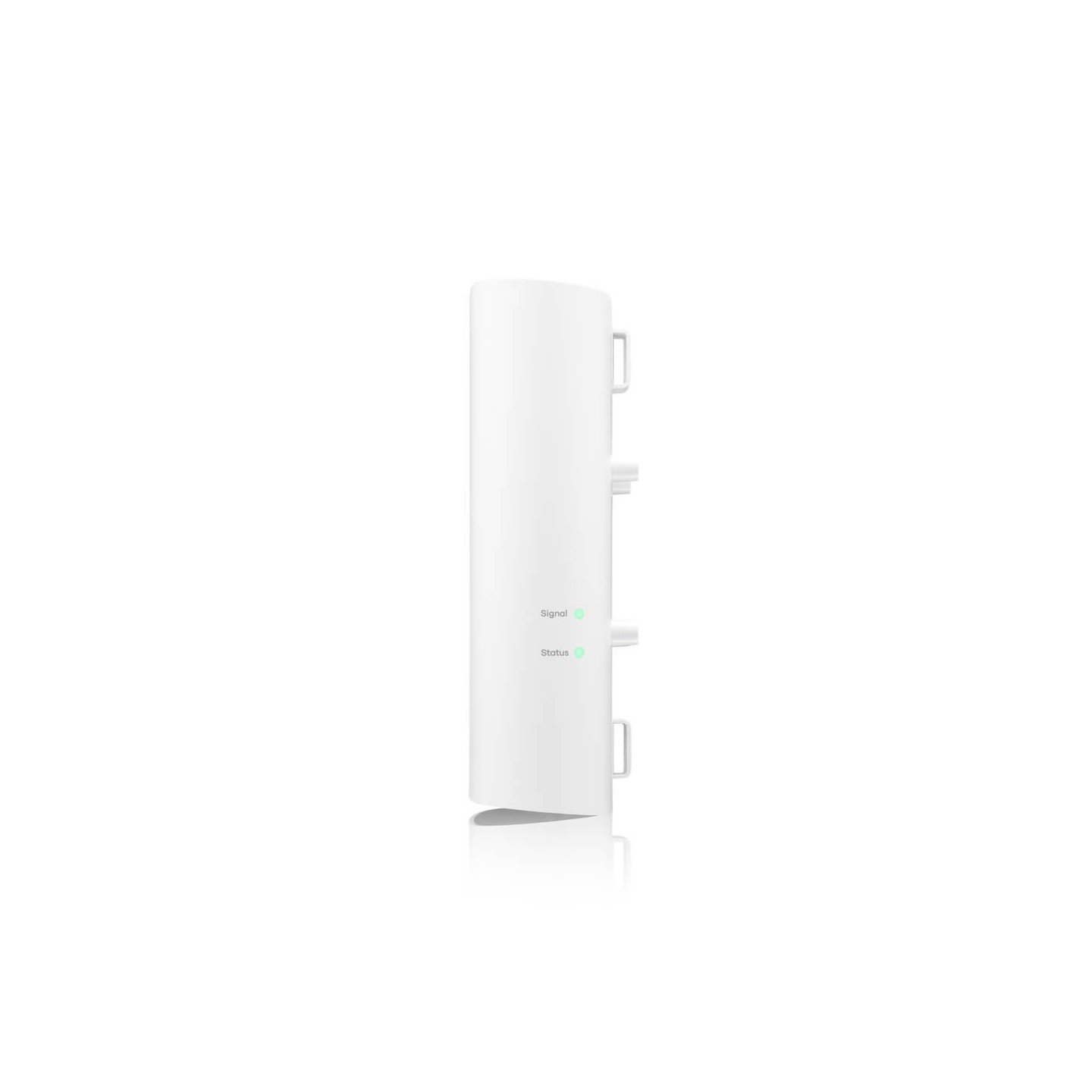

• Two LED indicators:
  • Device status
  • Signal strength
• One reset button
• One nano SIM card slot

Power consumption

• <15 W (peak)

Power specifications

• Standard IEEE 802.3af/at 2.5G PoE

Physical specifications

• Item dimensions (LxWxH):

150 x 68 x 200 mm

(5.91” x 2.68” x 7.87”)

• Item weight: 660 g (1.46 lb.)
• Packing dimensions (LxWxH): 275 x 225 x 100 mm

(10.83” x 8.86” x 3.94”)

• Packing weight: 1360 g (3 lb.)

Environmental specifications

Operating environment

• Temperature: -30°C to 55°C (-22°F to 131°F)
• Humidity: 5% to 95% RH

(non-condensing)

Storage environment

• Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95%

(non-condensing)

Ingress protection rating

• IP55

Surge protection

• K.21 6KV/DM 1.5KV

Wind load testing for Pole mounting

• GR 487 issue 4 (2013) standard

compliant

• Level 12 wind force
• Wind speeds 53.6 m/sec (~ 193 km/h)

Package contents

• Device
• Standard 802.3af/at 2.5G PoE injector
• 10m flat Ethernet cable white 8P8C
• 1.8 m Cat.6 Ethernet cable white 8P8C
• Flat cable gland
• Quick Start Guide
• DoC and safety warning

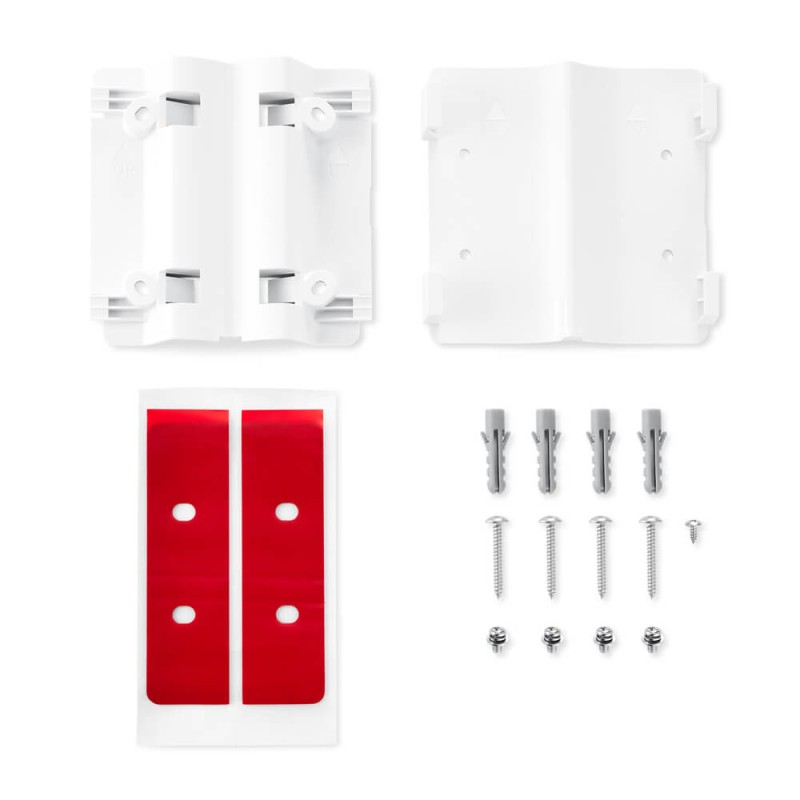

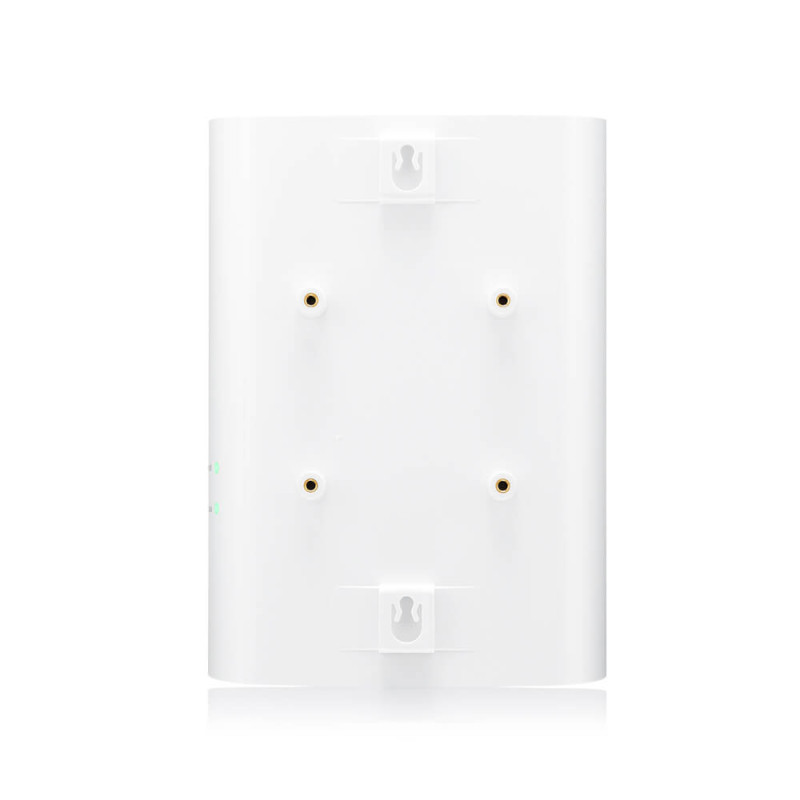

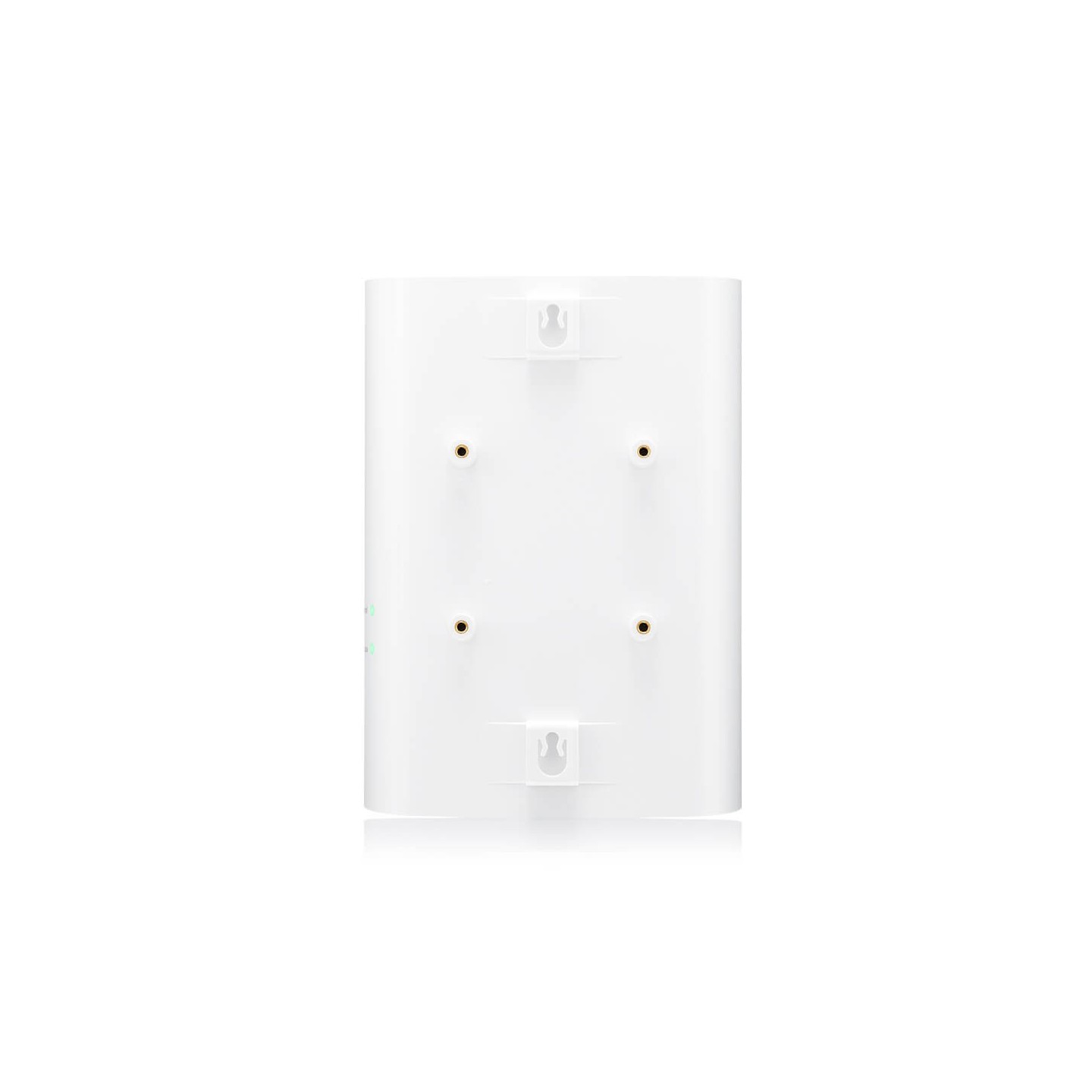

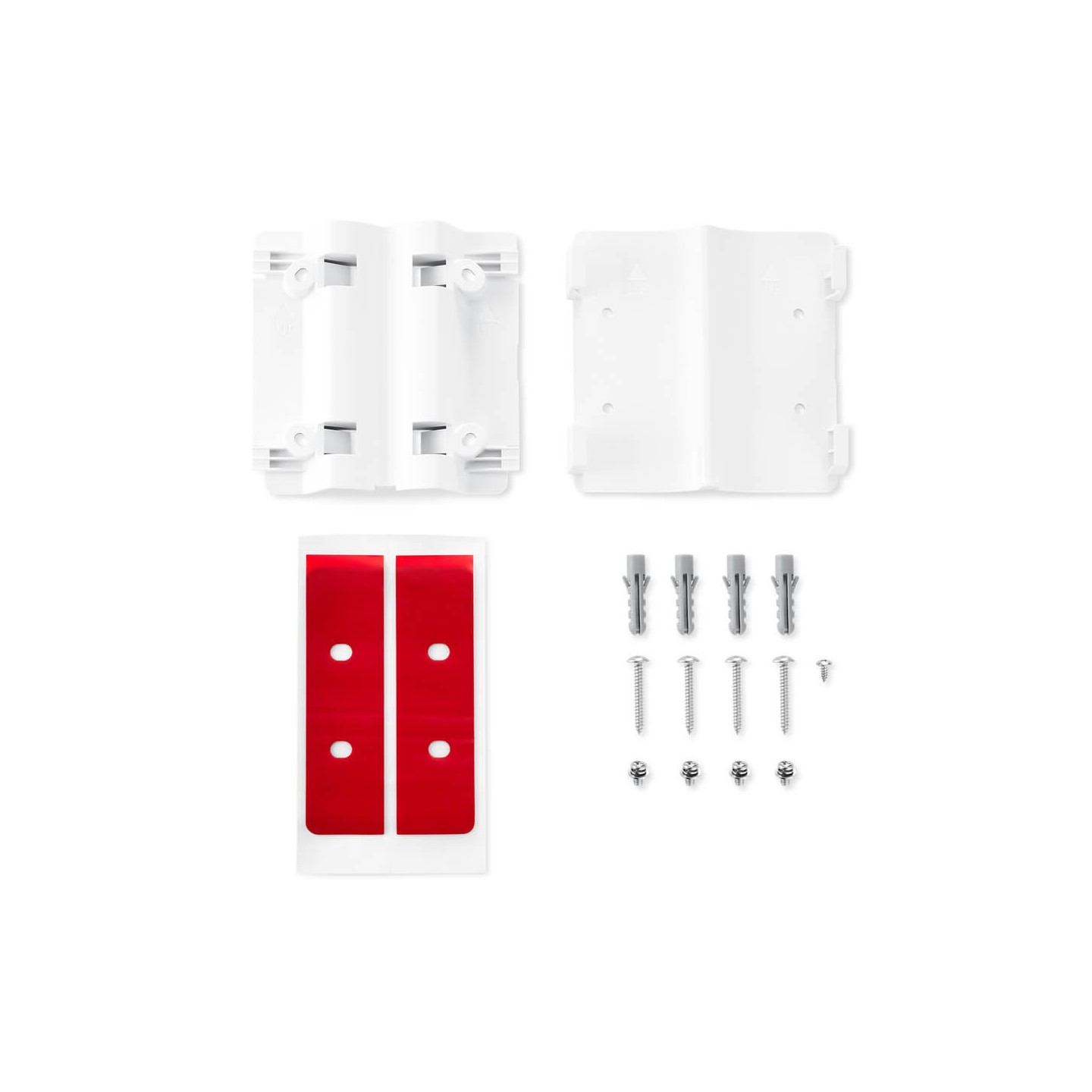

• Screws for wall mounting
• Hose clamps for pole mounting
