Ubiquiti Wireless AP WIFI5 &bull AC1200 &bull 2x2 &bull Outdoor &bull 1 GbE &bull UniFi &bull Swiss Army Knife &bull UK-Ultra Ub
Ubiquiti Wireless AP WIFI5 &bull AC1200 &bull 2x2 &bull Outdoor &bull 1 GbE &bull UniFi &bull Swiss Army Knife &bull UK-Ultra Ubiquiti Wireless AP WIFI5 &bull AC1200 &bull 2x2 &bull Outdoor &bul
Ubiquiti Wireless AP WIFI5 &bull AC1200 &bull 2x2 &bull Outdoor &bull 1 GbE &bull UniFi &bull Swiss Army Knife &bull UK-Ultra Ub

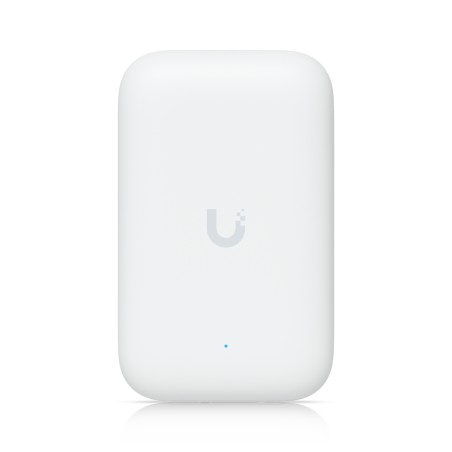

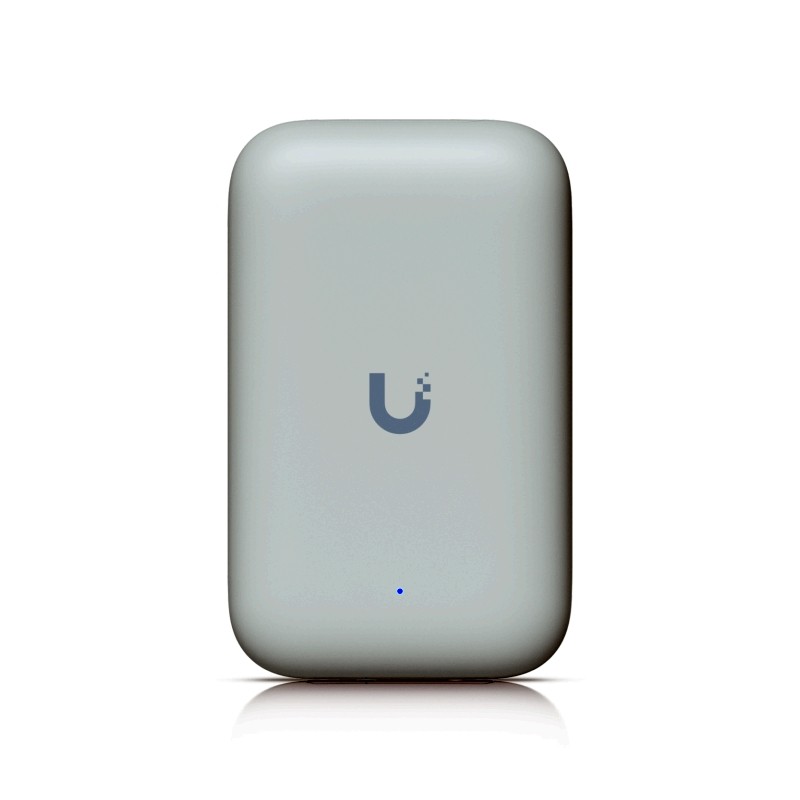

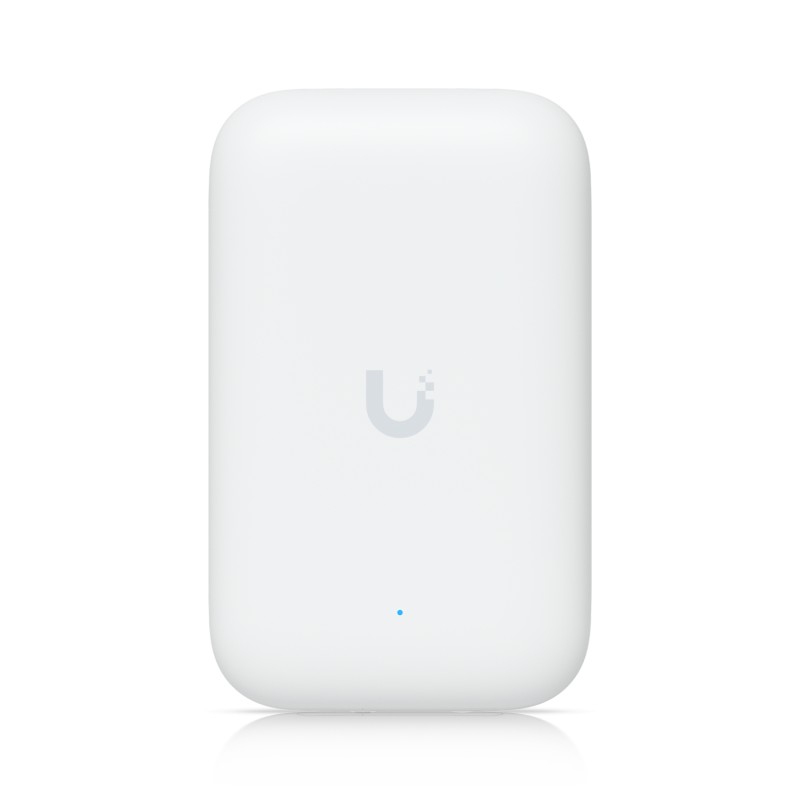

Incredibly compact PoE access point for indoor and outdoor use with support for external antennas with long range and versatile mounting options.
115 m² (1,250 ft²) coverage with internal antenna
Over 200 connected devices
WiFi 5 (2x2 MIMO)
Power supply via PoE
Compact form factor

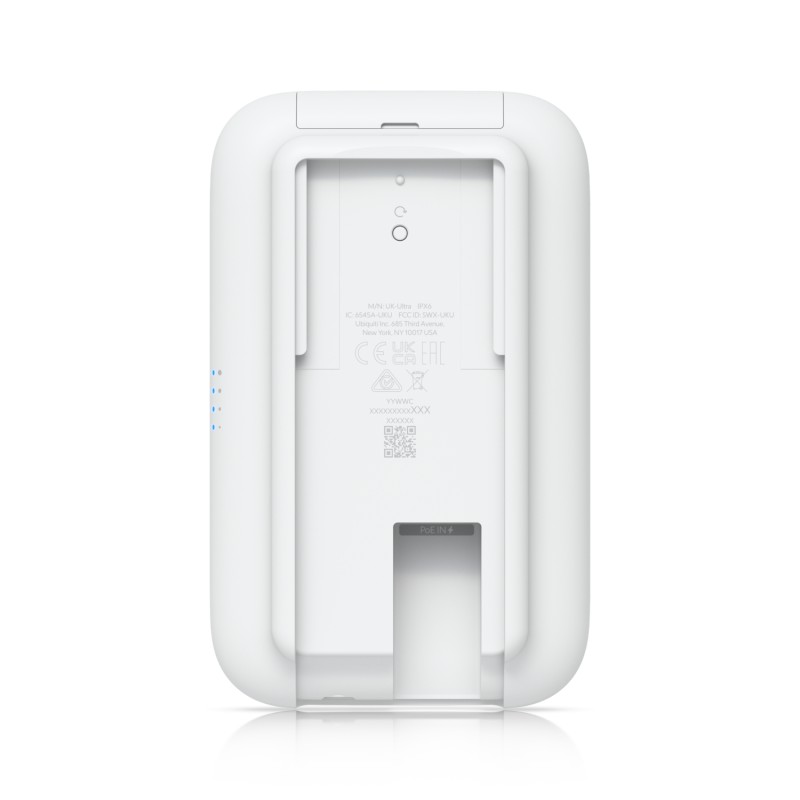

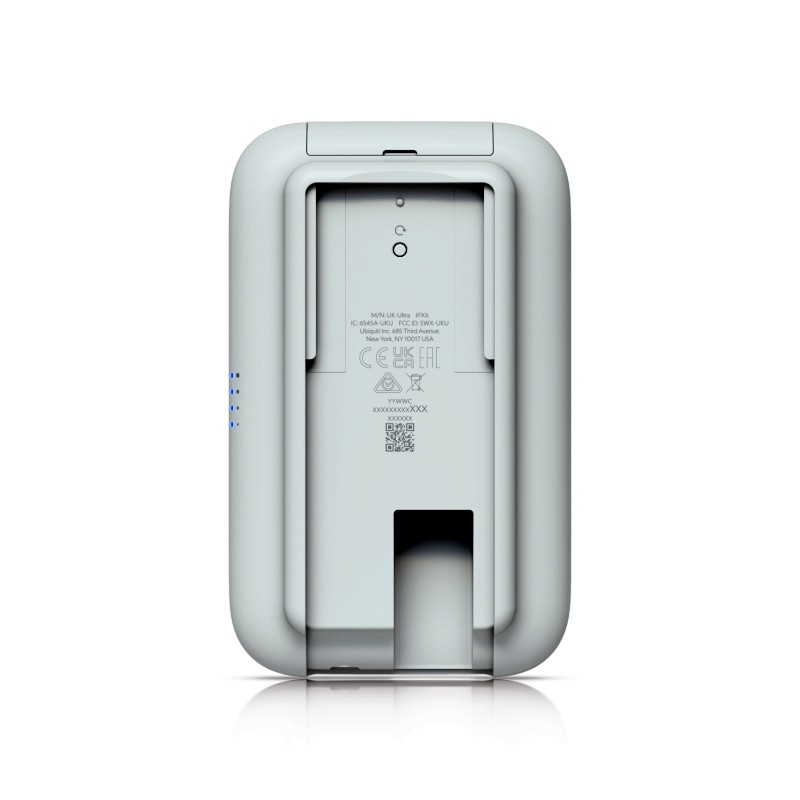

Versatile wall and pole mounting

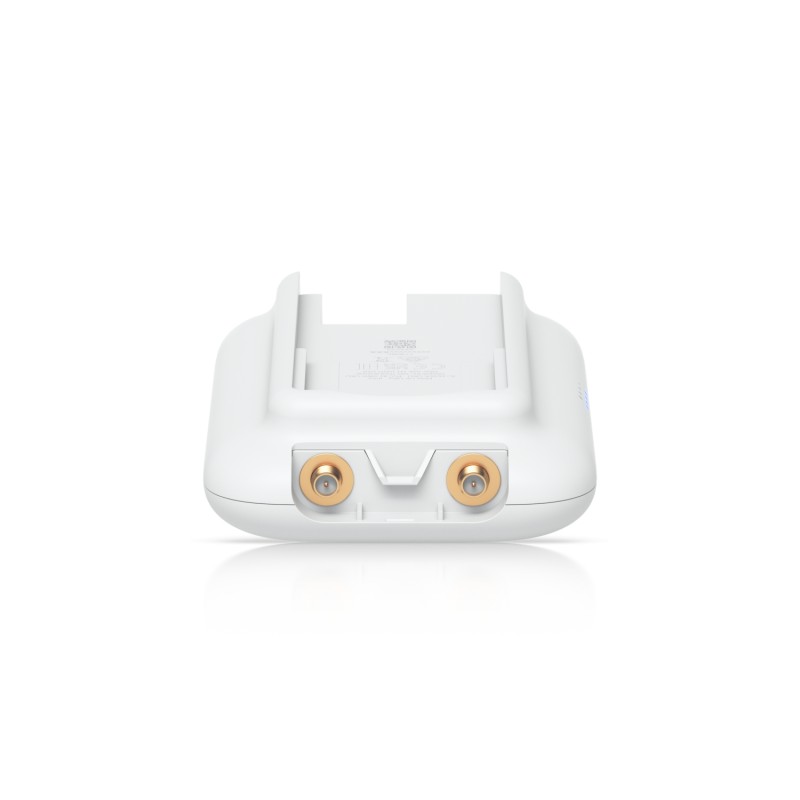

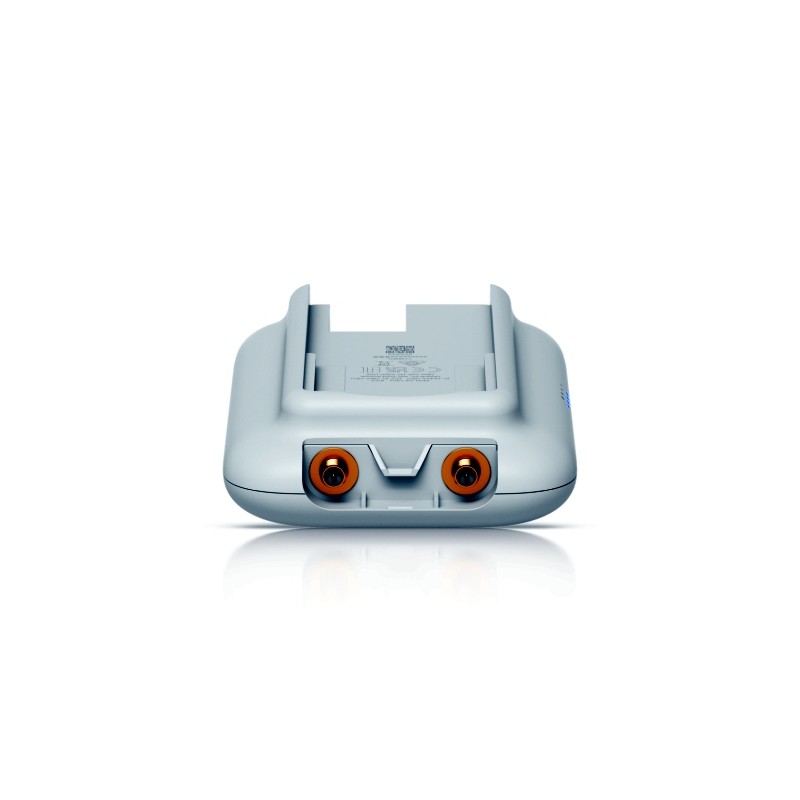

(2) RP-SMA female connectors for optional external antennas
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
| Weight | 173 g (6.1 ounces) |
| Housing materials | UV-stabilized polycarbonate |
| Mount materials | Polycarbonate, SGCC steel, plastic |
| Pole mount diameter | 1~2" on the outside diameter of the pipe |
| Wind survivability | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Weatherproof | IPX6 |
| hardware | |

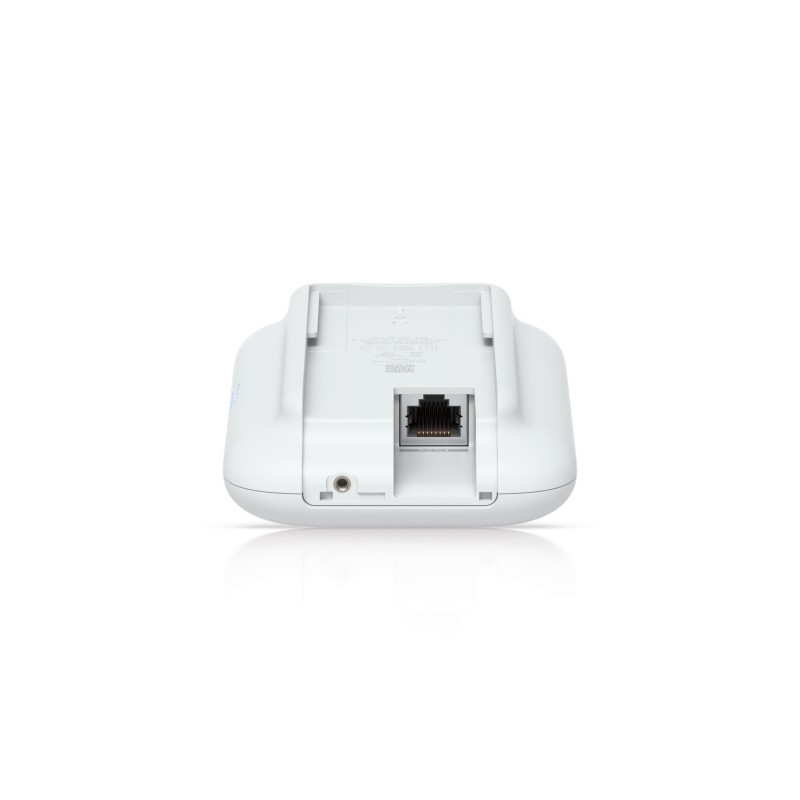

| Network interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 4457 V DC |
| Max. Power consumption | 8W |
| Max. Transmission power 2.4 GHz 5 GHz | 20 dBm 20 dBm |
| MIMO 2.4 GHz 5 GHz | 2 x 2 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz | 300 Mbit/s 866.7 Mbit/s |
| Antenna gain 2.4 GHz 5 GHz | 6 dBi 6 dBi |
| Antenna | (1) Internal antenna (2) RP-SMA connectors for optional external antennas |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory settings reset |
| Mounting | Wall, ceiling, pole mounting (included in scope of delivery) |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| software | |
| WLAN standards | 802.11a/b/g/n/ac |
| Security for wireless connections | WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Rate limiting per user |
| Isolation of guest traffic | Supports |
| Concurrent clients | 200+ |
| Supported data rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s |
| 802.11b | 1, 2, 5.5, 11 Mbit/s |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s |
| 802.11n (WiFi 4) | 6.5 Mbit/s to 300 Mbit/s (MCS0 MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbit/s to 866.7 Mbit/s (MCS0 MCS9 NSS1/2, VHT 20/40/80) |
| Application requirements | |
| UniFi network | Web: Version 8.0.7 and higher iOS: Version 10.11.1 and higher Android: Version 10.10.1 and higher |
