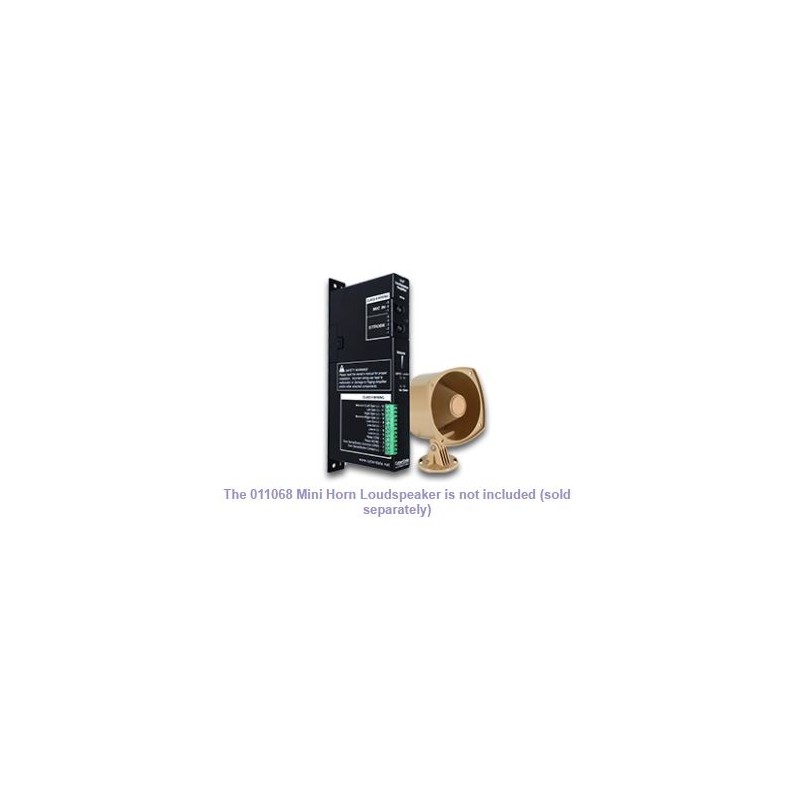

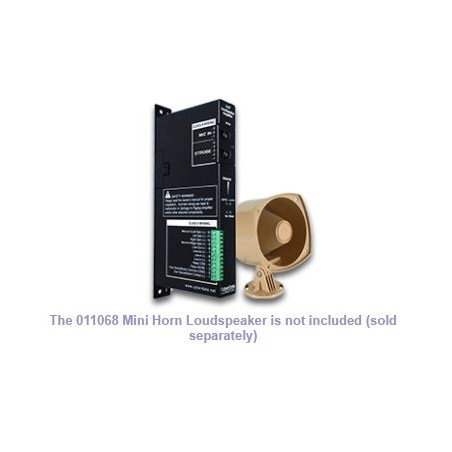

Cyberdata IP Paging - SIP Paging Amplifier

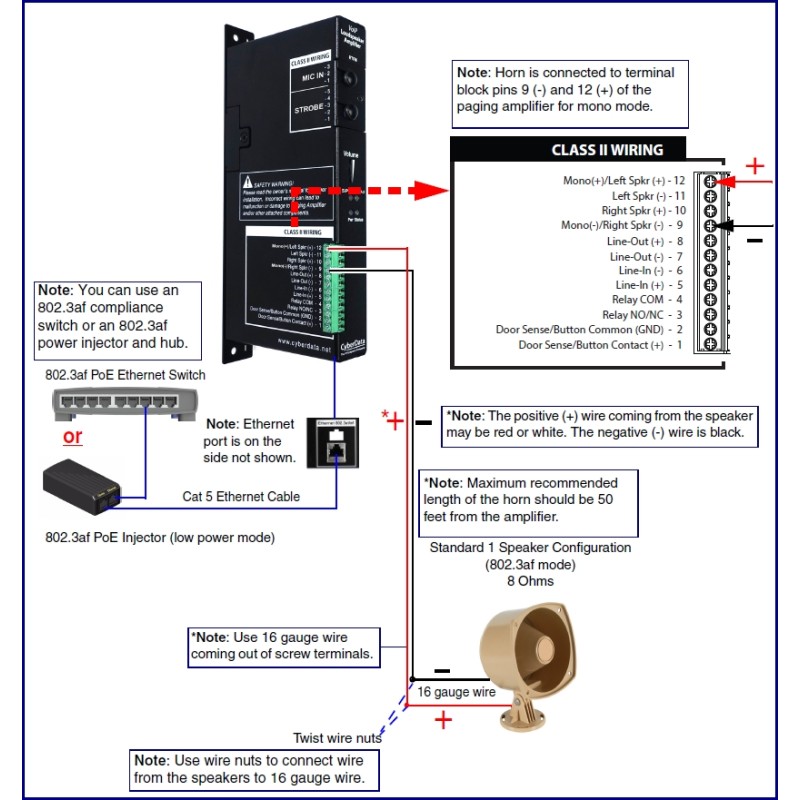

The new CyberData SIP-enabled paging amplifier provides an easy way to implement an IP-based overhead paging system for new and legacy installations. Now with up to 9 user stored messages, the amplifier provides direct drive of two 8 ohm horn speakers.

The interface is compatible with most SIP-based IP PBX servers that comply with SIP RFC 3261. For non-SIP environments, the paging amplifier can be configured to listen to multicast address and port number combinations to form paging zones.

New Features Enhanced interoperability for hosted environments CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData Support for G.722 codecs. 802.11q VLAN tagging Configurable sense input for use with fault detection or lighted button kit Configurable event generation for device health and status monitoring Optional direct connect RGB strobe kit connection HTTP Command Interface 9 user-uploadable page messages Features 10 channel prioritised Multicast ports Built-in diagnostics Delayed page support Cisco SRST SIP and Simultaneous Multicast Dual-speed ethernet 10/100 Mbps Web-based configuration PoE 802.3at and 802.3af-enabled Line-in for background music Line-out connection DTMF controlled relay Direct 8 Ohm speaker drive User-uploadable tones and messages Digital and manual volume control Second SIP endpoint "Night Ringer" Autoprovisioning Auto-call voice message from input port sense Can support two horns New Security Features Support for security code access for SIP paging Autoprovisioning via HTTPS HTTPS web based configuration
