Cyberdata IP to Analogue - SIP Paging Adapter

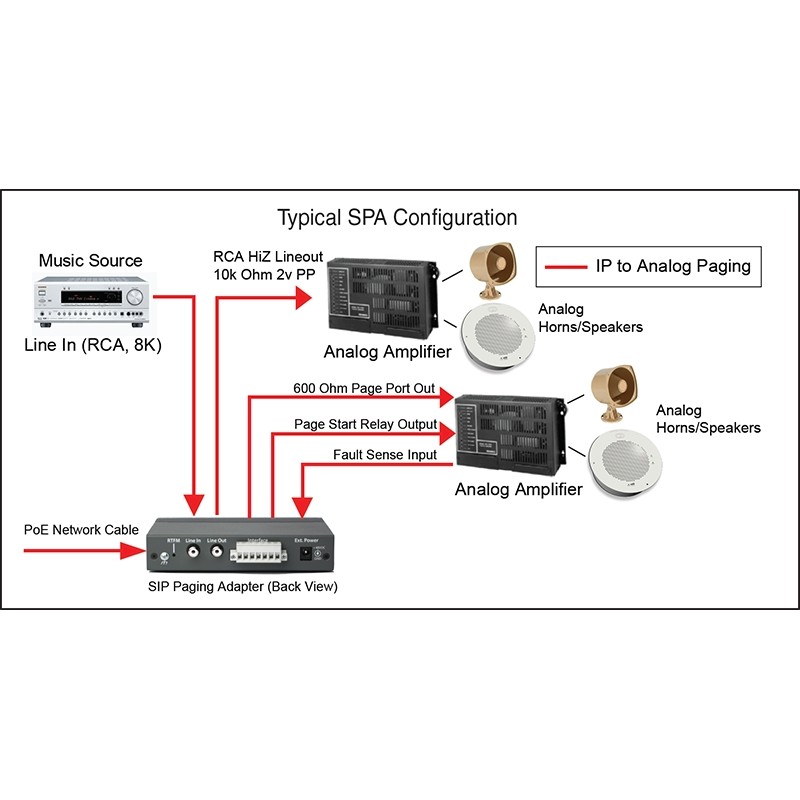

The CyberData SIP Paging Adapter is a VoIP endpoint that connects analogue paging systems to SIP and multicast-based audio sources. The SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions. SIP extension passes audio through the analogue output spoken by the caller's handset. When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group. The SPA supports up to 9 user loadable messages that can be played from a DTMF command. The SPA supports a line-in input for playing MOH.

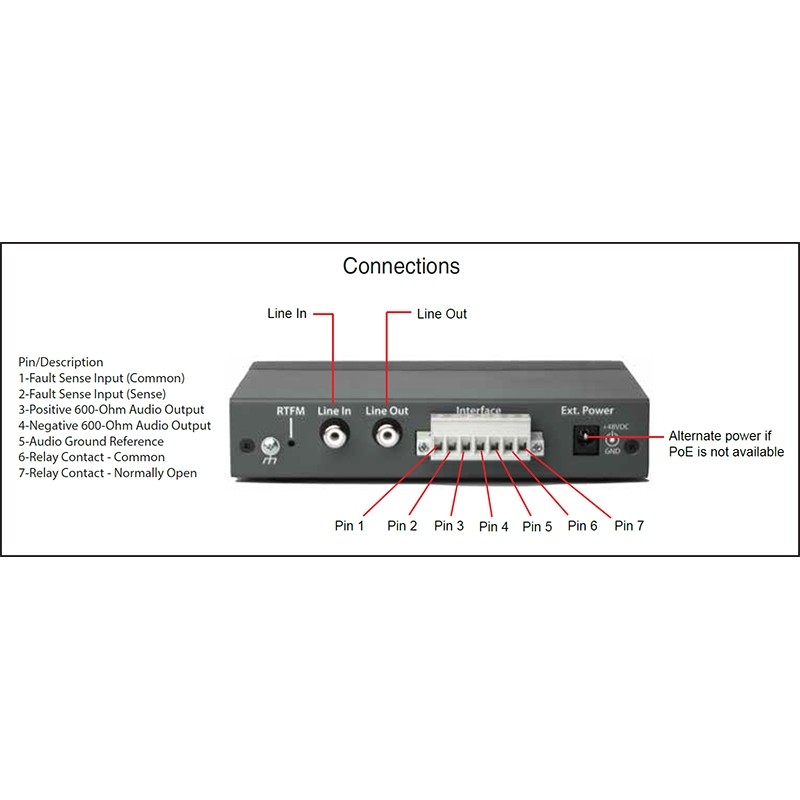

Two SIP extensions Voice prompt pass code and page control 9 user-uploadable page messages 10 channel prioritised Multicast ports HTTP Web Interface and setup Built-in diagnostics 10k Ohm input for background music 600 Ohm Balanced audio out Unbalanced Line-Out Remote amp fault sensor DTMF and programmatic controlled Relay Delayed page support DTMF pass-through Cisco SRST 10/100 802.3af PoE

PBX compatibility: http://www.cyberdata.net/connecting-to-ip-pbx-servers/
