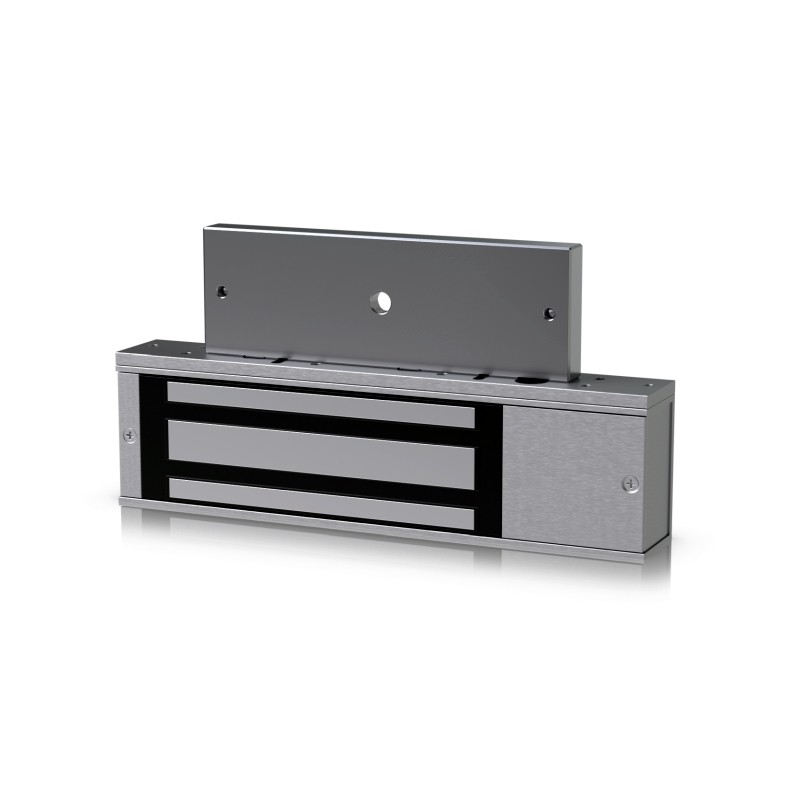

Fail-safe magnetic lock for inward and outward opening doors that connects to a UniFi Access Hub.
Holds up to 270 kg or 540 kg (600-1,200 lb)
Can be installed on a variety of door types*
*— Access lock magnetic 270 kg: All types, including full glass
— Access lock magnetic 540 kg: All types, except full glass
Compatibility:
,
,
,
Technical specifications
| Mechanically | |
|---|---|
| Mass | UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm (9.8 x 1.7 x 1 inch) Mounting plate: 250 x 25 x 5 mm (9.8 x 1 x 0.2 inches) Anchor: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4 inches) UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6 inches) Mounting plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2 inches) Anchor: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6 inches) |
| Weight | UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Mounting plate: 70 g (0.15 lb) Anchor: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Mounting plate: 145 g (0.3 lb) Anchor: 1.4 kg (3.1 lb) |
| Housing material | Device/Mounts: Aluminum Fitting: steel |
| Hardware | |
| voltage | 12 V DC |
| Current energy | UA-Lock-Magnetic-270kg: 800mA ±10% UA-Lock-Magnetic-540kg: 500mA ±10% |
| Cable connection | Connect the following terminals to the UA Hub: Lock 12 V/NC (connect to Power Lock Relay NC on the UA Hub) Lock 12 V/COM (connect to Powered Lock Relay COM on the UA Hub) DPS/+ (DPS+ on the UA Hub) DPS/- (DPS on the UA Hub) |
| Lock type | Fail-safe lock Single door |
| Holding force | UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) |
| LED | Green: unlocked Red: closed |
| fitness | UA-Lock-Magnetic-270kg: Wooden/Metal/Glass Door UA-Lock-Magnetic-540kg: Wooden/metal door |
| Mounting accessories | UA-Lock-Magnetic-270kg L-bracket: door thickness < 42 mm (< 1.7 inches), outward opening door Z-bracket: used with L-bracket for inward opening door U-bracket: used with glass door UA-Lock-Magnetic-540kg L-bracket: door thickness < 42 mm (< 1.7 inches), outward opening door Z-bracket: used with L-bracket for inward opening door |
| Ambient temperature during operation | -10 to 50 °C (14 to 122 °F) |
| Humidity during operation | 5 to 90% non-condensing |
| Certifications | FCC, IC, CE |
