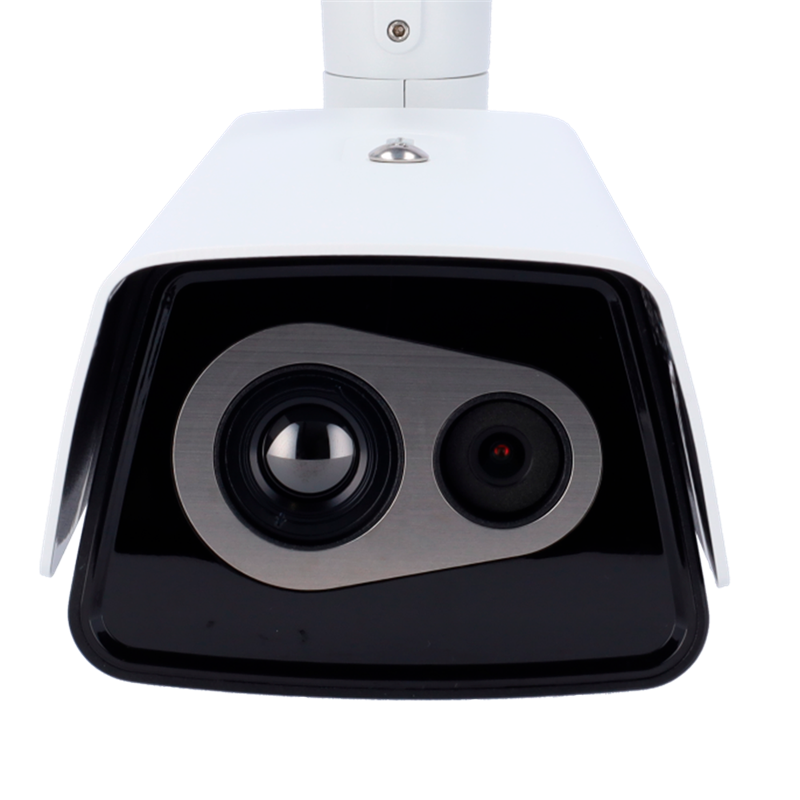

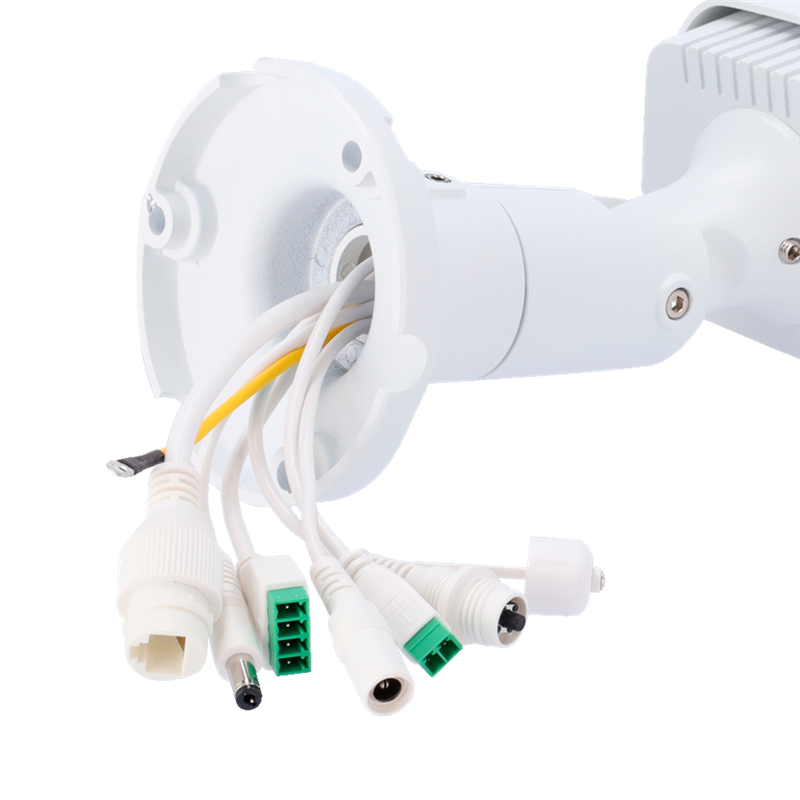

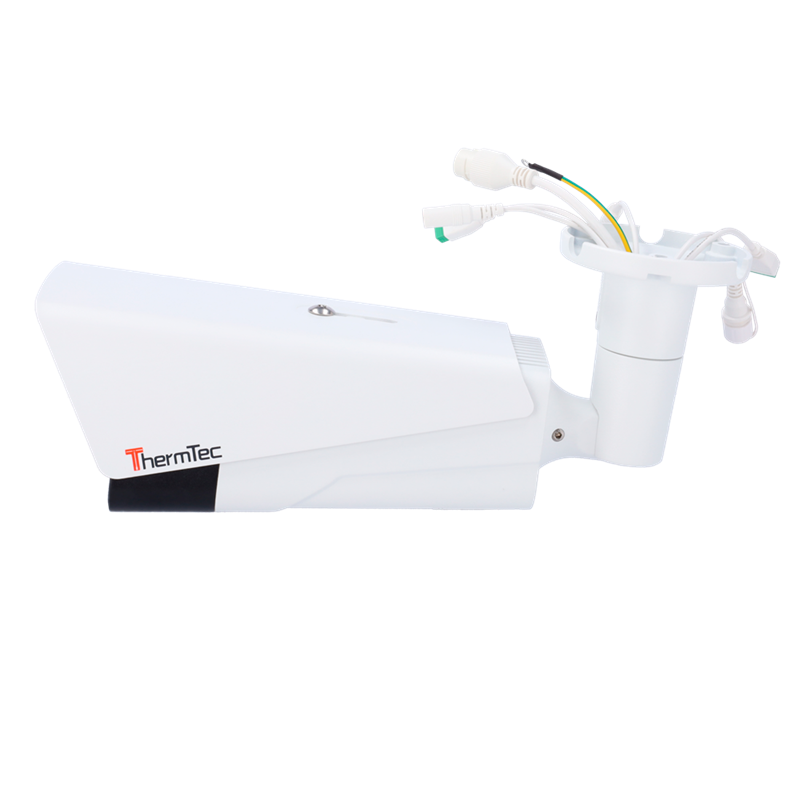

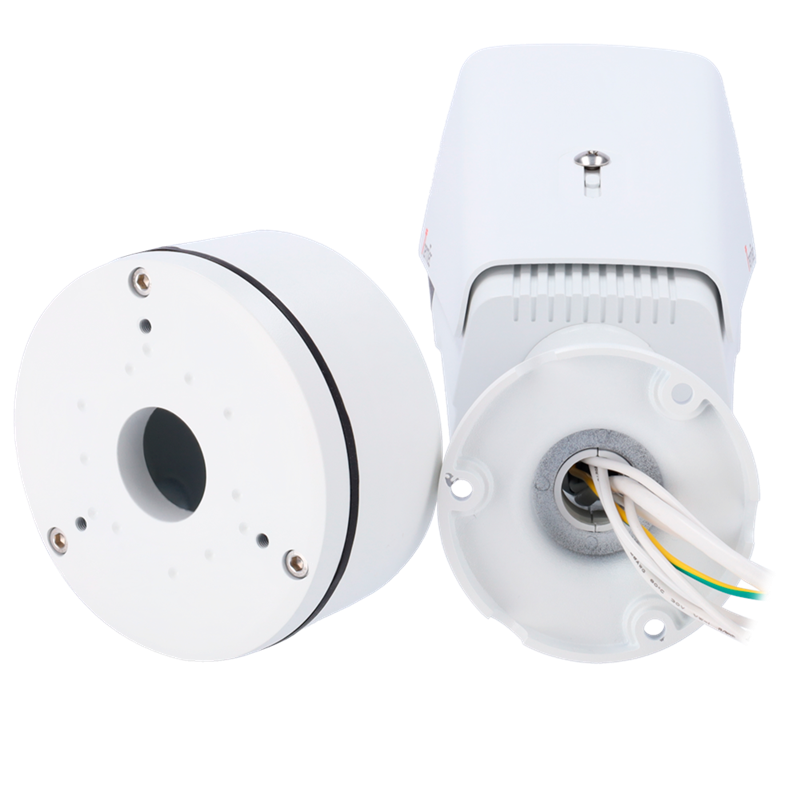

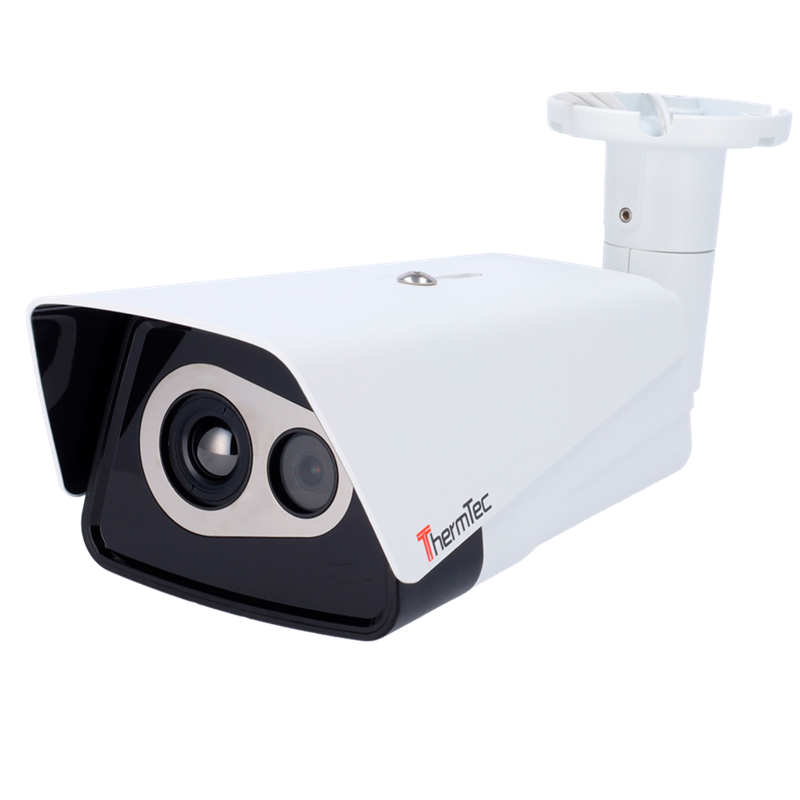

Thermtec Dual IP thermal imaging camera
- Device type: Thermal imaging camera
- Brand: Thermtec
- Model: Dual IP
- Technology: Infrared and daylight sensor
- Resolution: High-resolution
- Connection: IP-based
- Application: Industry, Security, Construction
Thermtec Dual IP thermal imaging camera
- ThermTec
- Dual Thermal IP Camera
- Thermal sensor 384x288 VOx
- Optical sensor 1/2.8" Progressive Scan CMOS 4Mpx Lens
- 17 mm (Therm) / 10 mm (Opt)
- Range IR30m
- Thermal sensitivity ≤35mK (0.05 º C)
- Pixel Pitch 12μm
- Temperature measurement H
- .265/H.264
- RJ-45 10/100M BaseT
- PoE+ IEEE802.3at
- Alarms
- Local recording due to network error
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP66
| Brand | ThermTec |
| Thermal Sensor | 384x288 Vanadium Oxide |
| Thermal Focus | Motorized |
| Optical Sensor | 1/2.8" Progressive Scan CMOS 4 Megapixel |
| Main Stream Rate | Term: 768x576 / 640x480 / 384x288 (25fps) Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps) |
| Extra Stream Rate | Term: |
| 640x480 / 352x288 / 384x288 (25fps) Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps) |
| Image Fusion | Supported |
| Compression |
| 265 / H.264 |
| mage enhancement | DWDR, 3DNR, BLC, HLC AGC, ROI, privacy mask |
| Lens | 17 mm (Term) / 10 mm (Opt) |
| Thermal viewing angle | 15.4°×11.6° (Term) |
| Thermal sensitivity | ≤35mK (0.05 ºC) |
| Thermal measuring range |
| 20 ~150 º C / ± 8 º C |
| Spectral range |
| Pitch detector | 12μm |
| Audio | Not available |
| Alarm systems |
| IN / 1 OUT |
| Internal memory | EMMC up to 16GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB-interface, |
| Safire Control Center, Safire Connect and NVR |
| Interoperability | ONVIF |
| Power supply | 12VDC, max.15W / PoE+ (802.3at) |
| , up to 15W |
| Temp. operation |
| C ~ +60º C |
| Degree of protection | Waterproof IP66 |
| Dimensions | 376 (L) x 142.82 (W) x 102.78 (H) mm |
| Weight | 1800 g |
