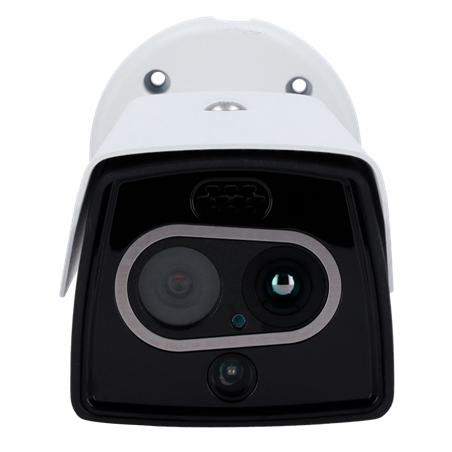

Thermtec IP thermal imaging camera HM210
- Thermtec IP thermal imaging camera HM2 series
- VOx-FPA thermal sensor 256x192 12μm |lens 10mm
- Visible sensor 1/2.8" CMOS 4Mpx lens 8mm
- Thermal sensitivity ≤35mK
- Temperature measurement range -20ºC~150º/±8ºC
- Temperature measurement, fire detection, VAC
535.00
Tax included
In stock. Ordered before 3pm, delivered next working day.
Thermtec IP thermal imaging camera HM210
- Thermtec Biespectro
- Thermal Bullet IP Camera
- Thermal Sensor 256x192 Uncooled VOx FPA
- Pixel Size 12μm
- Lens 10mm
- Temperature Measurement Range -20ºC~150ºC (±8ºC)
- Thermal Sensitivity ≤35mK
- Visible Sensor 4Mpx 1/2.8" Progressive Scan CMOS
- Lens 8mm H
- .265/H.264 RJ-45
- 10/100 BaseT
- DC12V / PoE IEEE802.3af
- Alarm
- WEB interface, Thermtec VMS
- Compatible with ONVIF
- Waterproof IP66
- TVS 6000V Lightning protection
| Brand | Thermtec |
| Range |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 256 x 192 |
| Pixel pitch | 12μm |
| Thermal lens | 10mm |
| Thermal sensitivity | ≤35mK |
| Thermal measurement range |
| 20ºC~150ºC / ±2ºC |
| Spectral range |
| 8~14μm |
| Thermal viewing angle | 17° (H) x 13° (V) |
| Visible sensor | 1/2.8" Progressive Scan CMOS |
| Visible sensor resolution | 2592 x 1536 (4Mpx) |
| Visible lens |
| Infrared illuminator | 20m. |
| maximum |
| Main Stream rate | Visible: 25fps (2592×1536, 1920×1080, 1280x720) Thermal: 25fps (768x576, 640x480, 384x288, 352x288) |
| Sub Stream Rate | Visible: |
| 25fps (1280x720, 768x576, 640x480, 352x288, 256x192) Thermal: 25fps (768x576, 640x480, 384x288, 352x288) |
| Compression |
| 265 / H.264 |
| CA | Motion detection, line crossing, intrusion, area entry/exit Fire detection and temperature measurement |
| Temperature rules | Point, line and area, |
| multiple rules simultaneously |
| Alarms |
| input / 1 relay |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, Thermtec VMS software |
| Interoperability | ONVIF, API, SDK |
| Power | DC 12V, 3W max. PoE IEEE802.3af |
| Temp. operation |
| , <95% RH |
