ALLNET Touch Display Tablet 5 inch PoE with 2GB/16GB, RK3566 Android 11 black
ALLNET Touch Display Tablet 5 inch PoE with 2GB/16GB, RK3566 Android 11 black
ALLNET Touch Display Tablet 5 inch PoE with 2GB/16GB, RK3566 Android 11 black

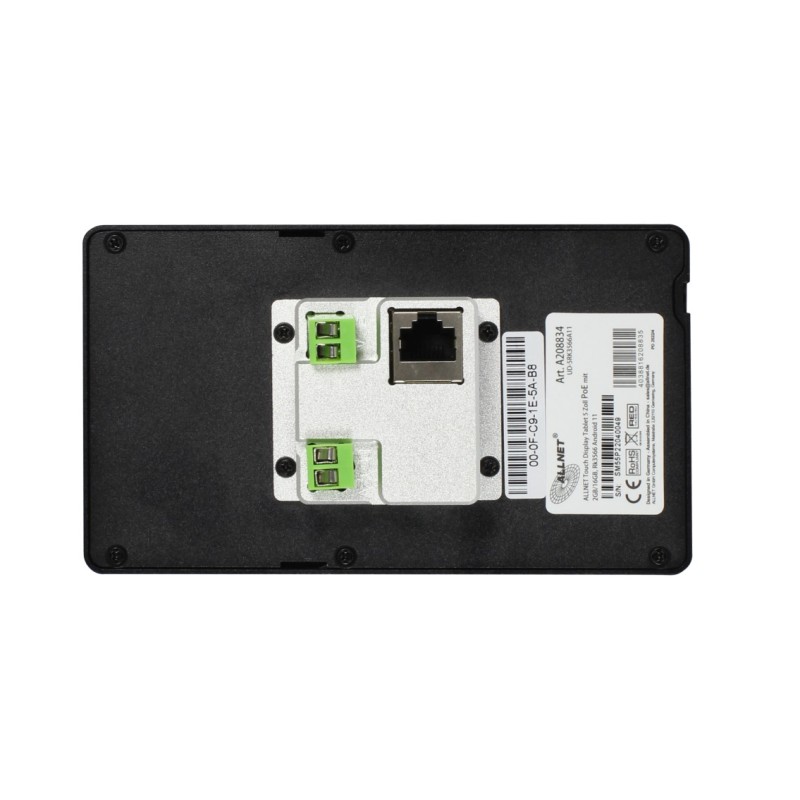

***Information: The light green connector plugs are not tight enough, dark green Phoenix terminals have been included for this. Either press these in very firmly or cut off the locking tab.***
Built-in touch display with Rockchip RK3566 CPU and Android. 2GB RAM / 16GB storage. Expandable via USB and SD cards. Resolution 720x1280, PoE (Power over Ethernet). Power supply 12-24V possible.
It can be mounted on round and square flush-mounted boxes.
The display is specially designed for applications in home automation, visualization and building control as well as for installation in control cabinets or for table placement.
If the display is very small, you can change it with the Easy DPI Changer app. Here you can change the DPI number from 160 to 180, 200, 220 or 240, depending on your needs.
It is always advisable to test devices for special applications over a long period of time to ensure all required functions.
Model NO. UD-5RK3566A11 | ||
Product Type | 5.0" POE | |
Description | ||
system | CPU/GPU | Rockchip RK3566 quad core processor, CPU – Quad-core Arm Cortex-A55, GPU – Mali-G52EE GPU |
R.A.M. | 2GB | |
ROME | 16 GB | |
system | Android11 | |
Display | screen | 5.0 inch IPS panel |
resolution | 1280x720 Wide viewing | |
Contrast | 1000 | |
Brightness | 350nits | |
Network | 802.11 b/g/n 2.4GHz | |
Ethernet | POE 15.4 Watts IEEE802.3af | |
Bluetooth | YES | |
3G | Support external 3G USB dongle | |
Jack | SD | Support SD card (Max 32G) |
USB-C | USB-C | |
USB Host | USB-C Host 1x | |
RJ-45 | built in | |
DC | DC input 12V-24V | |
Headset | 3.5mm stereo headphone/microphone output | |
multimedia | Video | Video decoder – H.264/H.265/VP9 |
Audio | MP3/WMA/AAC etc. | |
Picture | jpg | |
other functions | Wireless mouse | Support |
Wireless keyboard | Support | |
Speak | 1x1W | |
Camera | no | |
OSD Language | Multi language OSD operation | |
attachment | adapter | no |

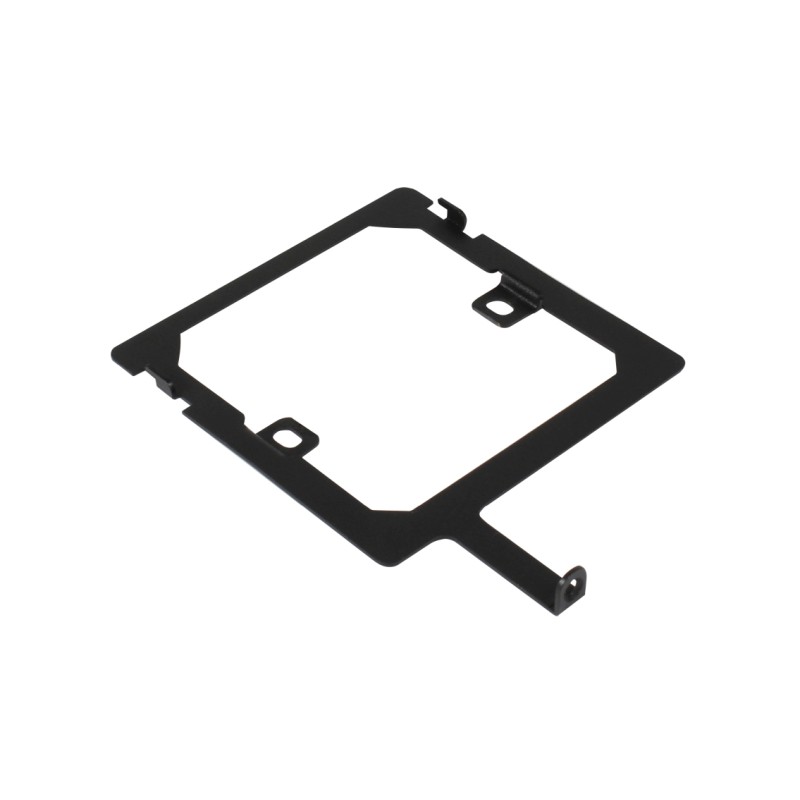

Wall Bracket | yes | |
| Vesa | no | |
| Measurement | LxWxH | LxWxH: 146x83x33mm, Distance from Wall 10mm |
