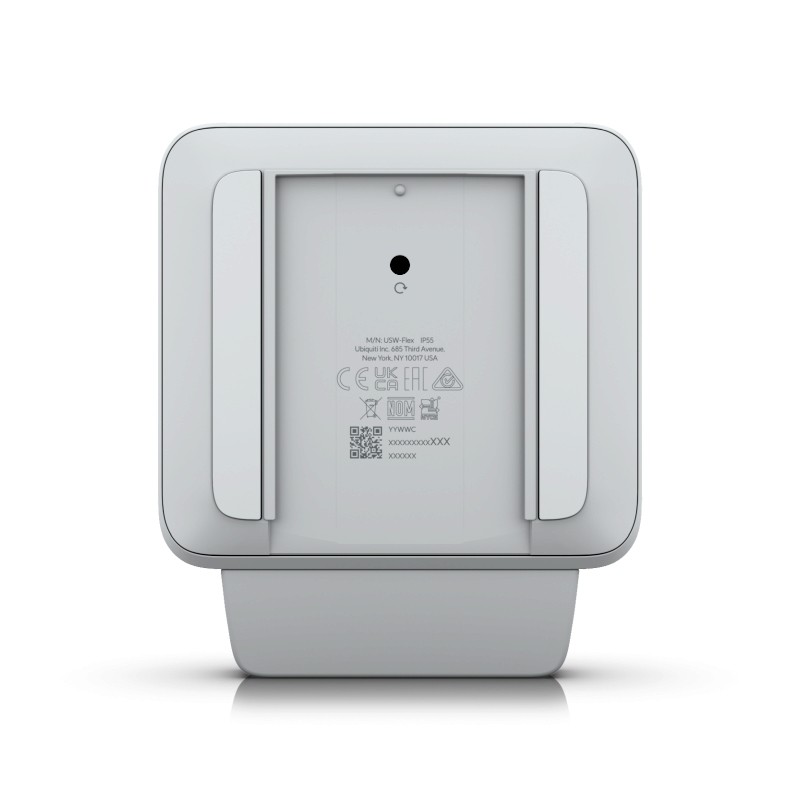

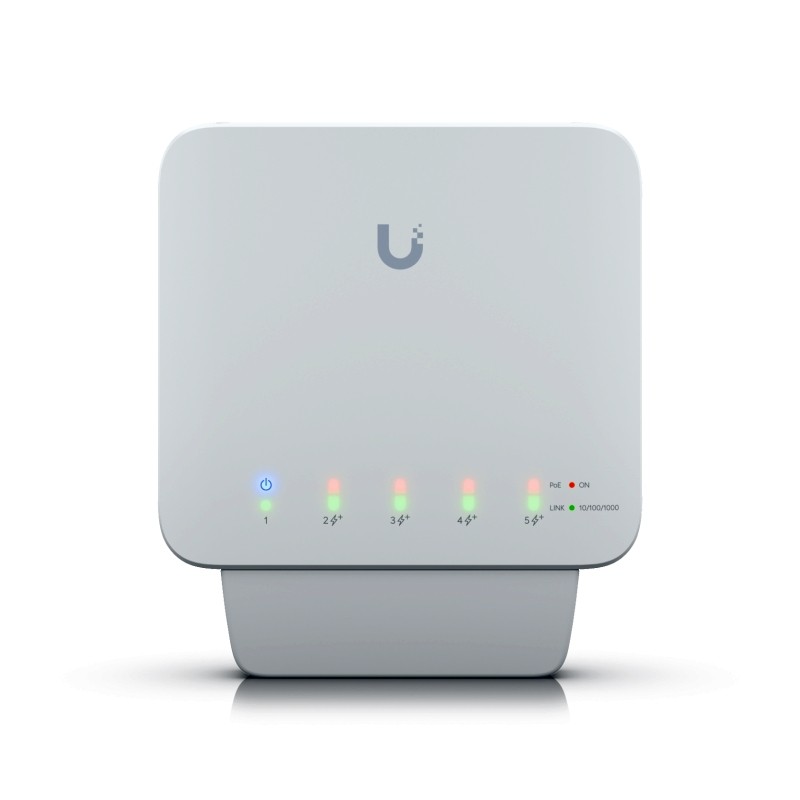

Ubiquiti UniFi Switch Flex / Input 1x POE++ / Output 4x POE+ / up to15W per Port* / USW-Flex
Ubiquiti UniFi Switch Flex / Input 1x POE++ / Output 4x POE+ / up to15W per Port* / USW-Flex
Ubiquiti UniFi Switch Flex / Input 1x POE++ / Output 4x POE+ / up to15W per Port* / USW-Flex
Flexible 5-port Layer 2 PoE switch for indoor and outdoor use that can be operated with PoE++
(4) GbE PoE+ ports
(1) GbE PoE++ input port for power
— 46W PoE availability* PoE++ input
— 20W PoE availability* PoE+ input
— 8 W PoE availability* PoE input
Inside Outside
*When powered by a PoE++ switch or a 60W PoE adapter (sold separately).
Technical specifications
| Mechanically | |
|---|---|
| Dimensions | 122.5 x 107.1 x 28mm (4.8 x 4.2 x 1.1") |
| Weight | 230 g (8.11 ounces) |
| Hardware | |
| Management interface | Ethernet In-Band |
| Network interface | (5) GbE RJ45 ports |
| PoE interface | (4) PoE+ (pins 1, 2+ 3, 6-) |
| Total non-blocking throughput | 5 Gbps |
| Power method | PoE++ |
| Power supply | PoE/PoE+ (pins 1, 2+ 3, 6-) PoE++ (pins 1, 2+ 3, 6- and 4, 5+ 7, 8-) 50V/60W PoE adapter (not included) |
| Supported voltage range | PoE: 44-57VDC. PoE+/PoE++: 50-57VDC |
| Max. energy consumption | 5 W (without PoE output) |
| Total available PoE | 46W* *When powered by a PoE++ switch or a 60W PoE adapter (sold separately). |
| Max. PoE wattage per port according to PSE | 25W |
| Voltage range PoE mode | 44—57V |
| Voltage range PoE+ mode | 50-57V |
| ESD/EMP protection | Air/contact: ± 16 kV |
| button | Factory settings reset |
| operating temperatur | 46W PoE output: -40 to 55°C (-40 to 131°F) 25W PoE output: -40 to 65°C (-40 to 149°F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LED | |
| system | status |
| Ethernet | PoE Speed/Link/Activity |
| PoE | Link/Activity |
| Application requirements | |
| UniFi Network | Version 5.10.3 and higher |
