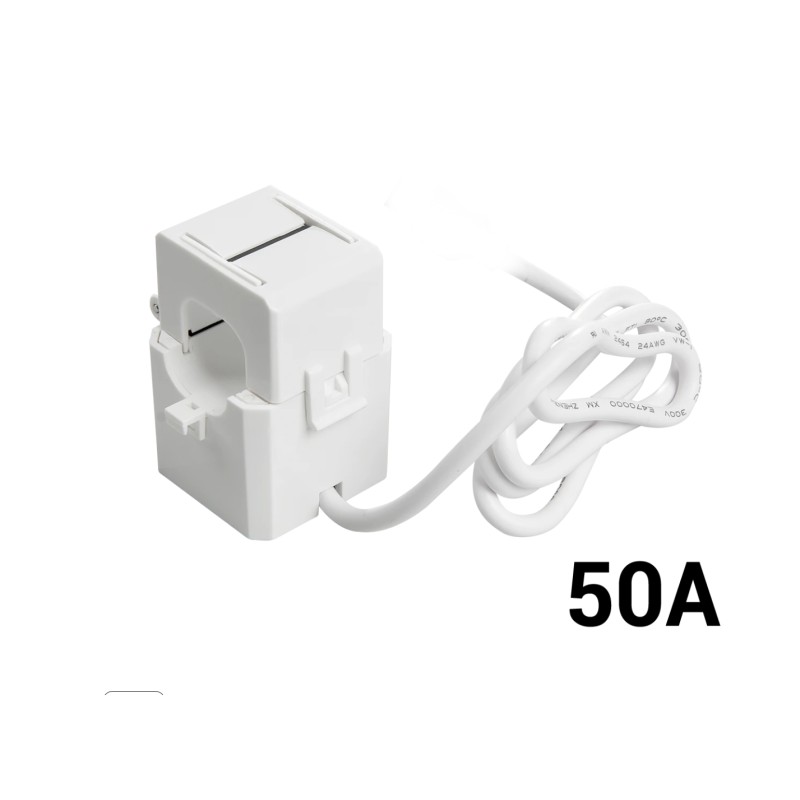

Shelly 50 A Transformer Clamp
overview
is a current collector clamp for the Shelly EM. It is required to read the power consumption data with the Shelly EM.
This is an accessory and does not include the Shelly EM
scope of delivery
- 1 x Shelly 50 A transformer terminal
- 1 x User manual
Specifications
| CURRENT TRANSFORMER 50A | |
|---|---|
| Accuracy | 1% |
| Core | Ferrite core |
| Electrical Strength | 3000VAC 1mA60s |
| Internal diameter | 11mm |
| Load Resistance | 20Ω |
| Rated Primary Current | 50A |
| Rated Secondary Current | 16.67mA |
| Saturation current | ≥85A |
| Size | 23.5mm x 41.5mm x 26mm |
| CURRENT TRANSFORMER 120A | |
| Accuracy | 1% |
| Core | Ferrite core |
| Electrical Strength | 3000VAC 1mA60s |
| Internal diameter | 17mm |
| Load Resistance | 20Ω |
| Rated Primary Current | 120A |
| Rated Secondary Current | 40mA |
| Saturation current | ≥120A |
| Size | 31mmx45mmx30mm |
| FEATURES | |
| Compatible 50A | Shelly EM |
| Compatible 120A | Shelly EM, Shelly 3EM |
Details about Shelly · Flush-mounted & DIN rail accessories · "Current Transformer 50A" · Induction terminal for EM & 3EM
Manufacurer:
Shelly_CT_50
Weight:
0.060000
Storage:
Zentrallager
