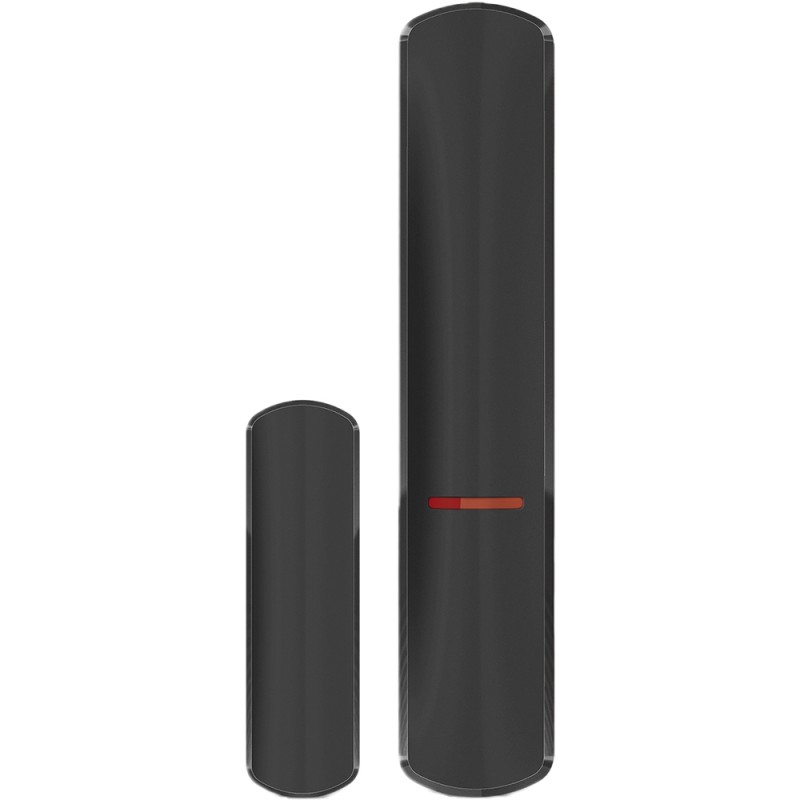

BeWave wireless magnetic contact, 868 - 868.6 MHz, integrated LED, grade 2, dark grey

Article Nr AXD-200 Lite DGEAN 5905033339088
Secure radio connection: 868 MHz with AES-encrypted, bidirectional communication and automatic channel selection (4 channels) Long range: Up to 1300 m in free field - stable connection even at greater distancesSecurity standard: EN 50131 grade 2 certified, tamper protection against opening of housing and tearing off
55.75
Tax included
Item not in Stock
Add to Cart
Add to Cart

BeWave wireless magnetic contact, 868 - 868.6 MHz, integrated LED, grade 2, dark grey

Secure, compact, reliable

Compact magnetic contact for wireless monitoring of windows and doors indoors. The sensor uses encrypted radio transmission in the 868 MHz band and offers maximum reliability thanks to bidirectional communication, tamper protection and remote maintenance options.

Product features:

  • High transmission security with intelligent channel selection: AES-encrypted radio with automatic selection of the optimum channel for interference-free communication.
  • Convenient remote maintenance: Parameterisation and firmware updates are carried out conveniently via radio - without physical access.
  • Flexible mounting options: Magnet included in the set for surface and flush mounting, incl. self-adhesive bracket.
  • Tamper protection and system monitoring: LED status display, tamper protection when the housing is opened and reliable battery monitoring.

Technical features:

Radio frequency: 868.0 - 868.6 MHz
Range (free field): up to 1300 m
Battery: CR123A, 3 V
Battery life: up to 3 years
Power consumption: 48 μA (ECO mode: 16 μA)
Temperature range: -10 °C to +55 °C
Dimensions (sensor): 20 × 102 × 23 mm
Dimensions (magnet assembly): 15 × 52 × 6 mm
Dimensions (magnet installation): Ø10 × 28 mm
Approval: EN 50131 grade 2, environmental class II

Details about BeWave wireless magnetic contact, 868 - 868.6 MHz, integrated LED, grade 2, dark grey

TYPE OF EQUIPMENT Magnetkontakt
Connection Funk
Serie BeWave
Category SatelBrand SatelReference AXD-200 Lite DGEAN13 5905033339088Delivery Time Delivery in 48-72HCondition New

Manufacurer:

ASA-AXD-200-LITE-DG

Weight:

0.000000

Storage:

Downloads

ASA-AXD-200-LITE-DG_Datenblatt-D

Satel
