Alarm centre, 4/30 lines, 2 areas
Hybrid alarm centre: Supports up to 30 wired or wireless alarm lines for flexible installationPowerful communication: Integrated GSM/LTE and LAN module with two SIM slots for reliable transmissionExpandable & customisable: Up to 12 outputs, 6 control panels and optional wireless receivers
Alarm centre, 4/30 lines, 2 areas

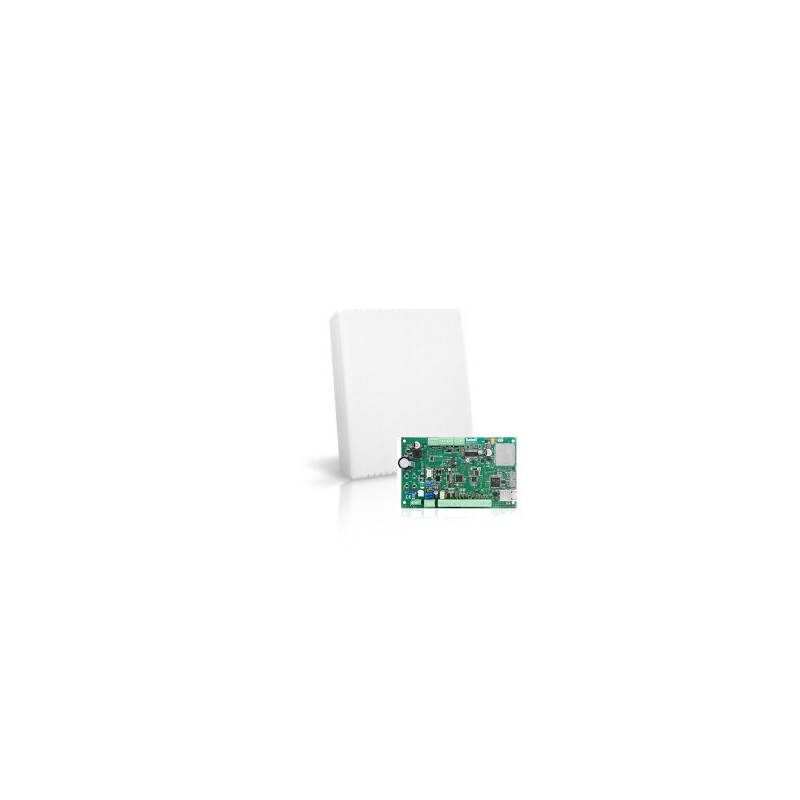

VERSA-PLUS-LTE alarm control panel incl. ASA-OPU4P plastic housing and antenna.
2 areas, 4 lines, expandable to 30 (optionally 30 lines wireless or wired). 30 user codes, 5 outputs (2xload, 2xOC, 1xrelay), expandable to 12, max. 6 wired or wireless control panels can be connected, 4 timers,
Already integrated: GSM/LTE module (2 SIM card slots), analogue voice module 8 call numbers, max. 16 programmable voice texts, LAN module and connection board for optional microphone module.
EN50131 grade 2
Optional: Transformer ASA-TR40VA/ASA-TR60VA, battery max. 7Ah and radio receiver ASA-ACU270/ASA-ACU120.
Dimensions circuit board: W173×H105mm, dimensions housing: B266×H286×D100mm.
2 areas, 4 lines, expandable to 30 (optionally 30 lines wireless or wired). 30 user codes, 5 outputs (2xload, 2xOC, 1xrelay), expandable to 12, max. 6 wired or wireless control panels can be connected, 4 timers,
Already integrated: GSM/LTE module (2 SIM card slots), analogue voice module 8 call numbers, max. 16 programmable voice texts, LAN module and connection board for optional microphone module.
EN50131 grade 2
Optional: Transformer ASA-TR40VA/ASA-TR60VA, battery max. 7Ah and radio receiver ASA-ACU270/ASA-ACU120.
Dimensions circuit board: W173×H105mm, dimensions housing: B266×H286×D100mm.
Details about Alarm centre, 4/30 lines, 2 areas
| TYPE OF EQUIPMENT | Alarmzentrale |
|---|---|
| Connection | Verkabelt |
| Serie | Versa |
Manufacurer:
ASA-VERSAPLUSLTE
Weight:
0.000000
