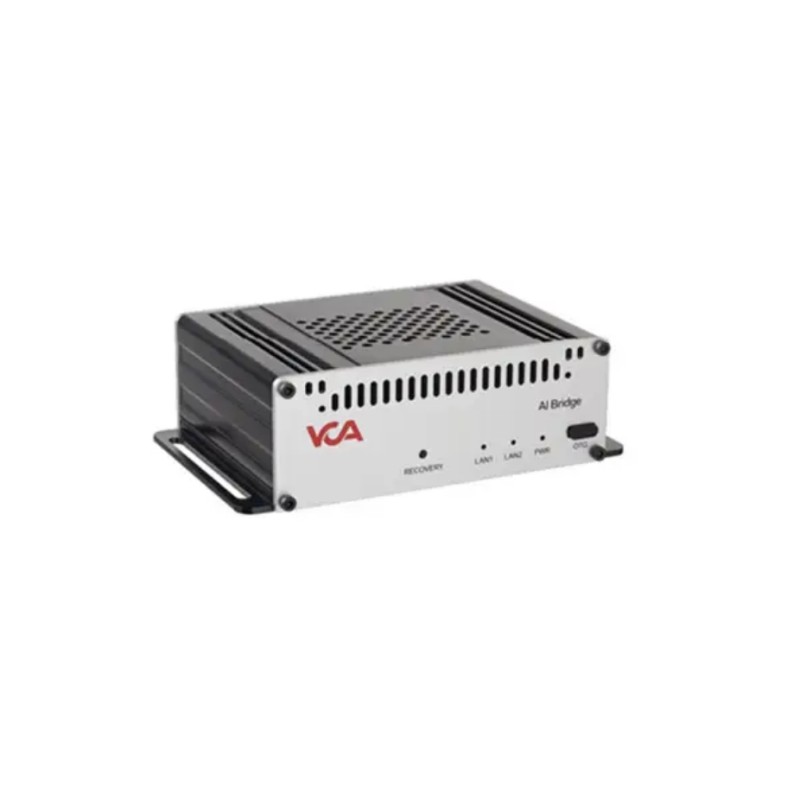

The VCA AI Bridge ABP302-NX is a small ALL-IN-ONE hardware platform that provides industry-leading deep learning video analytics for event notifications and includes Networkoptix's NXWitness video management software.
Ideal for sites with up to 8-channel cameras, 3-channel behavior.
- Hardware solution for the rapid implementation of video analytics.
- Ready to use with our industry-leading video analytics service VCAserver.
- State-of-the-art machine learning and AI algorithms for tracking people and vehicle types.
- Supports our RetailTrend On-premise/Cloud annual reporting service.
- VCA forensic search service available on the ABP302 series.
- Stream video directly from any IP camera or VMS via RTSP.
- Open and standardized interfaces for fast integration.
- Complete analytical metadata stream to facilitate forensic search or other value-added applications.
- Access the services (VCAserver and RetailTrend) via a web browser from any device.
- 3 year warranty.
For more information see data sheet.
The VCAabp series is a hardware platform equipped with the VCAserver, offering industry-leading deep learning video analytics for event notification. It can also support VCAforensics or RetailTrend for a complete analytics solution.
The VCAserver has been designed from the ground up to be easy to use and integrate, providing accurate detection of people, vehicles and other objects, as well as specific events such as slips and falls, hand-held objects, shelf clearing and behavior.
RetailTrend is our business reporting tool that ingests data from VCAserver and displays visitor counts, engagement, heatmaps, and more through a browser-based interface, either on-premises or in the cloud. VCAforensics provides an intuitive appearance search tool that uses snapshots, video clips, and metadata from VCAserver, with the ability to play recorded footage from VMS platforms.
Explanations of abbreviations from the data sheet.
DLOT - Deep Learning Object Tracker
DLPT - Deep Learning People Tracker
DLST - Deep Learning Skeleton Tracker
HOIT - Hand Object Interaction Tracker
Technical details:
System Series ABP302 | |
| Channel capacity | 8-channel cameras, including NX-Witness VMS software. See data sheet for details. Depending on camera resolution. |
| Core module | Orin Nano 8GB |
| GPU | 1024-core ampere, with 32 Tensor cores |
| System drive | 1TB, M.2 NVMe |
| Services | VCAforensics, RetailTrend |
| Operating system | Ubuntu 20.04 LTS Desktop |
| Power supply | DC 12V/5A (1 x DC power socket) |
| Color & Material | Black/Silver & Metal |
Connections | |
| USB | 2 x USB 3.1 Gen |
| Video (GPU) | 1 x micro HDMI |
| network | 2 x 1 Gigabit RJ-45 |
| Operation temperature | 0°C to 50°C (32°F to 122°F) |
| Operation humidity | 20% ~ 85% RH |
| Dimensions | 128.5mm(W) x 39.1mm(H) x 79mm(D) |
| Weight | approx. 350g |
