VCA Ai Bridge APB302 VCA Server up to 12ch ProAI and 4ch Behavior

Article Nr 231278
VCA Ai Bridge APB302 VCA Server up to 12ch ProAI and 4ch Behavior
1,683.85
Tax included
Item not in stock
Add to Cart
Add to Cart

VCA Ai Bridge APB302 VCA Server up to 12ch ProAI and 4ch Behavior

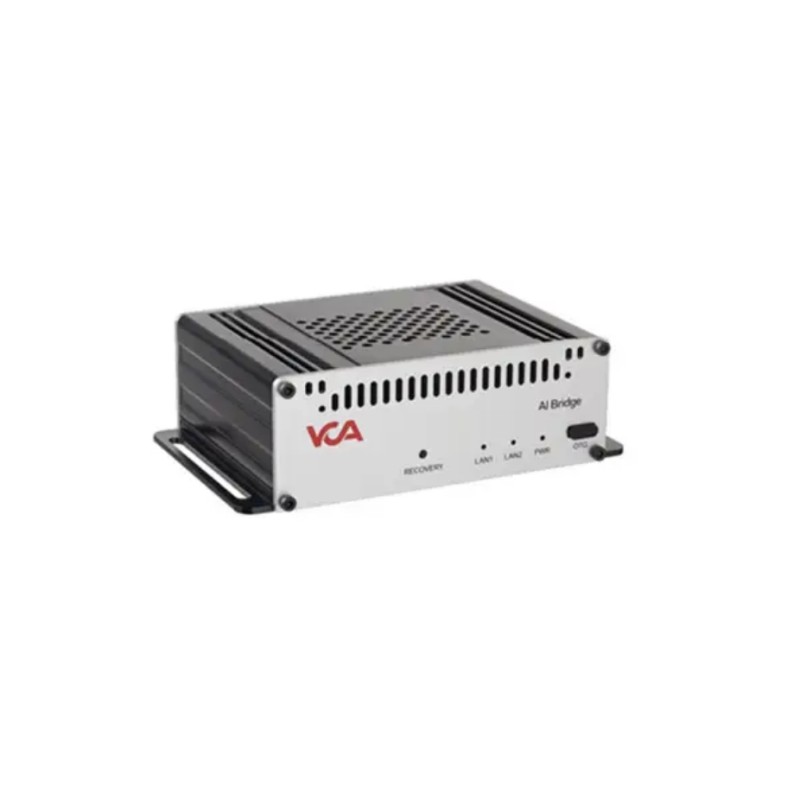

The VCA AI Bridge is a small hardware platform that provides industry-leading deep learning video analytics for event notifications.
Ideal for sites with up to 12ch ProAI and 4ch Behavior

More details about VCA Technology https://vcatechnology.com/products/vcaservers/

Technical data BOX Only:

DESCRIPTION VCA AI Bridge
service
VCAserver
Channel Support Up to 12 Channels using the deep learning object tracker ( ProAi license required).
Event Rules Intrusion detection, Tamper detection, Enter & exit filters, Appear & Disappear filters, Stopping filter, Dwell filter, Direction filter, Counting, Abandoned object filter, Removed object filter, Zones & lines, Speed filter, 3D calibration, Tailgating filter, Logical rules
Event Actions Email, TCP, HTTP
VCAforensics Providing advanced appearance searches using analytic metadata from VCAserver
Channel Support Up to xx Channels (VCAserver deep learning) object tracker configuration required).
system
Services VCAserver
Optional: VCAforensics
Operating System Ubuntu 20.04 LTS Desktop
Core Module Orin Nano 8GB
GPU 1024-core Ampere, with 32 Tensor Cores
System Drive 250Gb, M.2 NVMe
Network 1Gb Ethernet
Ports
USB 2 x USB 3.1 Gen 1 (Type-A)
Video (GPU) 1 x micro HDMI
Network 2 x RJ-45
GENERAL
Power Source DC 12V/3A (1 x DC power jack)
Power Consumption TBD
Operating Temperature 0°C ~ 40°C
Humidity 20% - 85% RH
Dimensions 128.5mm(W) x 39.1mm(H) x 79mm(D)
Weight Approx. 350g
Housing Color & Material Black/Silver & Metal

Details about VCA Ai Bridge APB302 VCA Server up to 12ch ProAI and 4ch Behavior

Category Recording softwareBrand VCA TechnologyReference 231278Delivery Time Ordered and on the way. For more information, please contact us.Condition New
