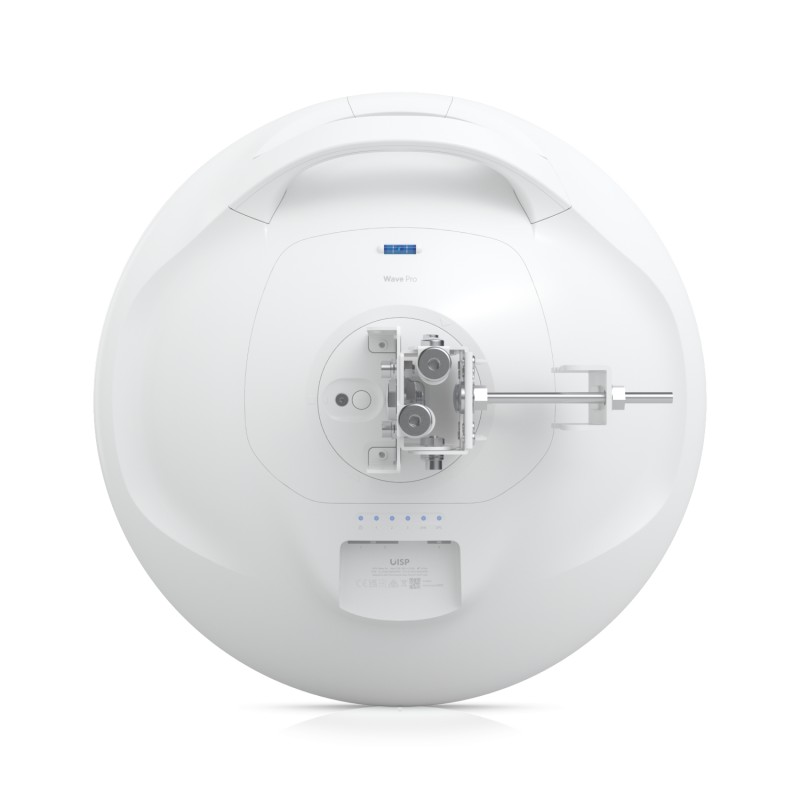

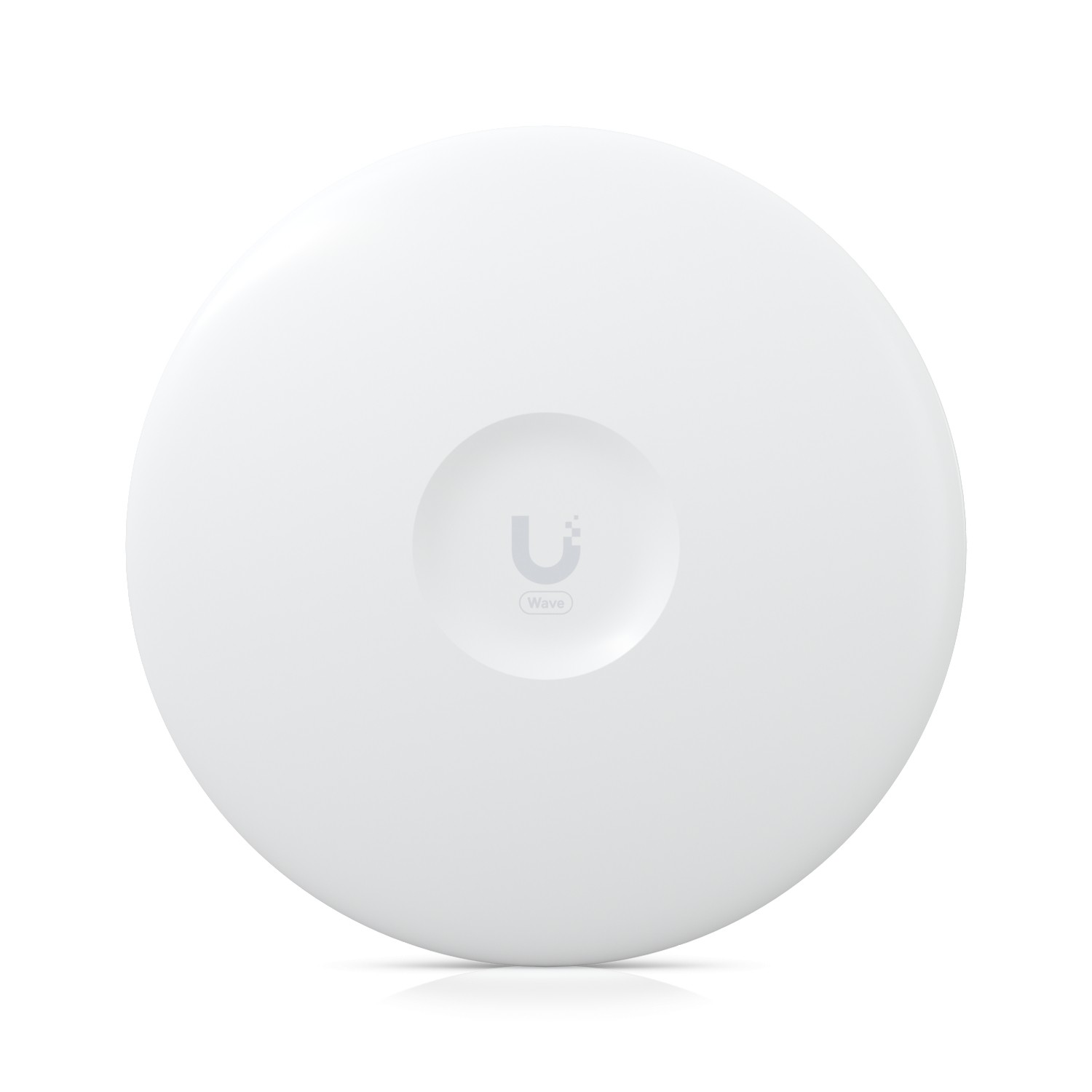

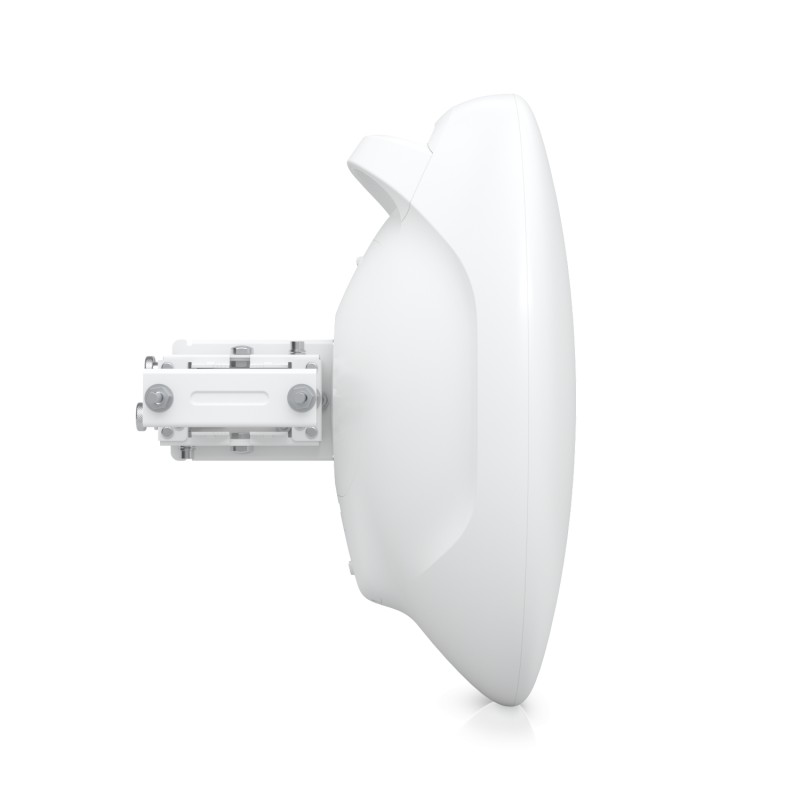

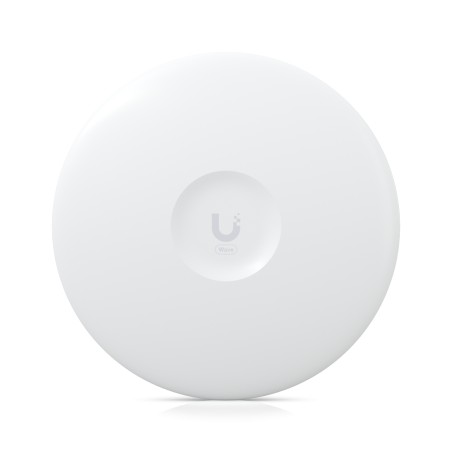

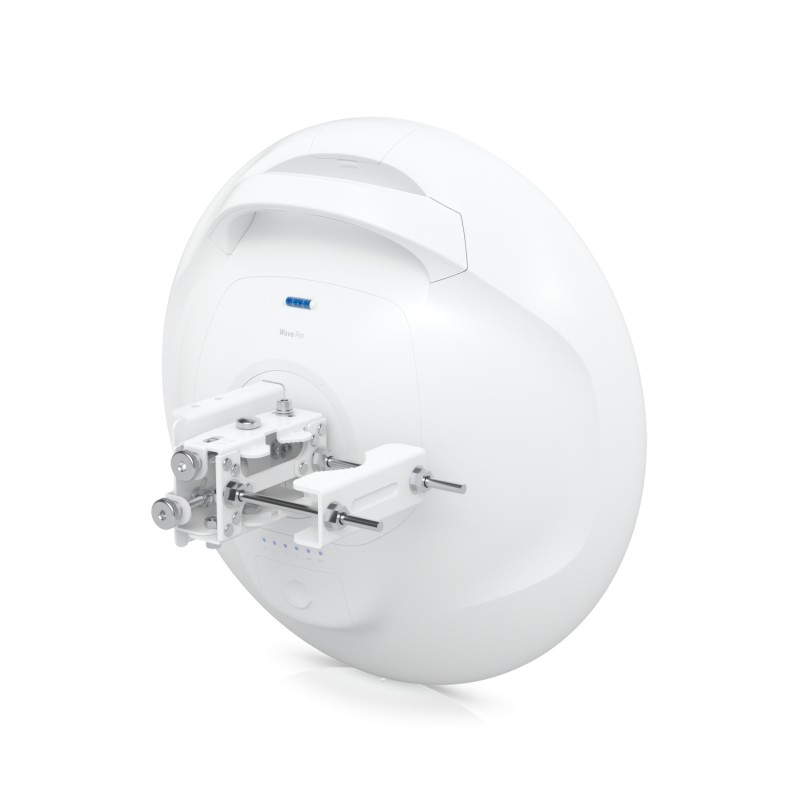

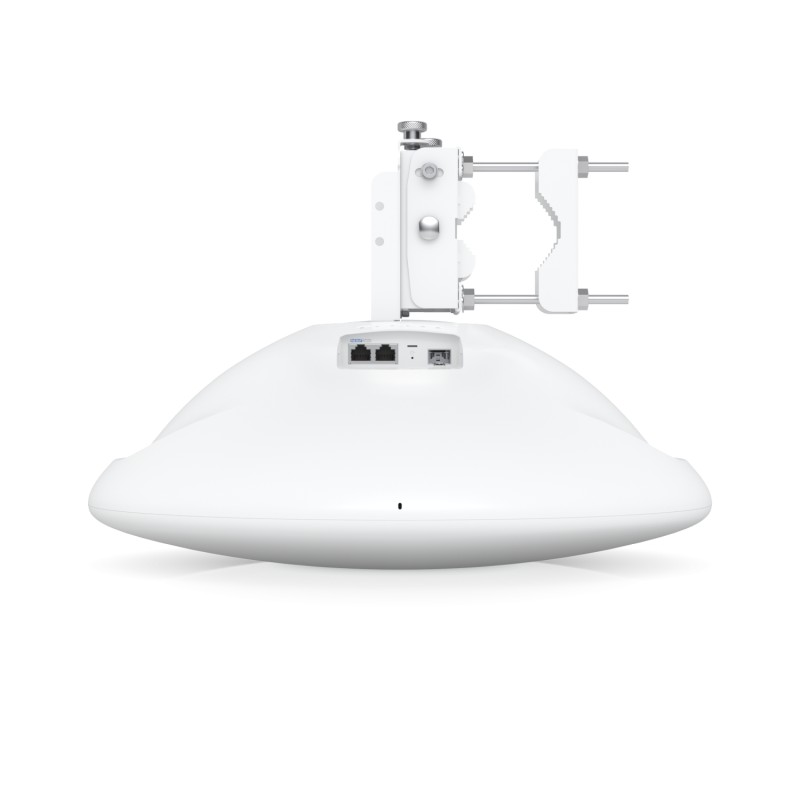

Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
High capacity 60 GHz radio that supports PtP (Bridge) and PtMP connections over long distances.
Compatibility and supported distances:
- PtP: Up to 15 km
- PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
60 GHz primary radio with 5.4 Gbit/s (2.7 Gbit/s duplex) maximum throughput
Weatherproof backup radio with 5 GHz and more than 800 Mbit/s
(2) 2.5 GbE and (1) 10G SFP+ ports
Ergonomic transport handle
Precision alignment bracket
Integrated GPS and Bluetooth
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5") |
| Weight | Without bracket: 2.8 kg (6.2 lb) With bracket: 4 kg (8.8 lb) |
| Housing materials | Aluminium alloy, UV-stabilized plastic |
| Mounting material | Stainless steel |
| Diameter of the pole mount | 25 to 76.2 mm (1 to 3") on the outer tube diameter |
| Wind load | 369 N at 200 km/h (83 lbf at 125 mph) |
| Weatherproof | IPX6 |
| hardware | |
| Processor | Quad-core ARM® Cortex®-A53 with 1.4 GHz |
| Memory | DDR3L 512 MB |
| Network interface | (2) 2.5 GbE RJ45 ports (1) 10G SFP+ port |
| Max. Power consumption | 26W |
| Power method | Passive PoE 4-pair (1, 2+ 3, 6-) (4, 5+ 7, 8-) Passive PoE 2-pair (4, 5+ 7, 8-), only for 44-54 V DC |
| Power supply | 48 V DC, 0.65 A, 2.5 GbE PoE adapter (included in scope of delivery) |
| Supported voltage range | 44-54 V DC 22-27 V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, (2) Ethernet, SFP+, GPS, Link |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| software | |
| Operating mode | PtP, PtMP station |
| Ubiquiti-specific functions | Integrated 60 GHz radio, Discovery protocol, Wave technology |
| Services | UISP, Ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, route tracing, speed test |
| Network | Bridge/Router* mode *Router is only available in PtMP station mode. |
| Application requirements | UISP: Version 2.3.0 and higher |
| System | |
| Total throughput | 5.4 Gbit/s (2.7 Gbit/s duplex) |
| Max. Max. range | PtP: Up to 15 km PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro) |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depending on the regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depending on the regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 46 dBi |
| Polarization | Vertical linear |
| Beam width | Azimuth: 3 dB 1.3° Elevation: 3 dB 1.3° |
| Backup RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* USA/CA Worldwide | U-NII-1 5150-5250 MHz U-NII-2A 5250-5350 MHz U-NII-2C 5470-5725 MHz U-NII-3 5725-5850 MHz 5150-5875 MHz *Depending on the regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Max. conducted transmission power | 27 dBm |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 22 dBi |
| Polarization | Dual-linear |
| Beam width | Azimuth: 3 dB 8° Elevation: 3 dB 8° |
| Cross-pole isolation | 20 dB |
| LEDs | |
| Power | Flashing white: Start-up in progress. White: no connection to the UISP application. Blue: Connection to the UISP application. Flashing blue: Localization in progress. Blue/white: Firmware update in progress |
| Ethernet | (2) Flashing blue: Ethernet traffic detected |
| SFP+ | (1) Flashing blue: SFP+ traffic detected |
| Left | White: 5 GHz connection. Blue: 60 GHz connection |
| GPS | Blue: Reception of at least (4) GPS satellite signals |
Details about Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
