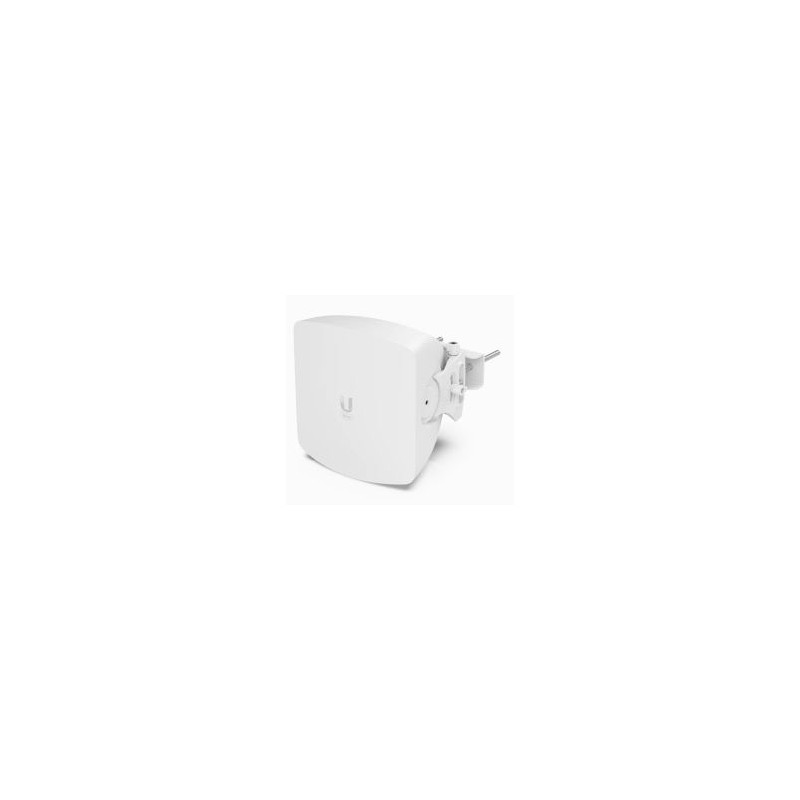

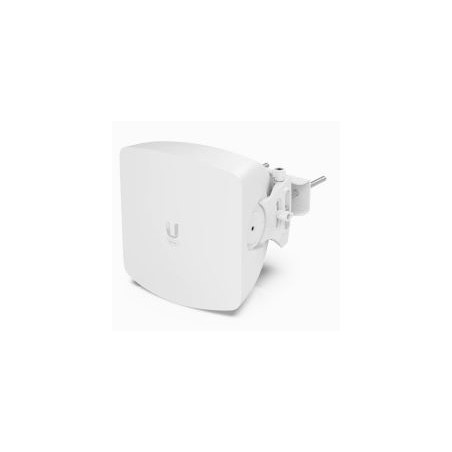

Ubiquiti Wave-AP 60 GHz PtMP access point
Ubiquiti Wave-AP 60 GHz PtMP access point
Ubiquiti Wave-AP 60 GHz PtMP access point
60 GHz PtMP access point with wave technology.
60 GHz 5.4 Gbit/s max. throughput (2.7 Gbit/s duplex) Main radio
30° sector coverage
Weatherproof backup radio with 5 GHz and more than 800 Mbit/s
(1) 2.5 GbE and (1) 10G SFP+ WAN ports
Capacity for 15 clients:
- Wave Pro (8 km connection range)
- Wave Long-Range (8 km connection range)
- Wave Nano (5 km connection range)
Integrated GPS and Bluetooth
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") |
| Weight | 2.3 kg (5.07 pounds) |
| Housing materials | Aluminium alloy, UV-stabilized polycarbonate |
| Pole mount diameter | 25 to 76 mm (1 to 3") on the outside diameter of the tube |
| Wind load | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproof | IPX6 |
| hardware | |
| Processor | Quad-core ARM® Cortex®-A53 with 1.4 GHz |
| Memory | DDR3L 512 MB |
| Network interface | (1) 2.5 GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10) * Only active if the SFP+ port is down. |
| Max. Power consumption | 24W |
| Power method | Passive PoE 4-pair (1, 2+ 3, 6-) (4, 5+ 7, 8-) Passive PoE 2-pair (4, 5+ 7, 8-), only for 44-54 V DC |
| Power supply | 48 V DC, 0.65 A 2.5 GbE PoE adapter (included in scope of delivery) |
| Supported voltage range | 44-54 V DC 22-27 V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| software | |
| Operating mode | PtMP access point |
| Ubiquiti-specific functions | Wave technology |
| Services | UISP, Ping watchdog, NTP client, SNMP |
| Tools | Antenna pointing, discovery utility, ping, route tracing, speed test |
| network | bridge mode |
| Application requirements | UISP: Version 1.5.7 and higher |
| System | |
| Total throughput | 5.4 Gbit/s (2.7 Gbit/s duplex) |
| Supported clients include | 15 |
| Max. Range | Connection to a Wave Pro: up to 8 km Connection to a Wave Long-Range: up to 8 km Connection to a Wave Nano: up to 5 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57-71 GHz *Depending on the regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depending on the regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 24 dBi |
| Polarization | Vertical linear |
| Beam width | Azimuth: 3 dB 30° Elevation: 3 dB 3° |
| Electrical down tilt | 0° |
| Backup RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* USA/CA Worldwide | U-NII-1 5150-5250 MHz U-NII-2A 5250-5350 MHz U-NII-2C 5470-5725 MHz U-NII-3 5725-5850 MHz 5150-5875 MHz *Depending on the regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 12 dBi |
| Cross-pole isolation | 10 dB |
| Polarization | Dual-linear |
| Beam width | Azimuth: 3 dB 35° Elevation: 3 dB 60° |
| Electrical downward tilt | 0° |
| LEDs | |
| Power | Flashing white: Start-up in progress. White: no connection to the UISP application. Blue: Connection to the UISP application. Flashing blue: Localization in progress. Blue/white: Firmware update in progress |
| Ethernet | Flashing white: Ethernet traffic detected. Flashing blue: SFP+ traffic detected |
| GPS | Blue: Reception of at least (4) GPS satellite signals |
