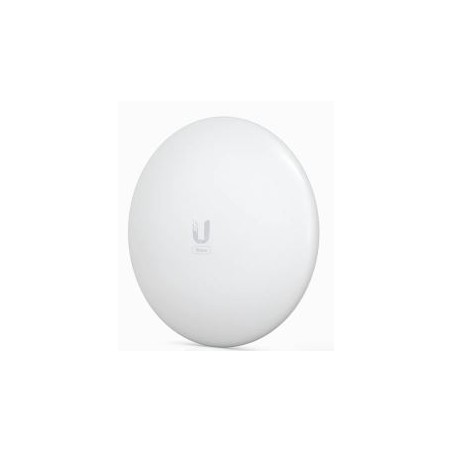

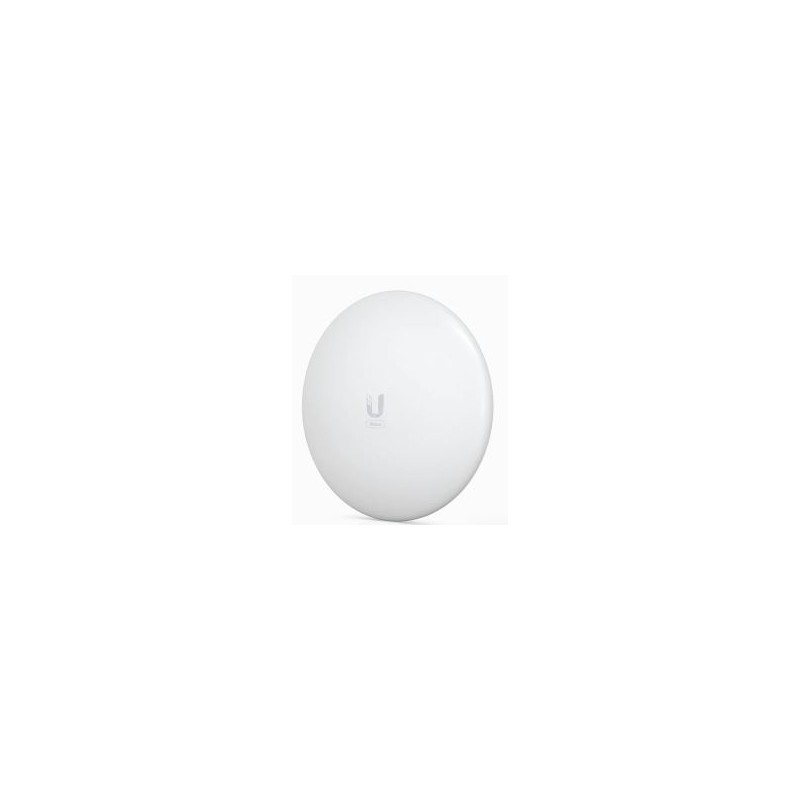

Ubiquiti Wave-Nano 60 GHz PtMP station
Ubiquiti Wave-Nano 60 GHz PtMP station
Ubiquiti Wave-Nano 60 GHz PtMP station
60 GHz PtMP station with Wave technology.
Compatibility and supported distances:
- Wave AP - 5 km connection range
- Wave AP Micro - 4 km connection range
2 Gbit/s max. throughput (1 Gbit/s duplex)
Weatherproof backup radio with 5 GHz and more than 800 Mbit/s
(1) GbE RJ45 port
Integrated GPS and Bluetooth
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | Ø256.5 x 113.5 mm (Ø10.1 x 4.5") |
| Weight | Without bracket: 932 g (2.1 lb) With bracket: 1.2 kg (2.6 lb) |
| Housing materials | Aluminium alloy, UV-stabilized plastic |
| Mounting materials | Aluminium alloy, UV-stabilized plastic |
| Diameter of the pole mount | 25 to 63.5 mm (1 to 2.5") on the outer tube diameter |
| Wind load | 127 N at 200 km/h (28.6 lbf at 125 mph) |
| Weatherproof | IPX6 |
| hardware | |
| Processor | Dual-core ARM® Cortex®-A53 with 1 GHz |
| Memory | DDR3L 512 MB |
| Network interface | (1) GbE RJ45 port |
| Max. Power consumption | 20W |
| Power method | Passive PoE 4-pair (1, 2+ 3, 6-) (4, 5+ 7, 8-) Passive PoE 2-pair (4, 5+ 7, 8-), only for 44-54 V DC |
| Power supply | 48 V DC, 0.65 A Gigabit PoE adapter (included in scope of delivery). Can be powered via a UISP router or UISP switch |
| Supported voltage range | 44-54 V DC 22-27 V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, Link |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| software | |
| Operating mode | PtMP station, PtP* *FW version 3.2.0 and higher. |
| Ubiquiti-specific functions | Wave AI, discovery protocol |
| services | UISP, Ping watchdog, NTP client, SNMP |
| Tools | Antenna pointing, discovery utility, ping, route tracing, speed test |
| Network | Bridge/Router* mode *Router is only available in PtMP station mode. |
| Application requirements | UISP: Version 1.4.5 and higher |
| System | |
| Total throughput | 2 Gbit/s (1 Gbit/s duplex) |
| Max. Maximum range | 5+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57-71 GHz *Depending on the regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depending on the regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 41 dBi |
| Polarization | Vertical linear |
| Beam width | Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4° |
| Backup RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* USA/CA Worldwide | U-NII-1 5150-5250 MHz U-NII-2A 5250-5350 MHz U-NII-2C 5470-5725 MHz U-NII-3 5725-5850 MHz 5150-5875 MHz *Depending on the regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 19 dBi |
| Polarization | Dual-linear |
| Beam width | Azimuth: 3 dB 14° Elevation: 3 dB 14° |
| Cross-pole isolation | 20 dB |
| LEDs | |
| Power | Flashing white: Start-up in progress. White: no connection to the UISP application. Blue: Connection to the UISP application. Flashing blue: Localization in progress. Blue/white: Firmware update in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: Reception of at least (4) GPS satellite signals |
| Left | White: 5 GHz connection. Blue: 60 GHz connection |
