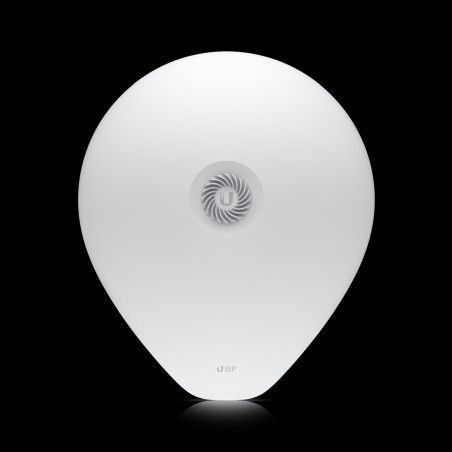

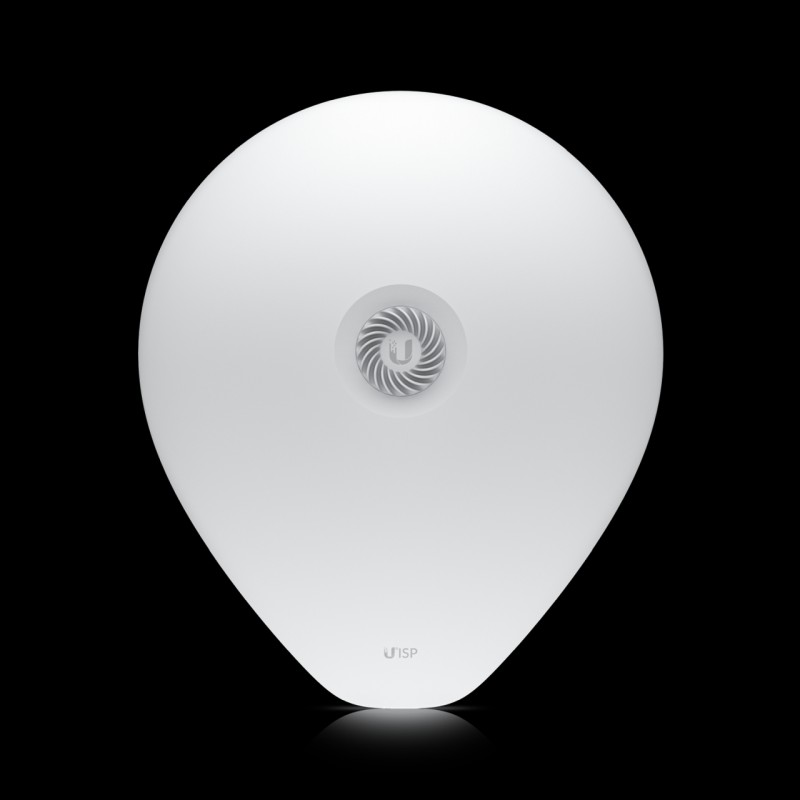

Ubiquiti AF60-XR 60 GHz
Ubiquiti AF60-XR 60 GHz
Ubiquiti AF60-XR 60 GHz
Multi-gigabit 60 GHz bridge designed to establish long-distance connections and deliver a total throughput of 5.4 Gbit/s (2.7 Gbit/s duplex).
Over 15 km connection range
2.7 Gbit/s duplex
Weatherproof backup radio with 5 GHz and more than 800 Mbit/s

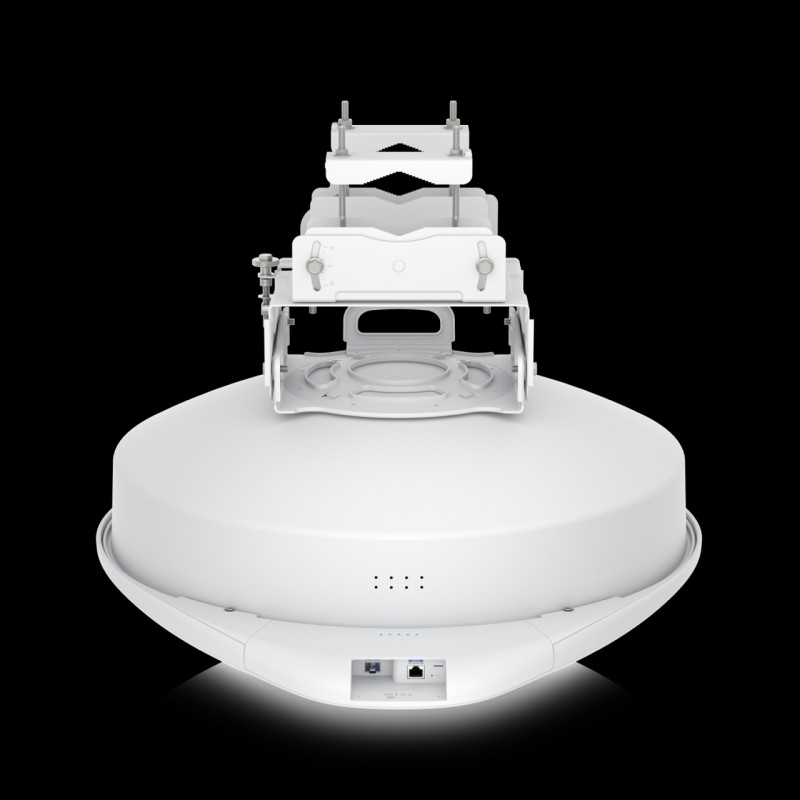

(1) GbE and (1) 10G SFP+ port

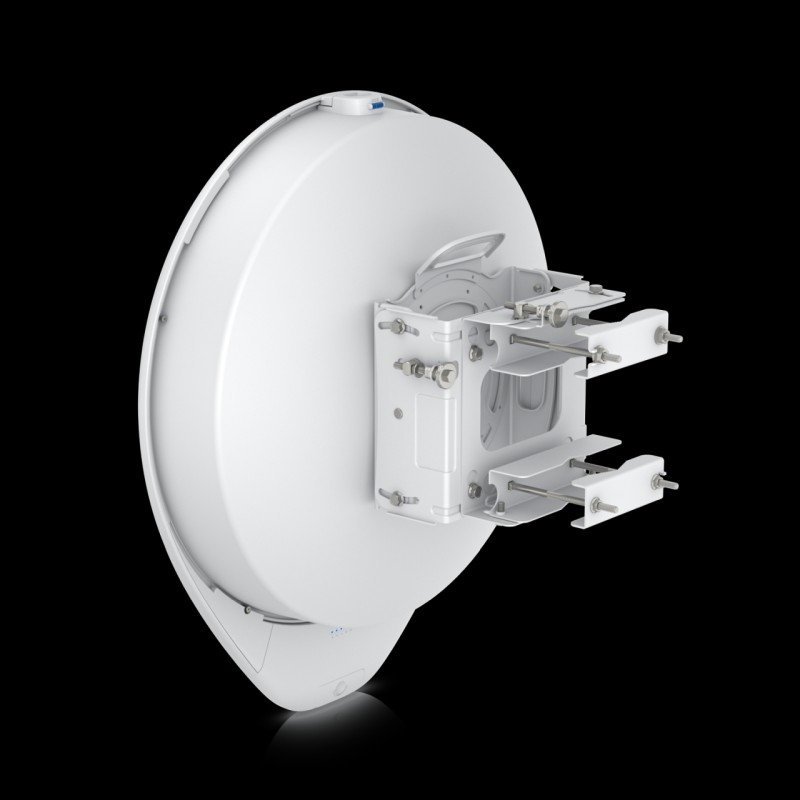

Precision alignment bracket
Integrated GPS and Bluetooth
Note. This product should be purchased in pairs to form connections.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 779 x 664 x 383 mm (30.7 x 26.1 x 15.1") |
| Weight | Without bracket: 8.6 kg (19 lb) With bracket: 13 kg (28.7 lb) |
| Housing materials | UV-stabilized polycarbonate, steel |
| Mounting material | Galvanized steel |

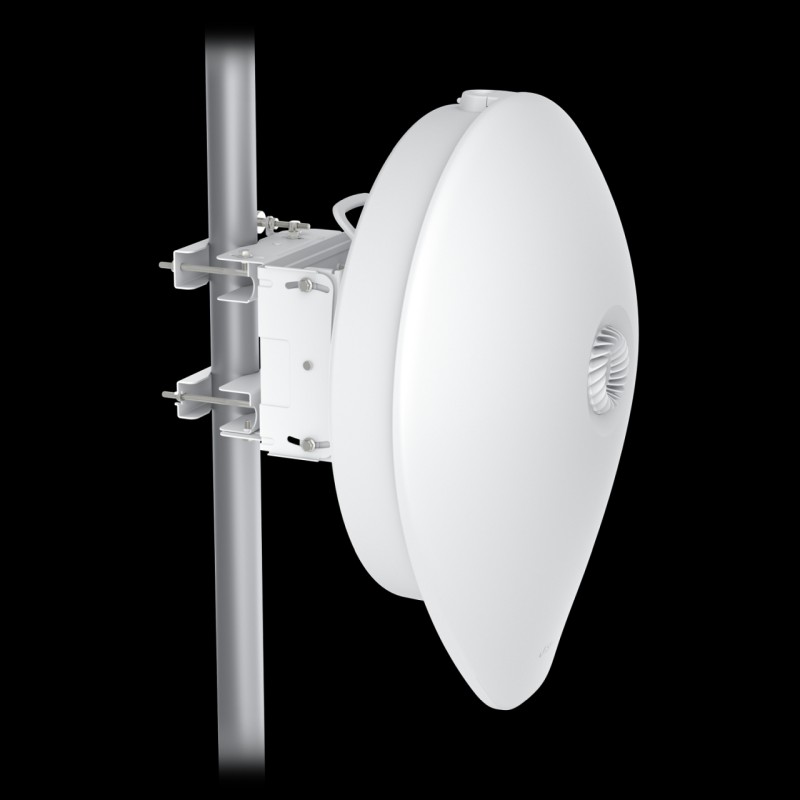

| Mounting bracket | Precision alignment kit (included in scope of delivery). Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on the outer tube diameter |
| Wind load | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Weatherproof | IPX6 |
| hardware | |
| Processor | Quad-core ARM® Cortex®-A53 with 1.4 GHz |
| Memory | DDR3L1 GB |
| Network interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Max. Power consumption | 24W |
| Power method | Passive PoE 4-pair (1, 2+ 3, 6-) (4, 5+ 7, 8-) Passive PoE 2-pair (4, 5+ 7, 8-), only for 44-54 V DC |
| Power supply | 48 V DC, 0.65 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 44-54 V DC 22-27 V DC |
| GPS | Yes |
| HF connections | Internal |
| Button | Factory settings reset |
| Operating temperature | -40 to 55 °C (-40 to 131 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| software | |
| Operating mode | PtP only |
| Ubiquiti-specific functions | Integrated 60 GHz radio, Discovery protocol, Wave technology |
| Services | UISP, Ping watchdog, NTP client, device discovery |
| Tools | Antenna alignment, discovery utility, ping, route tracing, speed test |
| network | Bridge mode |
| Management application | UISP Web: Version 1.4.3 and higher UISP iOS™: Version 2.20 and higher UISP Android™: Version 2.21.5 and higher |
| System | |
| Max. Throughput | 2.7 Gbit/s |
| Max. Range | 15+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57-71 GHz * Depending on the regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depending on the regulatory region. |
| Management radio | 2400-2483.5 MHz |
| Modulation | 16QAM, BPSK, QPSK |
| Polarization | Vertical linear |
| Beam width | Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4° |
| Electrical downward tilt | 0° |
| Backup RF | |
| Operating frequency* USA/CA Worldwide | U-NII-1 5150-5250 MHz U-NII-2A 5250-5350 MHz U-NII-2C 5470-5725 MHz U-NII-3 5725-5850 MHz 5150-5875 MHz *Depending on the regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
| Antenna gain | 26 dBi |
| Polarization | Dual-linear |
| Beam width | Azimuth: 3 dB 5° Elevation: 3 dB 5° |
| Cross-pole isolation | 14 dB |
| Electrical downward tilt | 0° |
| LEDs | |
| Power | Flashing white: booting process in progress. White: not connected to the UISP application. Blue: connected to the UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: reception of at least (4) GPS satellite signals |
| Link | Blue: 5 GHz connection. Blue: 60 GHz connection |
