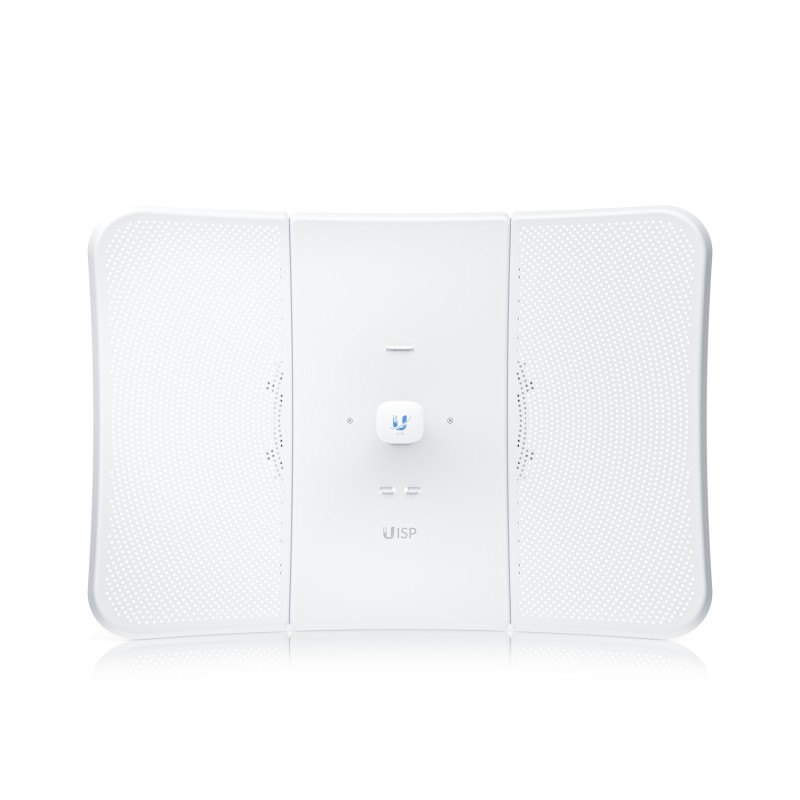

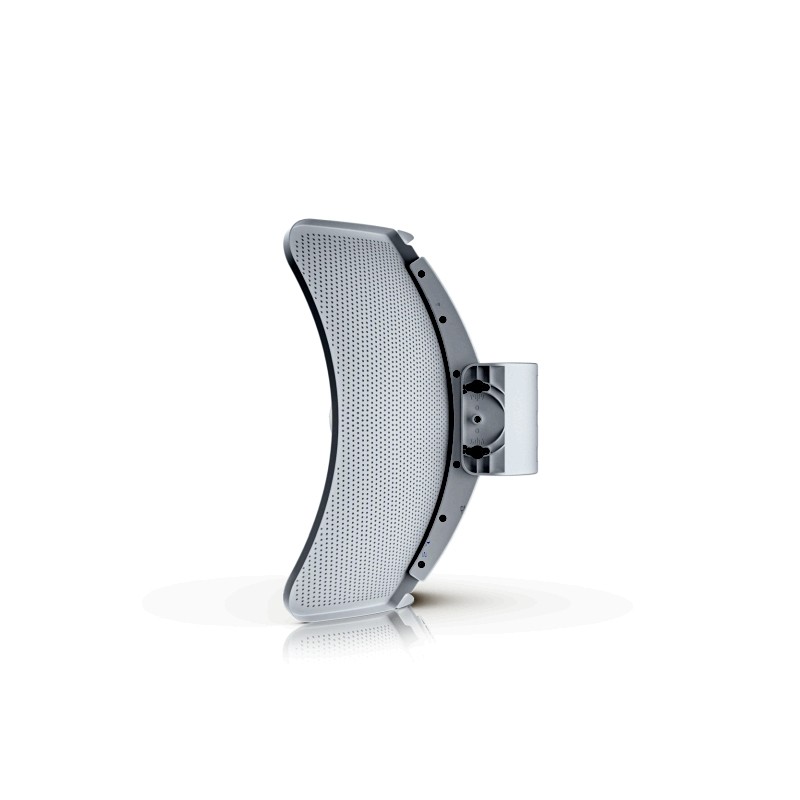

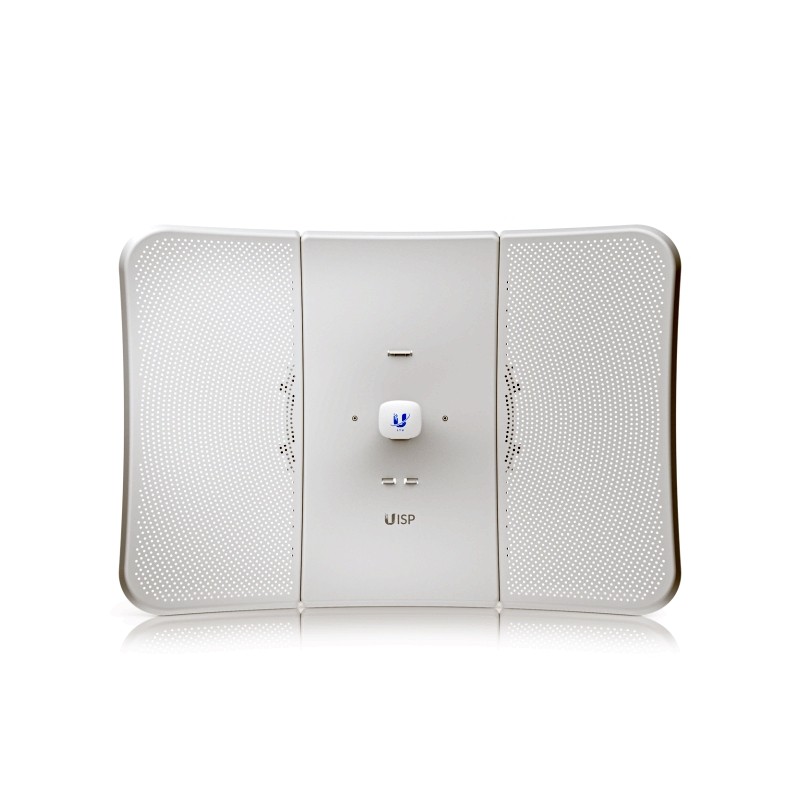

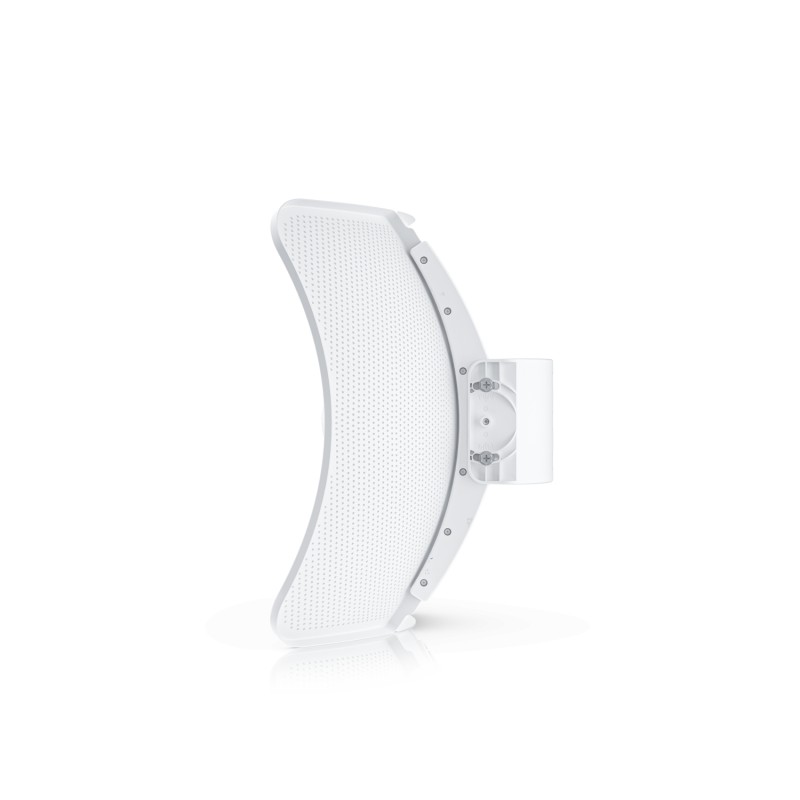

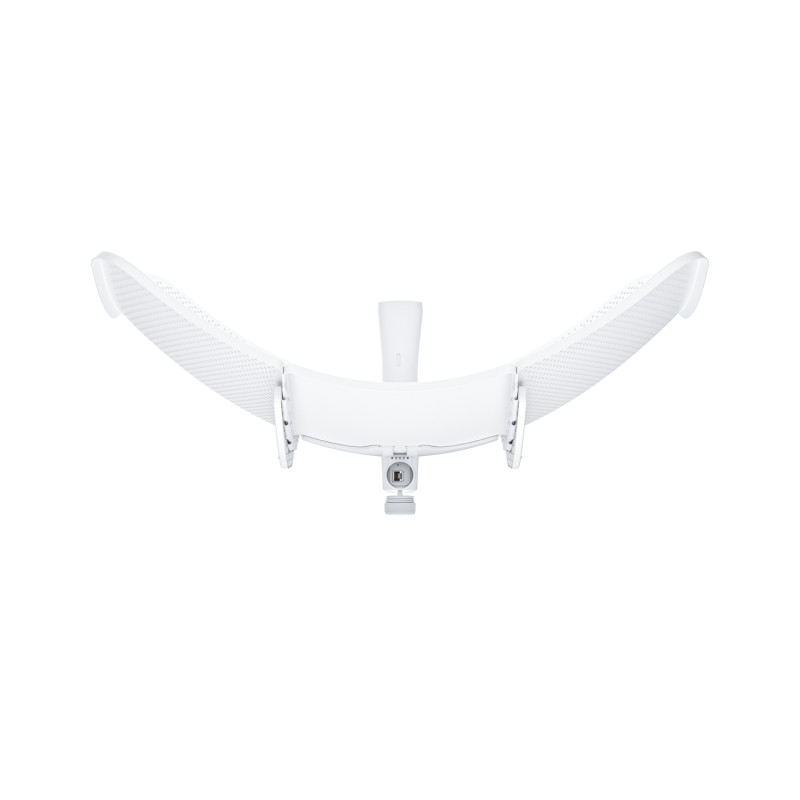

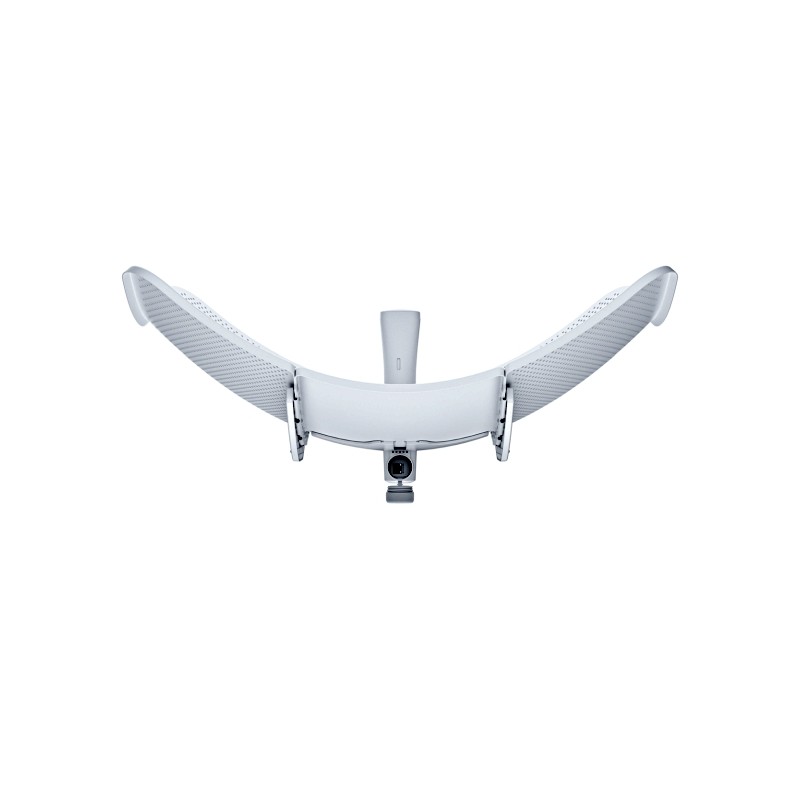

Ubiquiti 5 GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR
Ubiquiti 5 GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR
Ubiquiti 5 GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR
5 GHz LTU client that establishes wireless connections over extremely long distances using an LTU rocket as a base station.
5 GHz, 30+ km connection range
Over 900 Mbps throughput*
Dedicated spectral analysis radio
Easy to assemble
Notice. Only compatible with LTU devices.
*FW version 2.3.0 and higher.
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 747 x 525 x 347 mm (29.41 x 20.67 x 13.66") |
| Weight | 3.2 kg (7.06 pounds) |
| Housing materials | Aluminium alloy, UV-stabilized polycarbonate |
| Mounting material | UV-stabilized polycarbonate |
| Mounting | Integrated pole mount (included in scope of delivery) Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36") |
| Wind load | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproof | IPX6 |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+ 7, 8-) |
| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 22-26 V direct current |
| Max. Power consumption | 8,5 W |
| HF connections | Internal |
| LEDs | Power/Ethernet |
| Button | Factory settings reset |
| Operating temperature | -40 to 55 °C (-40 to 131 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| software | |
| Modes | PtMP CPE, PtP* *Firmware of series 1.5.1 and higher 1.5.x. |
| Services | SNMP, SSH, dynamic DNS, web server, remote protocol, ping watchdog |
| Utility programs | airView®, speed test, alignment, detection, ping, traceroute, cable test, constellation |
| Automatic distance adjustment | Yes |
| Automatic power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is only available in PtMP CPE mode. |
| Security mode | Yes |
| Static reporting | Yes |
| Management interface | Bluetooth management for easy setup via the WEB user interface of the UISP app |
| Minimum requirements for the software | Any modern iOS™ or Android™ based smartphone with web browser |
| System | |
| Maximum throughput | 900+ Mbit/s* *FW version 2.3.0 and higher. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depending on the regulatory region. |
| Max. conducted transmission power | 25 dBm |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and higher. |
| Antenna gain | 29 dBi |
| Isolation | 20 dB |
| Beam width | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downward tilt | 0° |
