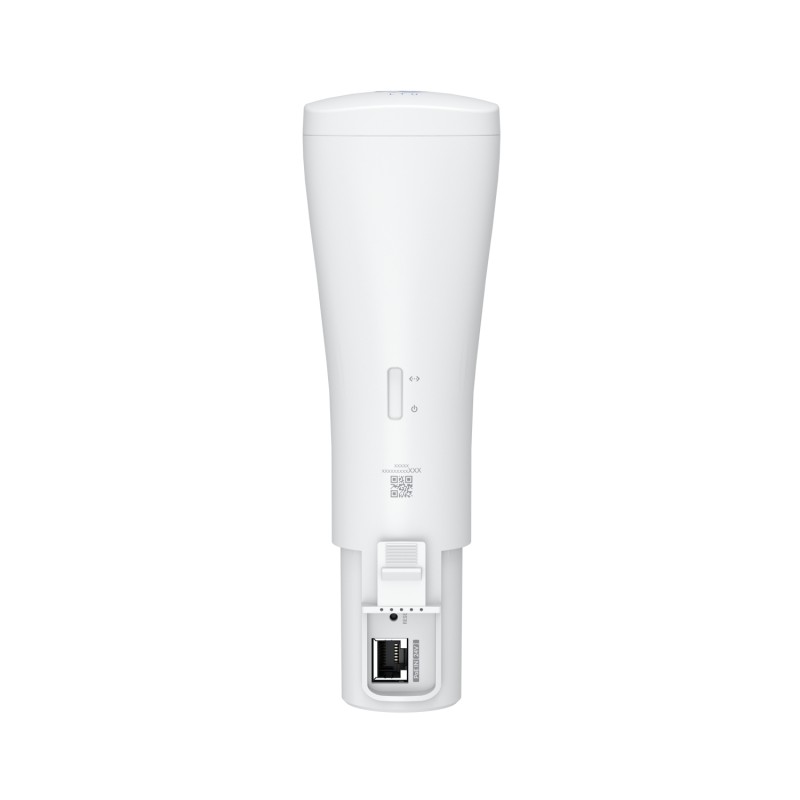

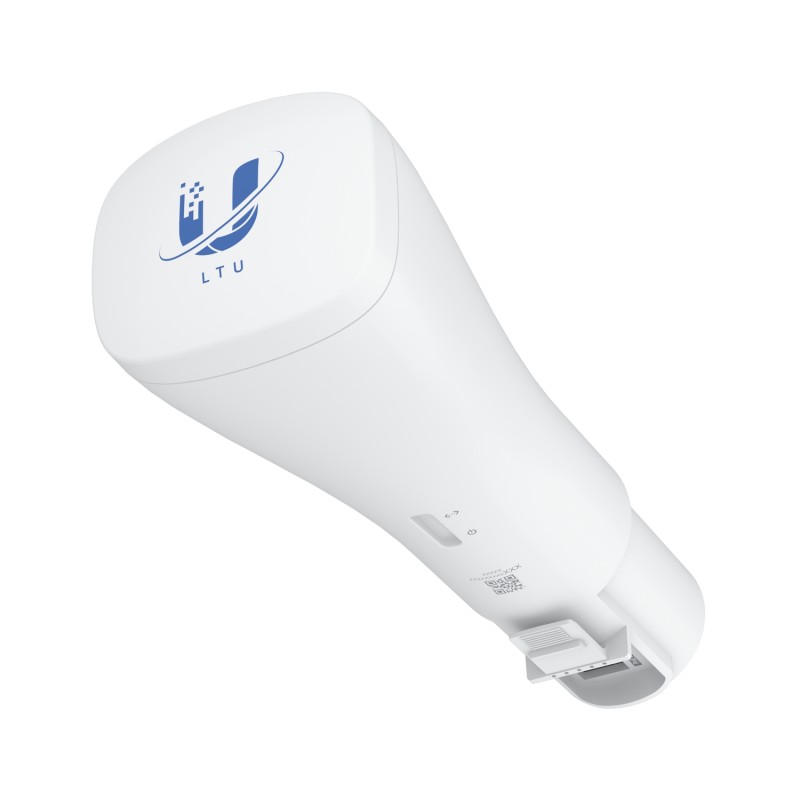

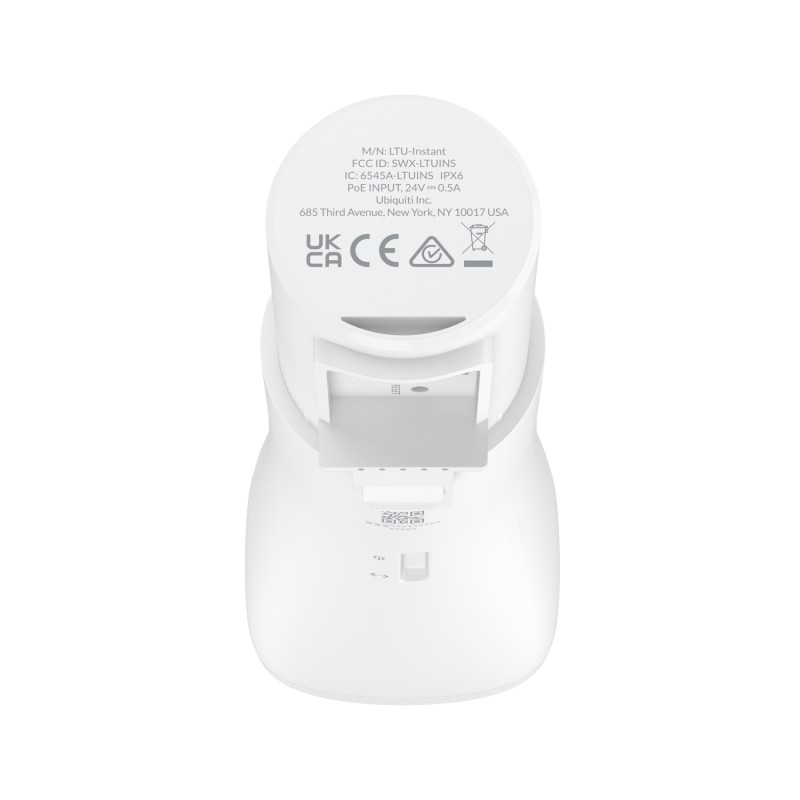

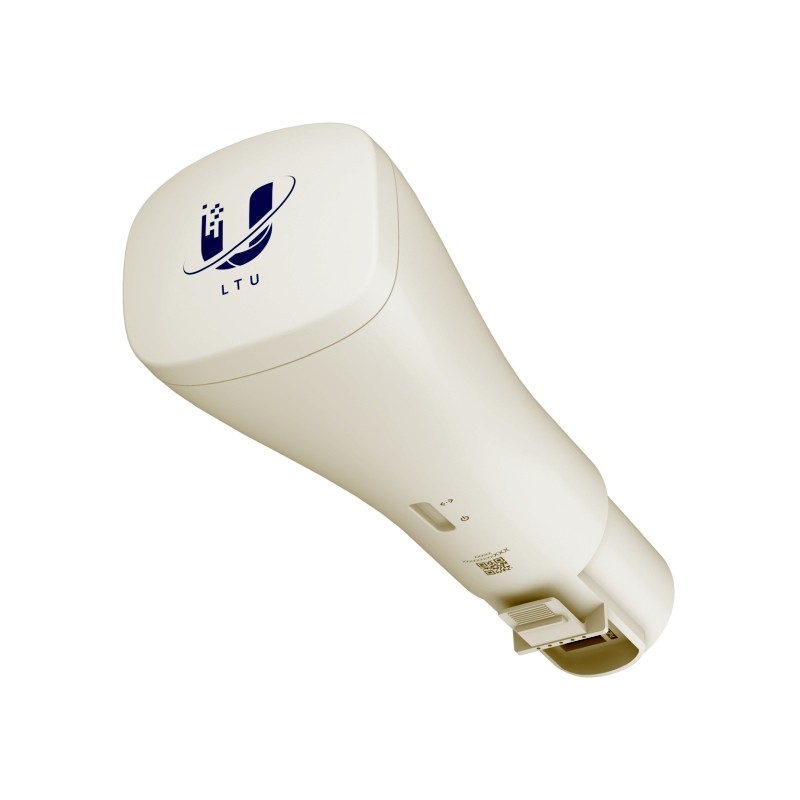

Ubiquiti LTU Instant (5-pack)
Ubiquiti LTU Instant (5-pack)
Ubiquiti LTU Instant (5-pack)
5 GHz LTU client that works in a point-to-multipoint (PtMP) environment with the LTU Rocket as the base station.
Over 900 Mbps throughput*
22 dBi high-gain antenna with InnerFeed® technology
Easy integration into LBE 5AC Gen 2 deployments
Includes (5) feeds and (5) PoE adapters
*FW version 2.3.0 and higher.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Feed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21 inches) Antenna: 358 x 271.95 x 288.5 mm (14.09 x 10.71 x 11.36 inches) |
| Weight of | Lining: 215 g (7.58 oz) Antenna: 890 g (1.96 lb) Antenna with mount: 1.07 kg (2.36 lb) |
| Housing material | UV-stabilized polycarbonate |
| Wind load | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproof | IPX6 |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+ 7, 8-) |
| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 22-26 V direct current |
| Max. Power consumption | 8,5 W |
| HF connections | Internal |
| LEDs | Power/Ethernet |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| software | |
| Modes | PtMP CPE, PtP* *Firmware of series 1.5.1 and higher 1.5.x. |
| Services | SNMP, SSH, dynamic DNS, web server, remote protocol, ping watchdog |
| Utility programs | airView®, speed test, alignment, detection, ping, traceroute, cable test, constellation |
| Automatic distance adjustment | Yes |
| Automatic power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is only available in PtMP CPE mode. |
| Security mode | Yes |
| Static reporting | Yes |
| Management interface | Bluetooth management for easy setup via the WEB user interface of the UISP app |
| Minimum requirements for the software | Any modern iOS™ or Android™ based smartphone with web browser |
| System | |
| Maximum throughput | 900+ Mbit/s* *FW version 2.3.0 and higher. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depending on the regulatory region. |
| Max. conducted transmission power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and higher. |
| Antenna gain | 22 dBi |
| Isolation | 20 dB |
