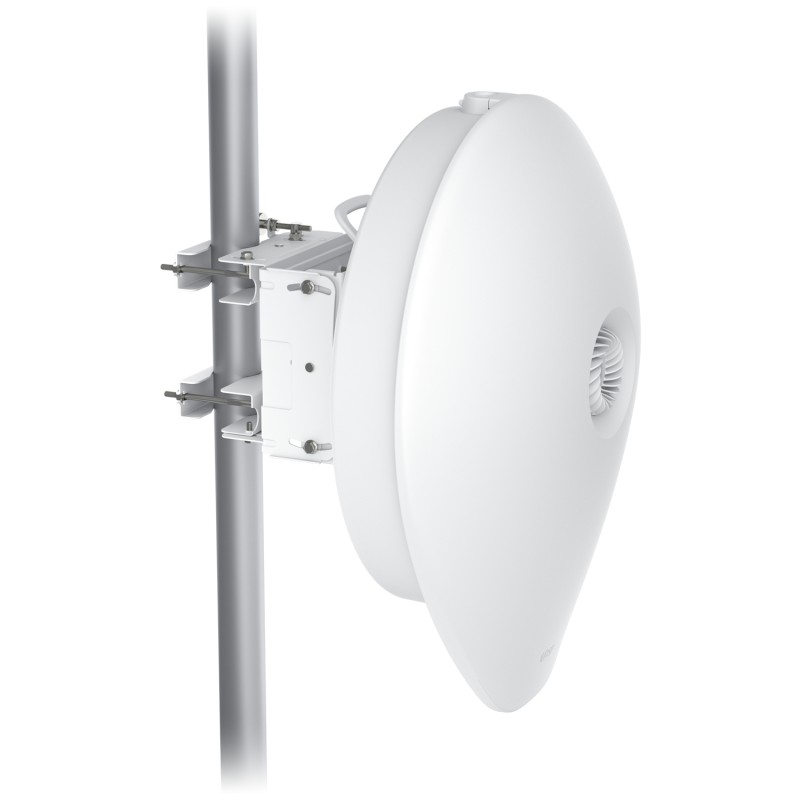

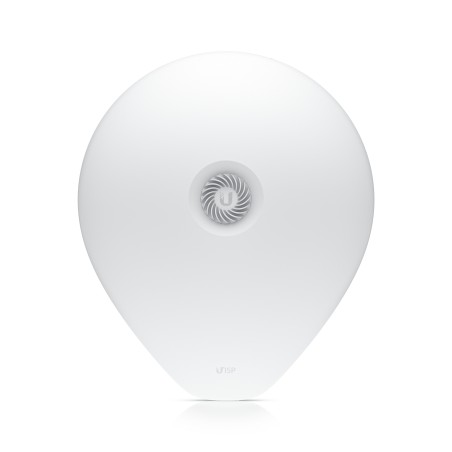

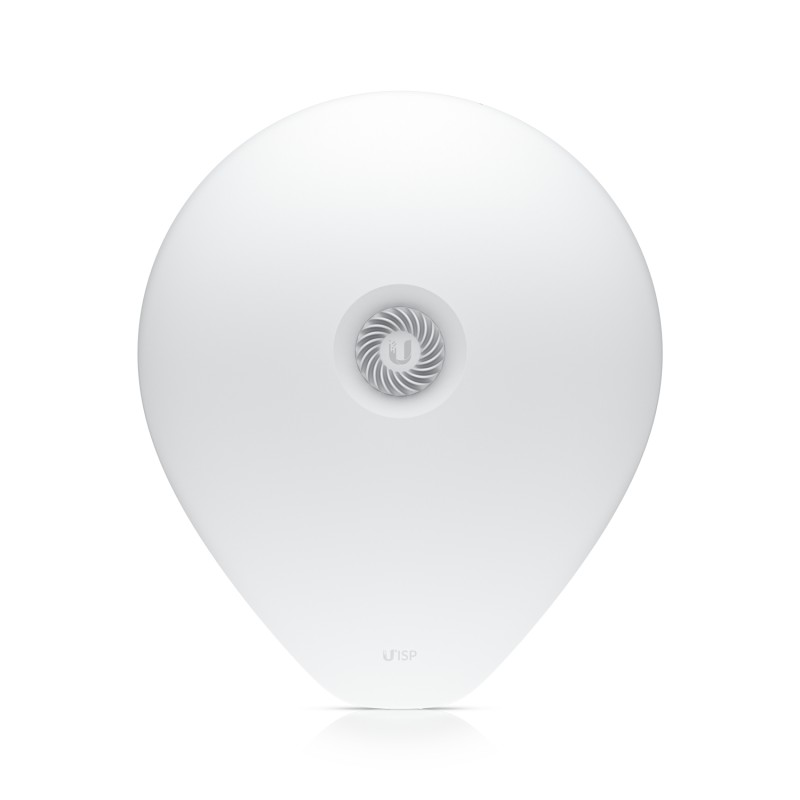

Ubiquiti AF60-XG 60 GHz
Ubiquiti AF60-XG 60 GHz
Ubiquiti AF60-XG 60 GHz
4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.
4+ km connection range
6 Gbit/s max. throughput
Weatherproof backup radio with 5 GHz and more than 800 Mbps
(1) GbE and (1) 10G SFP+ port

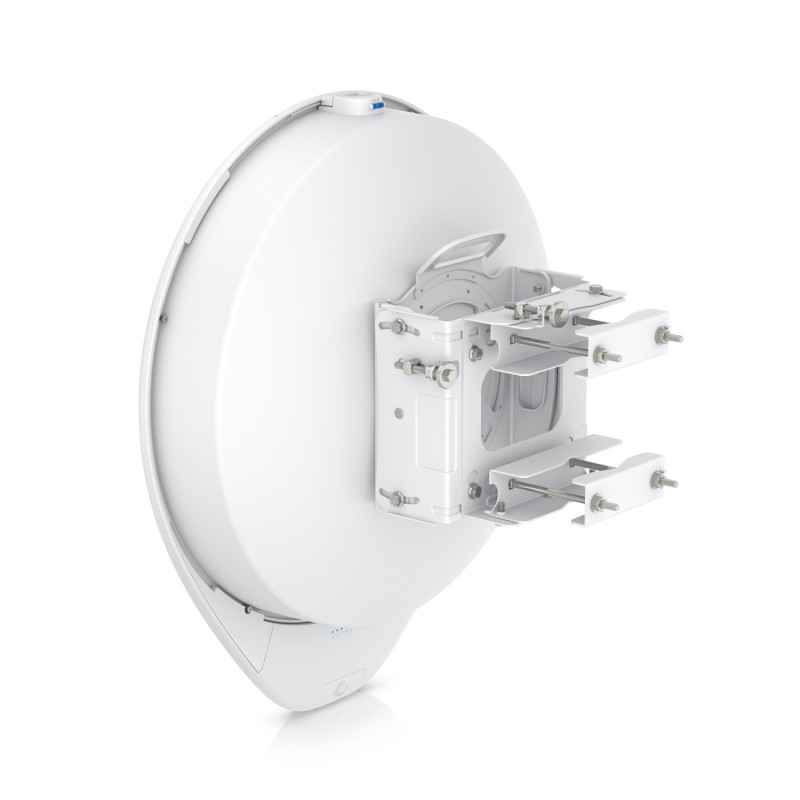

Precision alignment bracket
Integrated GPS and Bluetooth
Terragraph certified
Notice. This product should be purchased in pairs to form connections.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 779 x 664 x 383 mm (30.68 x 26.14 x 15.06") |
| Weight | Without bracket: 8.6 kg (19 lb) With bracket: 13 kg (28.7 lb) |
| Housing materials | UV-stabilized polycarbonate, steel |
| Mounting material | Galvanized steel |
| Mounting bracket | Precision alignment kit (included in scope of delivery) Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") |
| Wind load | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| hardware | |
| Processor | Quad-Core ARM® Cortex® A72 with 1.6 GHz |
| Memory | 2 GB DDR4 |
| Network interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Max. Power consumption | 31,2 W |
| Power method | Passive PoE 4-pair (1, 2+ 3, 6-) (4, 5+ 7, 8-) Passive PoE 2-pair (4, 5+ 7, 8-), only for 44-54 V DC |
| Power supply | 48 V DC, 0.65 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 44-54 V DC 22-27 V DC |
| GPS | Yes |
| HF connections | Internal |
| Button | Factory settings reset |
| Operating temperature | -40 to 55 °C (-40 to 131 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE, Terragraph |
| software | |
| Operating mode | PtP only |
| Services | UISP, ping watchdog, NTP client, system protocol |
| Utilities | Antenna alignment tool, detection utility, ping, speed test |
| Management application | UISP-Web: Version 1.4.3 and higher UISP iOS™ and Android™: Version 2.19 and higher |
| System | |
| Max. Throughput | 5 GHz: 866.6 Mbit/s 60 GHz: 3.8 Gbit/s/6 Gbit/s (with channel bundling activated) |
| Max. Maximum range | 4 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57-66 GHz * Depending on the regulatory region. |
| Channel bandwidth | 2160 MHz/4320 MHz (with channel bundling enabled) |
| Operating channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* *Depending on the channel bandwidth. |
| Polarization | Vertical linear |
| Beam width | Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |
| Backup RF | |
| Operating frequency* USA/California | U-NII-1 5150-5250 MHz U-NII-3 5725-5850 MHz |
| Worldwide | 5150-5875 MHz *Depending on the regulatory region. |
| Channel bandwidth | 20/40/80 MHz |
| Polarization | Dual-linear |
| Beam width | Azimuth: 3 dB 5° Elevation: 3 dB 5° |
| LEDs | |
| Power | Flashing white: booting process in progress. White: not connected to the UISP™ console. Blue: connected to the UISP console |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: reception of at least (4) GPS satellite signals |
| 60G | Blue: active connection |
| 5G | Blue: active connection |
