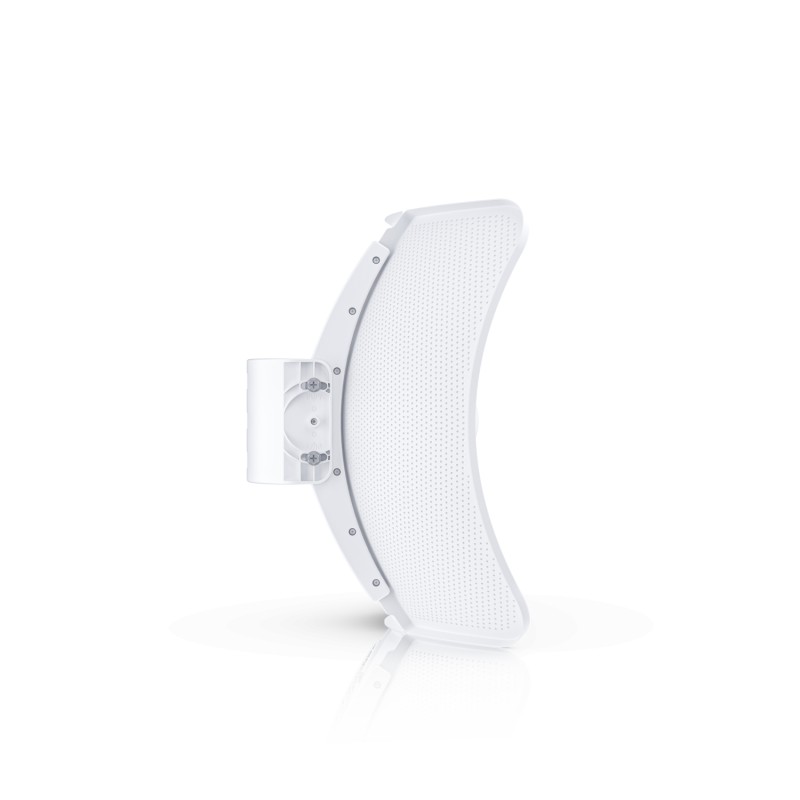

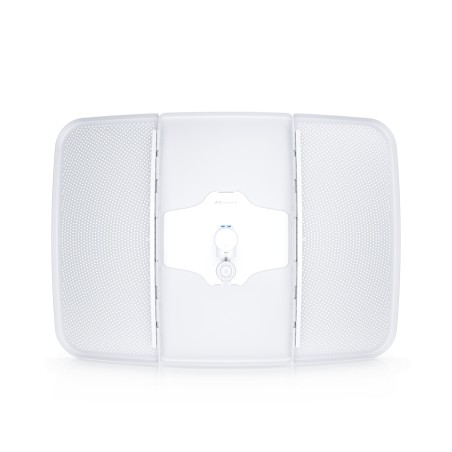

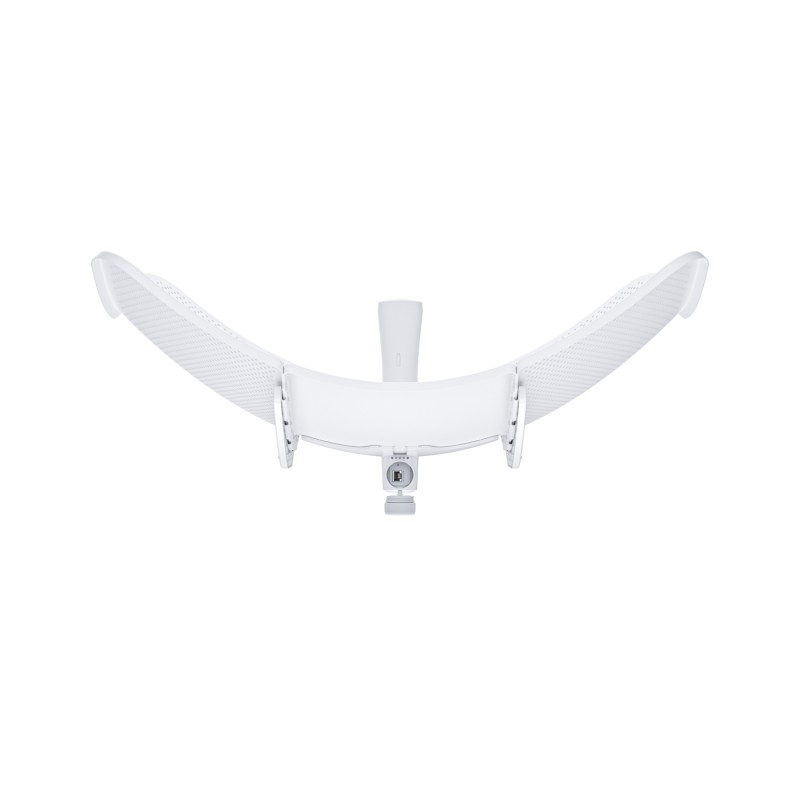

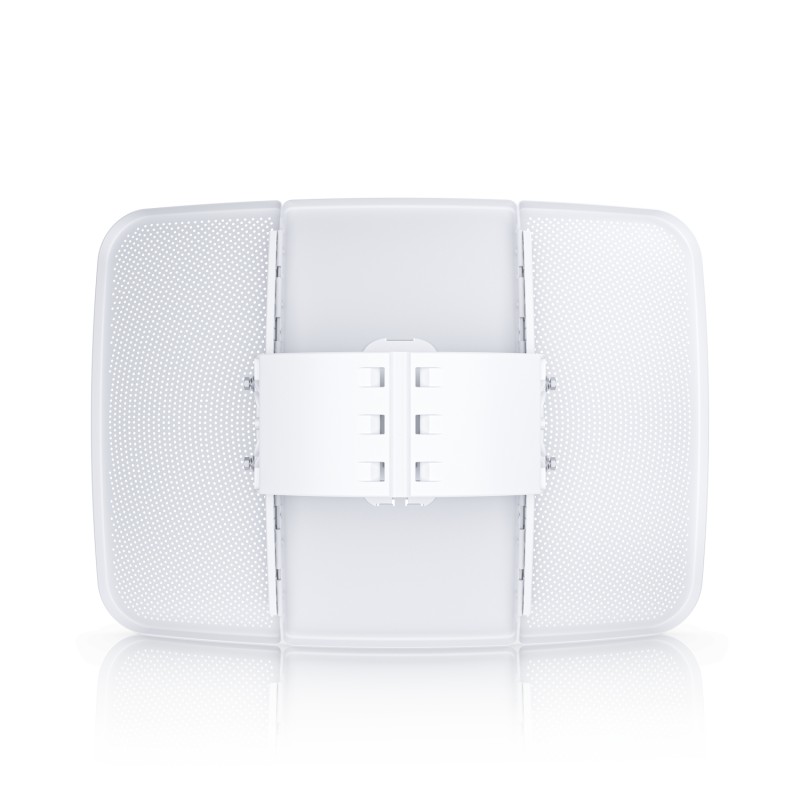

Ubiquiti LiteBeam LBE-5AC-XR
Ubiquiti LiteBeam LBE-5AC-XR
Ubiquiti LiteBeam LBE-5AC-XR
Ultra-light, wireless outdoor station designed to establish connections over extremely long distances.
5 GHz, 30+ km connection range
450+ Mbps throughput
Easy to assemble
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 747 x 525 x 347 mm (29.41 x 20.67 x 13.66") |
| Weight | 3.2 kg (7.06 pounds) |
| Housing materials | Aluminium alloy, UV-stabilized polycarbonate |
| Mounting material | UV-stabilized polycarbonate |
| Mounting | Integrated pole mount (included in scope of delivery) Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36") |
| Wind load | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproof | IPX6 |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+ 7, 8-) |
| Power supply | 24 V DC, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 22-26 V DC |
| Max. Power consumption | 7W |
| HF connections | Internal |
| LEDs | Power/Ethernet |
| Button | Factory settings reset |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| System | |
| Maximum throughput | 450+ Mbit/s |
| Encryption | WPA2-PSK (AES) |
| Software | |
| Modes | PtMP, PtP |
| Services | SNMP, SSH, dynamic DNS, web server, remote protocol, ping watchdog |
| Utilities | airView®, speed test, alignment, detection, ping, traceroute, constellation |
| Management interface | Dedicated management radio for quick device setup via the WEB user interface of the UISP™ mobile app |
| Minimum requirements for the software | Modern web browser or Android/iOS smartphone |
| RF | |
| Operating frequency* | 5.15 to 5.85 GHz * Depending on the regulatory region. |
| Max. conducted transmission power | 25 dBm |
| Management radio | 2400 - 2483.5 MHz |
| Channel bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna gain | 29 dBi |
| Isolation | 20 dB |
| Beam width | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downward tilt | 0° |
