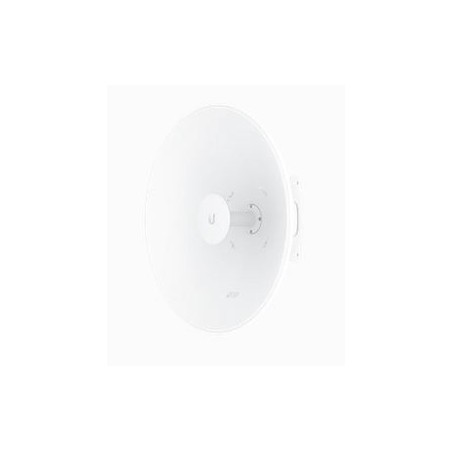

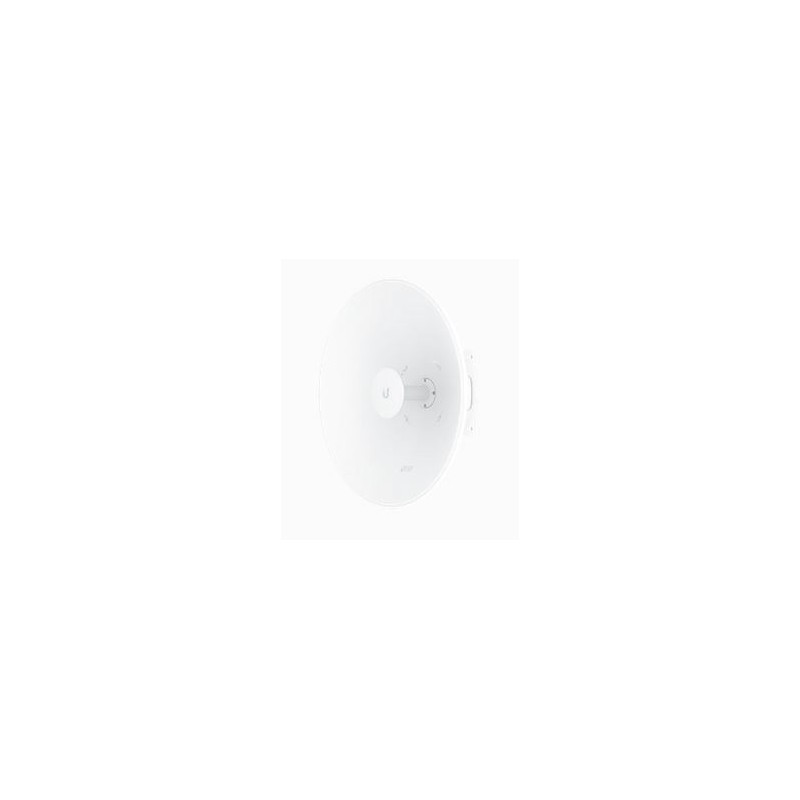

Ubiquiti UISP-Horn PtP dish antenna 5.15 - 6.875 GHz
Article Nr 211896 EAN 810010076687
Ubiquiti UISP-Horn PtP dish antenna 5.15 - 6.875 GHz
Ubiquiti UISP-Horn PtP dish antenna 5.15 - 6.875 GHz
Point-to-point antenna (PtP) that covers a wide operating frequency range (5.15-6.875 GHz).
Frequency range: 5.15 - 6.875 GHz
Over 30 km PtP connection range
Precise mounting bracket for easy installation and alignment
Compatible with AF 5XHD and RP 5AC
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | Ø 650 x 200 mm (Ø 25.6 x 7.9") |
| Weight | Device: 4.54 kg (10 lb) Bracket: 3.1 kg (6.8 lb) |
| Housing materials | Powder-coated galvanized steel, UV-stabilized polycarbonate, aluminum alloy |
| Wind survivability | Up to 200 km/h (124 mph) |
| Wind load | 860 N at 200 km/h |
| Mounting | Alignment mounting kit (included) Mechanical adjustment: ±15° elevation Mast compatibility: Ø40 to 90 mm (Ø1.57 to 3.5 inches) |
| Weatherproof | IPX6 |
| hardware | |
| Frequency range | 5.15 to 6.875 GHz |
| Gain | 30 dBi |
| Beam width | Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) |
| Electrical downward tilt | 0° |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-pole isolation | 20 dB |
Details about Ubiquiti UISP-Horn PtP dish antenna 5.15 - 6.875 GHz
Category Radio relay Brand Ubiquiti Reference 211896 EAN13 810010076687 Delivery Time Ordered and in stock. Please contact us for more information. Condition New
Manufacurer:
UISP-Dish
Weight:
11.800000
Storage:
Zentrallager
