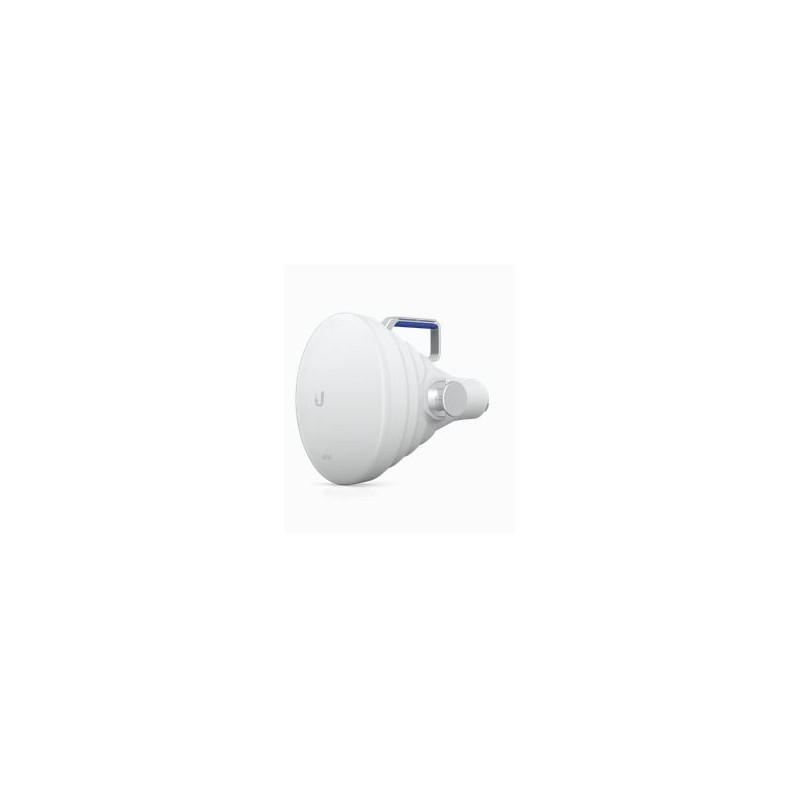

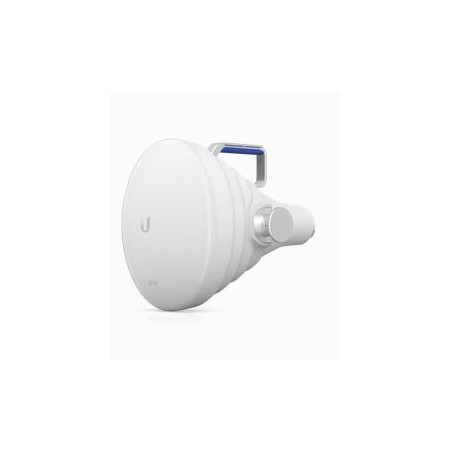

Ubiquiti UISP-Horn PtMP antenna 5.15 - 6.875 GHz
Ubiquiti UISP-Horn PtMP antenna 5.15 - 6.875 GHz
Ubiquiti UISP-Horn PtMP antenna 5.15 - 6.875 GHz
Highly insulating point-to-multipoint horn antenna (PtMP) covering a wide operating frequency range (5.15-6.875 GHz).
High isolation 30° horn antenna covering a wide operating frequency range (5.15 - 6.875 GHz)
15+ km PtMP link range
Die-cast, UV-stabilized polycarbonate housing for improved durability and weather resistance

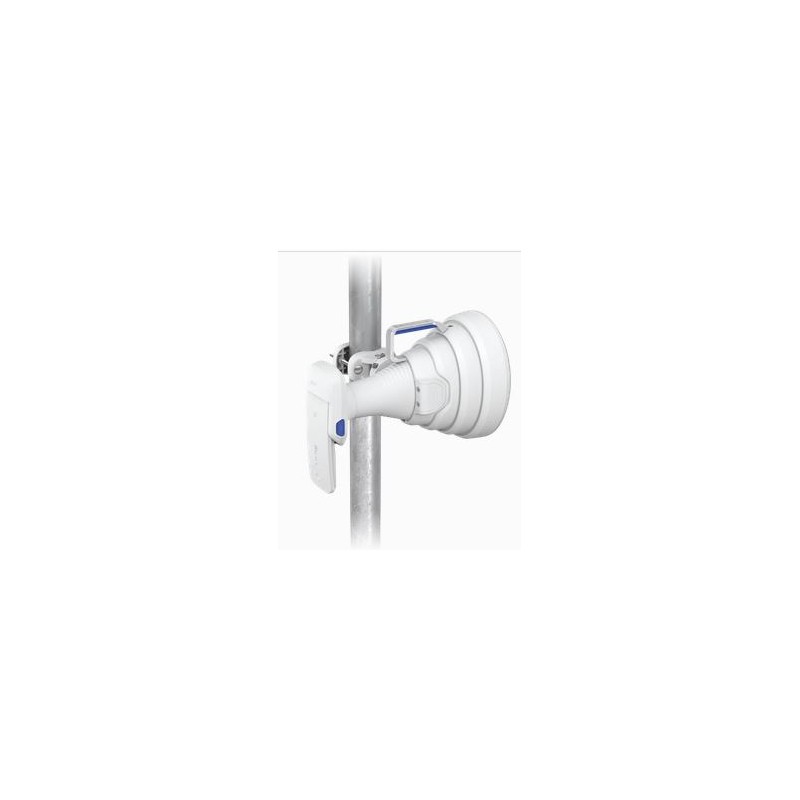

Pole mountable antenna with metal carrying handle
Compatible with AF 5XHD, RP 5AC, LTU Rocket
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 282 x 224 x 380 mm (11.1 x 8.8 x 15") |
| Weight | Device: 3.06 kg (6.75 lb) Bracket: 925 g (2.04 lb) |
| Housing materials | UV-stabilized polycarbonate, aluminum alloy |
| Wind survivability | Up to 200 km/h (124 mph) |
| Wind load | 90 N at 200 km/h |
| Mounting | Alignment mounting kit (included) Mechanical adjustment: ±20° elevation, ±25° azimuth Pole compatibility: Ø25 to 70 mm (Ø1 to 3") |
| Weatherproof | IPX6 |
| hardware | |
| Frequency range | 5.15 to 6.875 GHz |
| Gain | 19.5 dBi |
| Beam width | Azimuth: 30° (6 dB) Elevation: 25° (6 dB) |
| Electrical down tilt | 0° |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-pole isolation | 20 dB |
| Front to rear ratio | Typical: 45 to 50 dB Min.: 40 dB |
