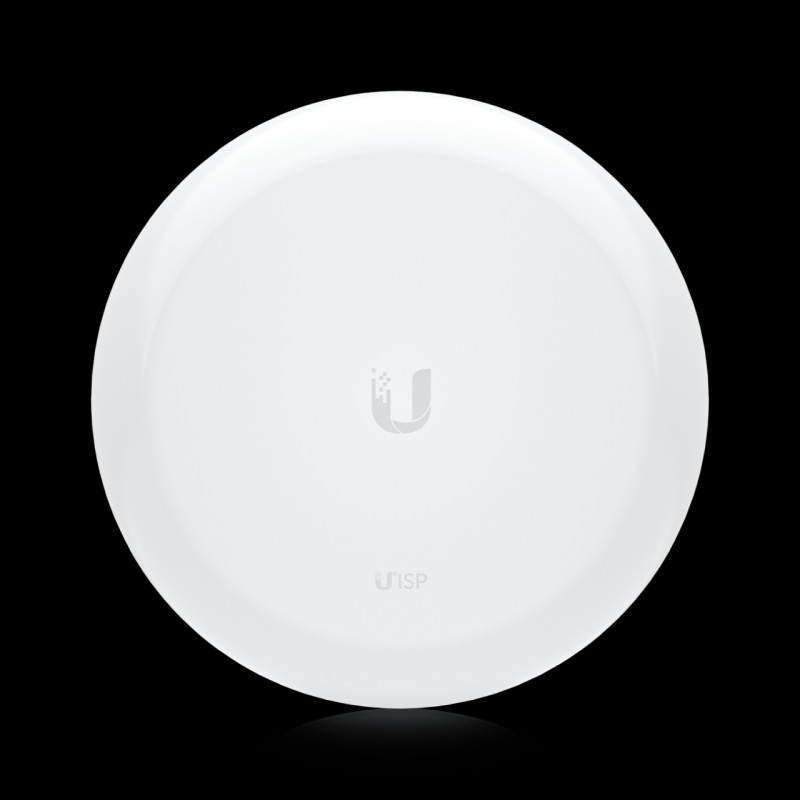

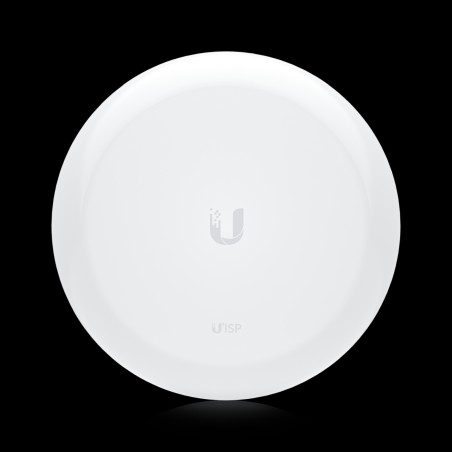

Ubiquiti airFiber PtP bridge &bull 60 GHz &bull 6 Gbps &bull 1x GbE &bull 1 x SFP+ &bull 2 km &bull AF60-HD
Ubiquiti airFiber PtP bridge &bull 60 GHz &bull 6 Gbps &bull 1x GbE &bull 1 x SFP+ &bull 2 km &bull AF60-HD
Ubiquiti airFiber PtP bridge &bull 60 GHz &bull 6 Gbps &bull 1x GbE &bull 1 x SFP+ &bull 2 km &bull AF60-HD
Multi-gigabit 60 GHz bridge with SFP+ support and a connection range of 2 km.
Highlights:
- 2 km connection range
- 6 Gbit/s max. throughput
- (1) GbE and (1) 10G SFP+ port
- Precision alignment bracket
- Integrated GPS
Note. This product should be purchased in pairs to form connections.
Technical specifications:
| Mechanical | |
|---|---|
| Dimensions | Ø189 x 89 mm (Ø7.4 x 3.5") |
| Weight | Without bracket: 1.8 kg (3.9 lb) With bracket: 2.95 kg (6.5 lb) |
| Housing materials | Aluminium alloy, UV-stabilized plastic |
| Mounting material | Stainless steel (SUS304) |

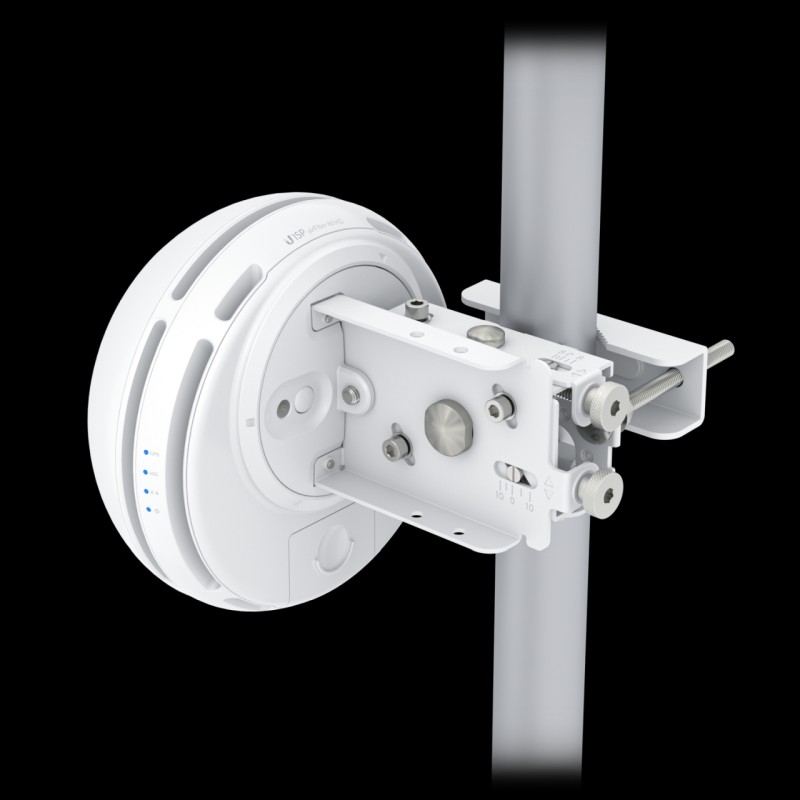

| Mount | 60G precision alignment rod bracket (included) |
| Wind load | 64 N at 200 km/h (14.39 lbf at 125 mph) |
| Weatherproof | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex® A72 with 1.6 GHz |
| Memory | 2 GB DDR4 |
| Network interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Max. Power consumption | 29,31W |
| Power method | Passive PoE 4-pair (1, 2+ 3, 6-) (4, 5+ 7, 8-) Passive PoE 2-pair (4, 5+ 7, 8-), only for 4454 V DC |
| Power supply | 48 V DC, 0.65 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 4454 V DC 2227 V direct current |
| GPS | Yes |
| HF connections | Internal |
| Button | Factory settings reset |
| Operating temperature | -40 to 55 °C (-40 to 131 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE, Terragraph |
| software | |
| Operating mode | PtP only |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device detection |
| Utilities | Beamform info, discovery utility, ping, trace route, speed test |
| network | Bridge mode |
| Wireless settings | GPS synchronization |
| Management interface | Bluetooth management for easy setup via the the WEB user interface of the UISP app |
| Minimum software requirements | Any modern web browser/iOS or Android-based smartphone |
| System requirements | |
| Max. Throughput 60 GHz | 3.8 Gbit/s/6 Gbit/s (with channel bundling activated) |
| Max. Max. range | 2 km |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 50/50 |
| RF | |
| Operating frequency* | 5766 GHz * Depending on the regulatory region. |
| Channel bandwidth | 2160 MHz/4320 MHz (with channel bundling activated) |
| Operating channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* *Depending on the channel bandwidth. |
| Polarization | Vertical linear |
| Beam width | Azimuth: 3 dB 3° Elevation: 3 dB 3° |
| Electrical downward tilt | 0° |

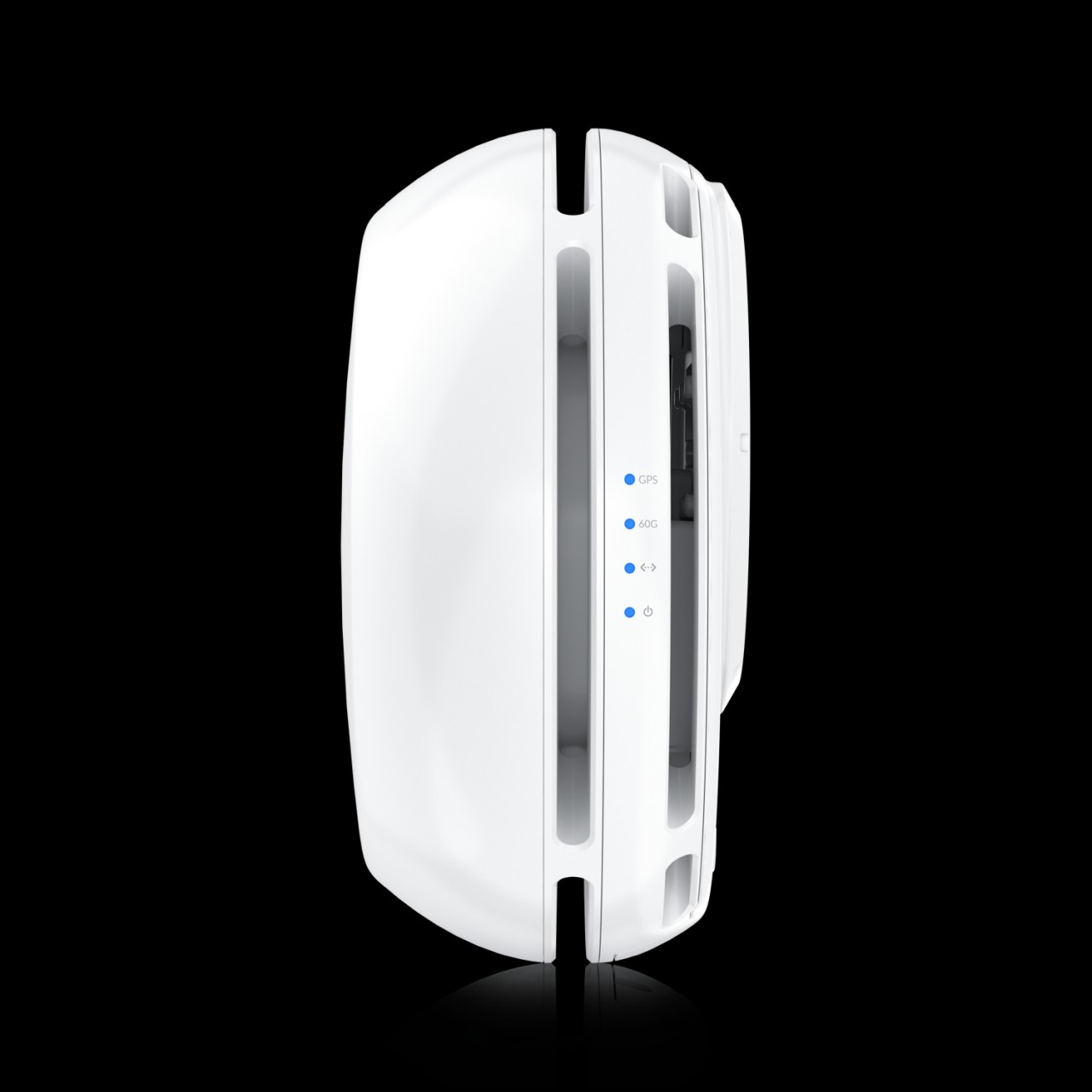

| LEDs | |
| Power | Flashing white: booting process in progress. White: not connected to the UISP console. Blue: connected to the UISP console |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: reception of at least (4) GPS satellite signals |
| 60G | Blue: active connection |
