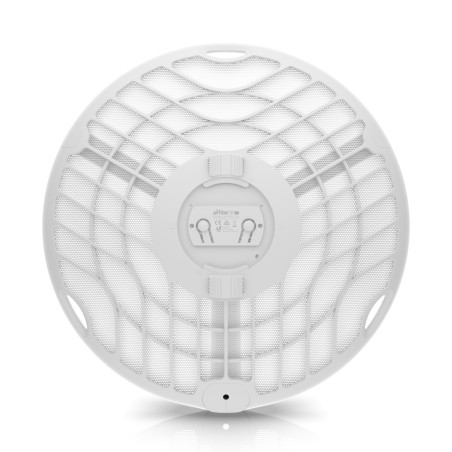

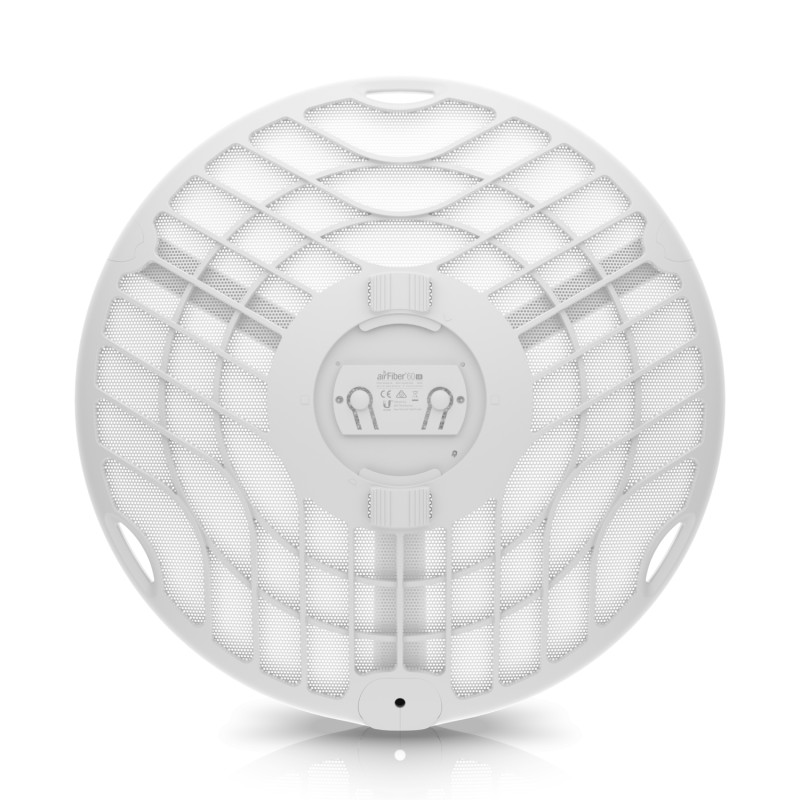

Ubiquiti airFiber PtP bridge &bull 60 GHz &bull 2 Gbps &bull 1x GbE &bull 12+ km &bull AF60-LR
Ubiquiti airFiber PtP bridge &bull 60 GHz &bull 2 Gbps &bull 1x GbE &bull 12+ km &bull AF60-LR
Ubiquiti airFiber PtP bridge &bull 60 GHz &bull 2 Gbps &bull 1x GbE &bull 12+ km &bull AF60-LR
60 GHz long-range radio system that is paired in PtP mode or connects to a Wave AP as a client in PtMP mode.
Highlights:
- 12+ km connection range
- 2 Gbit/s max. throughput
- (1) GbE RJ45 port
- Precision alignment bracket
- Integrated GPS and Bluetooth
Note. This product should be purchased in pairs to form connections.
Technical specifications:
| Mechanical | |
|---|---|
| Dimensions | Ø413 x 360 mm (Ø16.3 x 14.2") |
| Weight | Without bracket: 1.5 kg (3.3 lb) With bracket: 2.7 kg (6 lb) |
| Housing materials | Aluminium, UV-stabilized polycarbonate |
| Mounting material | Galvanized steel |

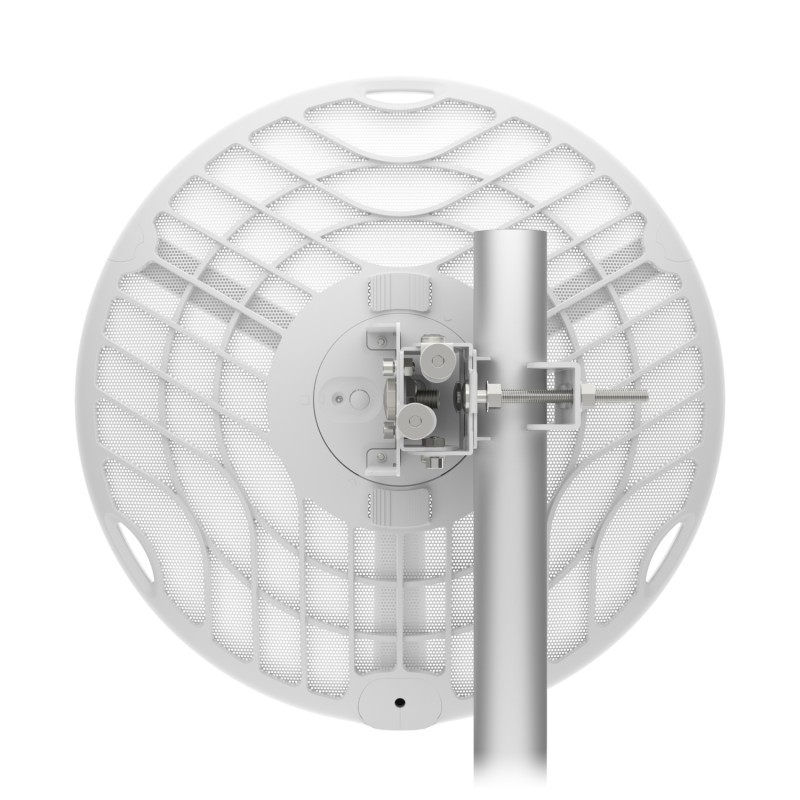

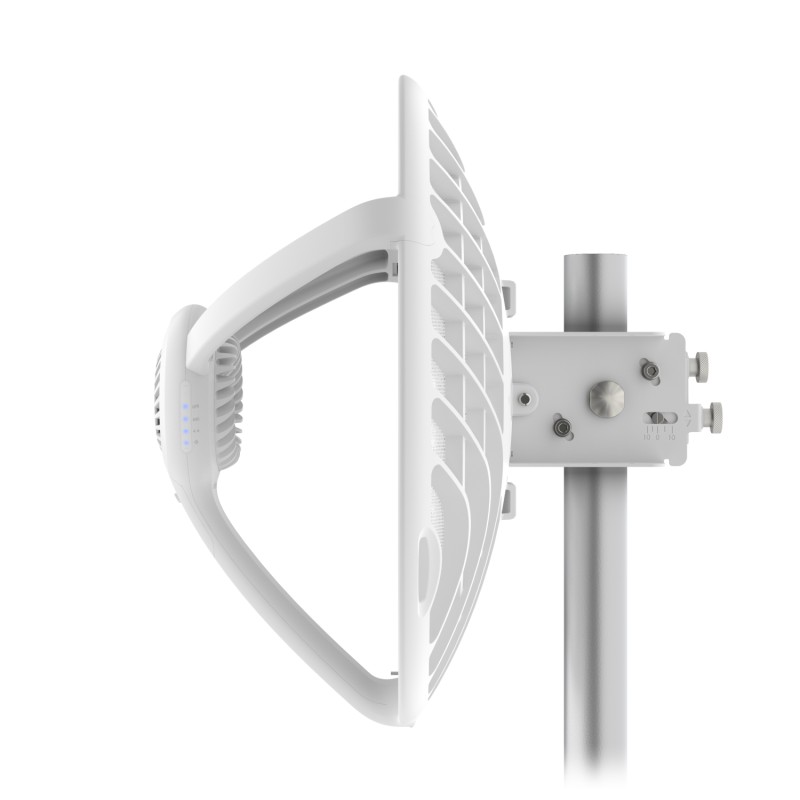

| Mounting kit | Precision alignment kit (included in scope of delivery) Pole compatibility: Ø25.4 to 76.2 mm (Ø1 to 3") |
| Wind load | 420 N at 200 km/h (94.4 lbf at 125 mph) |
| hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Network interface | (1) GbE RJ45 port |
| Max. Power consumption | 22W |
| Power method | Passive PoE 4-pair (1, 2+ 3, 6-) (4, 5+ 7, 8-) Passive PoE 2-pair (4, 5+ 7, 8-), only for 4454 V DC |
| Power supply | 48 V DC, 0.65 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 4454 V DC 2227 V direct current |
| GPS | Yes |
| HF connections | Internal |
| ESD/EMP protection | Air/contact: ± 24 kV |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| software | |
| Operating mode | PtP only |
| Ubiquiti-specific functions | Wave technology, discovery utility |
| network | Bridge mode |
| services | UISP, Ping watchdog, NTP client |
| Tools | Antenna alignment, detection utility, ping, route tracking, speed test |
| Software management | Bluetooth management for easy setup via the WEB user interface of the UISP app |
| Minimum software requirements | Any modern web browser/iOS or Android-based smartphone |
| System requirements | |
| Max. Throughput | 1.95 Gbit/s |
| Max. Range | 12+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 5771 GHz * Depending on the regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Polarization | Vertical linear |
| Beam width | Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |
| LEDs | |
| Power | Flashing white: booting process in progress. White: not connected to the UISP application. Blue: connected to the UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: reception of at least (4) GPS satellite signals |
| 60G | Blue: active connection |
