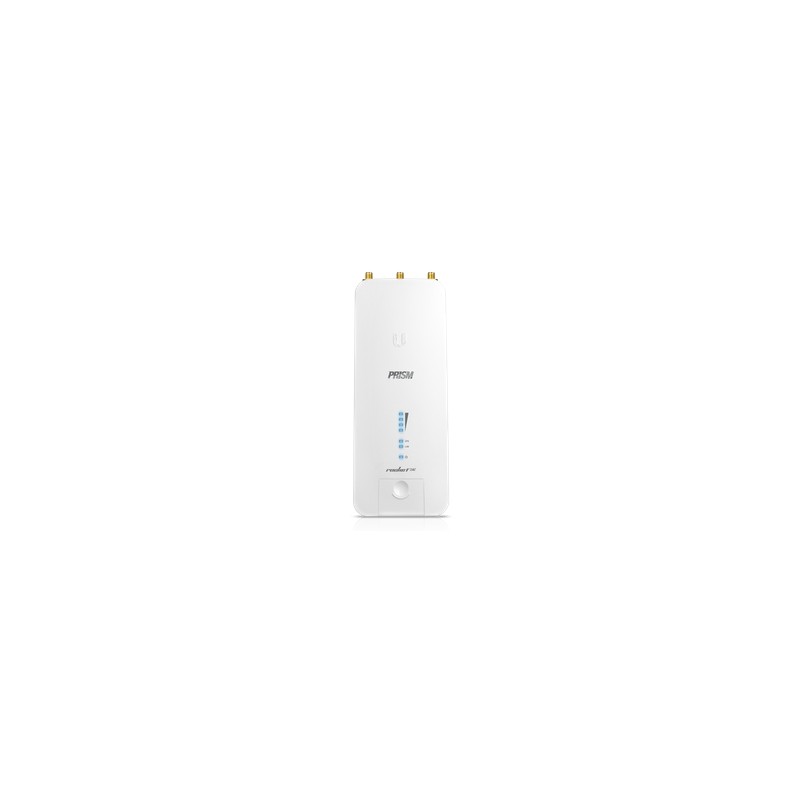

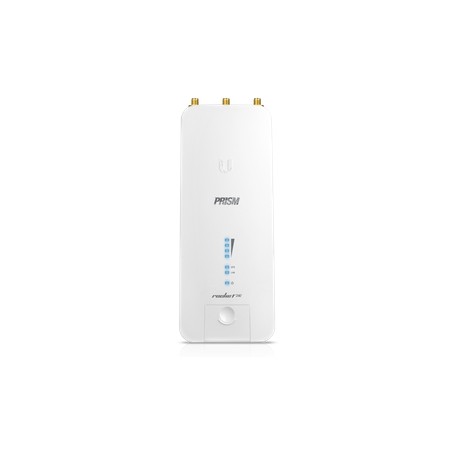

Ubiquiti Rocket R2AC-PRISM BaseStation
Ubiquiti Rocket R2AC-PRISM BaseStation
Ubiquiti Rocket R2AC-PRISM BaseStation
Full-band 2.4 GHz Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) base station. Provides data throughput of up to 330+ Mbps.
2.4 GHz airPrism active RF filter technology
150+ Mbps throughput
Capacity for more than 50 customers
Dedicated spectral analysis radio
IntegratedGPSsynchronization
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06") |
| Weight | 400 g (14.11 ounces) |
| Housing material | Die-cast aluminum |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Max. Power consumption | 9,5 W |
| HF connections | (2) RP-SMA (waterproof) (1) GPS (waterproof) |
| LEDs | Power, LAN, (4) Signal strength |
| ESD/EMP protection | Air/contact ± 24 kVt |
| Shock and vibration | ETSI300-019-1.4 |
| Operating temperature | -40 to 80 °C (-40 to 176 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| Operating frequency (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| USA/California | 2412 - 2462 MHz |
| Management radio (MHz) | |
| Worldwide | 5150 - 5250 MHz |
| USA/California | U-NII-3: 5725 - 5850 MHz |
